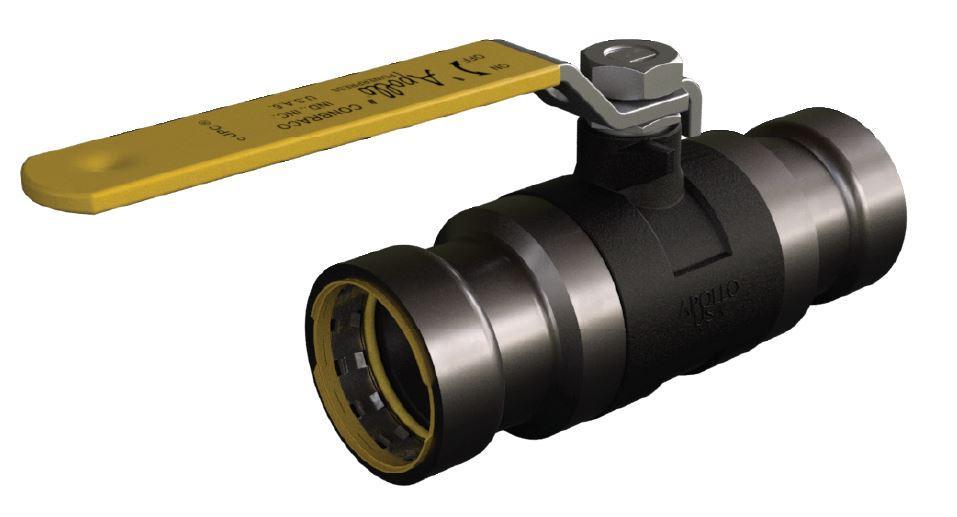

Apollo™, 89FVH4824, Ball Valve With Handle, Series: 89FV, 2 in Nominal, 200 psi Pressure, 40 to 302 deg F, Full Port, Media: Gas, 316 Stainless Steel Ball, 7.85 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Carbon Steel Body, Reinforced PTFE Seat/316 Stainless Steel Stem Trim, HNBR/PTFE/Graphite Softgoods, Domestic
| Series | : | 89FV |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 40 to 302 deg F |
| Port Type | : | Full |
| Media | : | Gas |
| Ball Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 3.68 in |
| Body Material | : | Carbon Steel |
| Trim Material | : | Reinforced PTFE Seat/316 Stainless Steel Stem |
| Softgoods Material | : | HNBR/PTFE/Graphite |
| Domestic/Import | : | Domestic |
- Patented visual inspection ring and indicator
- Adjustable stem packing
- Fast, reliable, economical press installation
- Ridgid® and Milwaukee press tool compatible
- Leak Before Press® technology
- Blow-out proof stem
- Corrosion resistant materials
- 100% factory tested
- Silicone free assembly
- HNBR O-ring, PTFE body seal and graphite stem packing
Catalog
The Apollo™ POWERPRESS 89FV Gas Ball Valve is ideal for installation in compressed air and fuel gas applications. This valve design significantly reduces installation time and helps maintain a clean working environment. The Apollo™ POWERPRESS is designed for steel pipe, SCH/STD 10 to 40, as defined by ASTM A53, A106, A135 and A795 standards.
