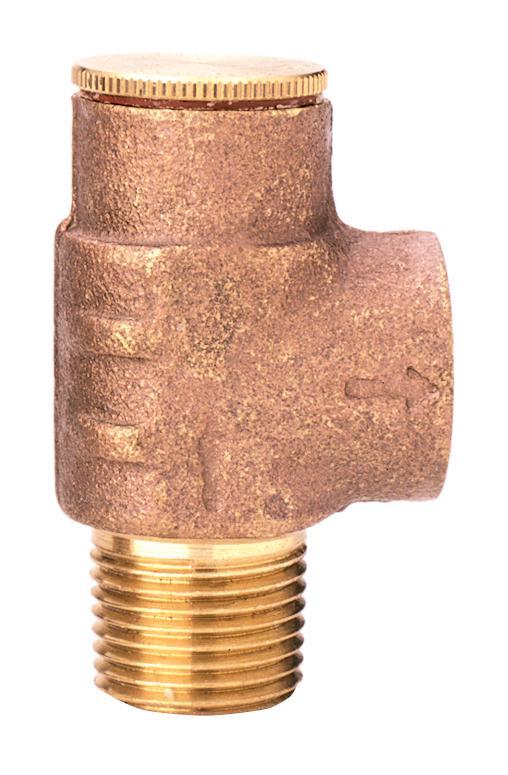

The Zurn® Wilkins P1550XL Pressure Relief Valve is installed on cold water service lines to protect against excessive pressure buildup. These devices are for pressure only and should be used in conjunction with other temperature limiting devices.
Zurn® Wilkins Pressure Relief Valve, Series: P1550XL, 3/4 x 1/2 in Nominal, MNPT x FNPT, 175 psi, 210 deg F, Media: Water, Cast Bronze Body, Stainless Steel Spring Trim, 2-5/16 in H
| Series | : | P1550XL |
| Nominal Size | : | 3/4 x 1/2 in |
| End Style | : | MNPT x FNPT |
| Pressure Rating | : | 175 psi |
| Temperature Rating | : | 210 deg F |
| Media | : | Water |
| Body Material | : | Cast Bronze |
| Trim Material | : | Stainless Steel Spring |
| Dimensions | : | 2-5/16 in H |
- Fixed setting pressure relief valve
- Also suitable for static relief, low capacity pump relief, passive solar, thermal expansion relief
- Suitable for thermal expansion relief
- 75 psi factory set
