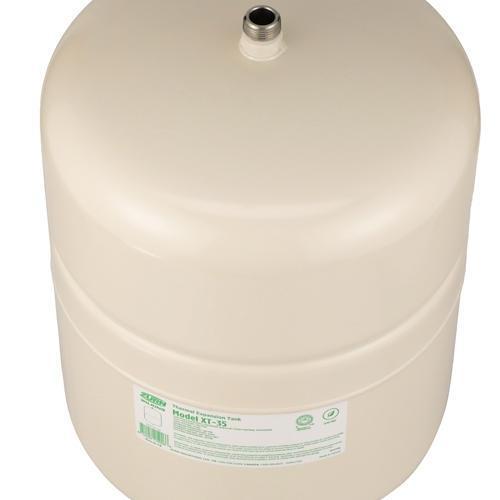

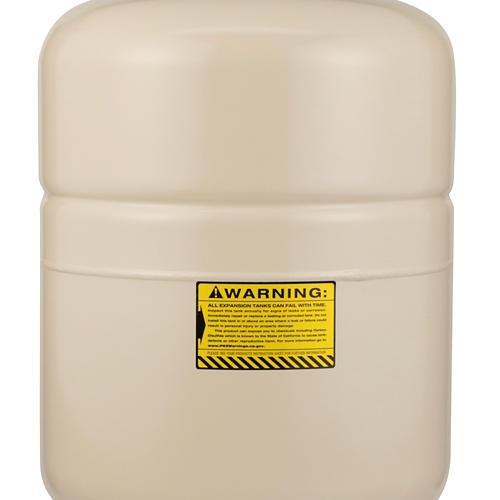

The Zurn® Wilkins XT Thermal Expansion Tank is designed for installation on potable water lines between the backflow preventer or pressure reducing valve and the water heater to protect against water thermal expansion.
Zurn® Wilkins Thermal Expansion Tank, Series: XT Series, 9.2 gal Tank Volume, Acceptance Volume: 4.25 gal, 150 psi, ASME Yes/No: No, 12-1/2 in Dia, 17-1/4 in Height, Carbon Steel, 40 psi Pre-Pressure Rating, 200 deg F Maximum Temperature, MNPT, 3/4 in, Epoxy Coated
| Series | : | XT Series |
| Tank Volume | : | 9.2 gal |
| Acceptance Volume | : | 4.25 gal |
| Pressure Rating | : | 150 psi |
| ASME Yes/No | : | No |
| Diameter | : | 12-1/2 in |
| Height | : | 17-1/4 in |
| Material | : | Carbon Steel |
| Pre-Pressure Rating | : | 40 psi |
| Maximum Temperature | : | 200 deg F |
| Connection Type | : | MNPT |
| Connection Size | : | 3/4 in |
| Finish | : | Epoxy Coated |
- Diaphragm style tank for residential applications
- Steel shell protected with polypropylene liner
- Pre-charge is field adjustable
