Powers™ 6550033 42304
Send Print

Powers™ 6550033

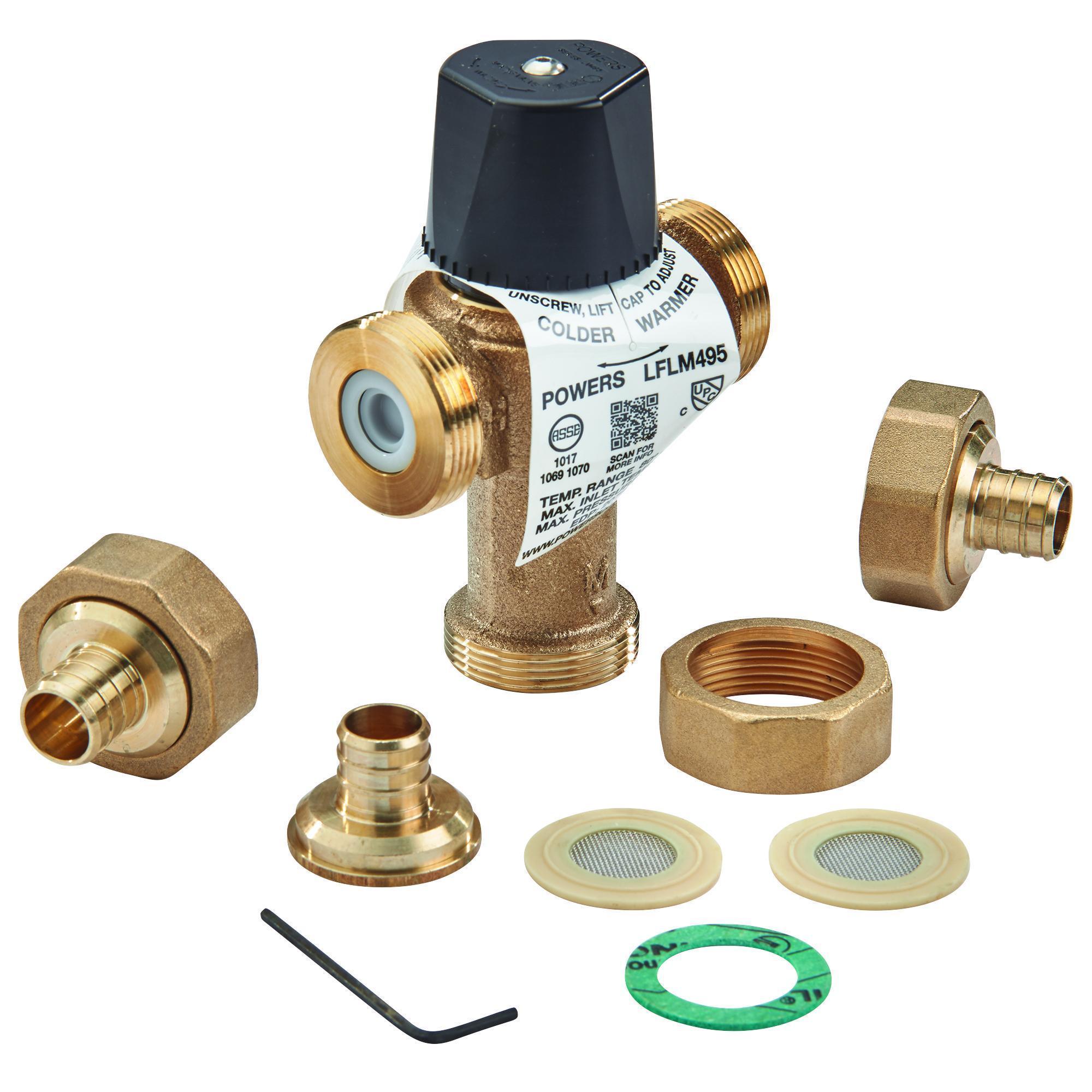

Powers™ HydroGuard® 6550033 LFLM495 Thermostatic Mixing Valve, 1/2 in Nominal, Union Crimp PEX End Style, 125 psi Pressure, 12 gpm Flow Rate, Solid Brass Body, Domestic

  • MPN: 6550033
  • TPN: 42304
  • UPC: 686408614478
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Powers™ HydroGuard® Thermostatic Mixing Valve, Series: LFLM495, 1/2 in Nominal, Union Crimp PEX, 125 psi, 5 to 200 deg F, 12 gpm, Media: Water, Locking Handle Actuator, Solid Brass Body, 5-1/4 in L x 5-9/16 in H, Domestic

Series      :      LFLM495
Nominal Size      :      1/2 in
End Style      :      Union Crimp PEX
Pressure Rating      :      125 psi
Temperature Rating      :      5 to 200 deg F
Media      :      Water
Actuator Type      :      Locking Handle
Body Material      :      Solid Brass
Dimensions      :      5-1/4 in L x 5-9/16 in H
Domestic/Import      :      Domestic
  • Union connections for easy maintenance
  • Polysulfone plunger for extended life
  • Corrosion resistant internal components
  • Integral checks and inlet screens to prevent cross-flow and contamination
  • Solid brass construction for enhanced durability
  • Temperature adjustment handle has a locking mechanism to prevent tampering
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Powers_6550033_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Powers_6550033_Specification_Sheet.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Powers_6550038_Catalog.pdf

Designed for individual and multiple lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. The Series LFLM495 features Powers advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross-flow and contamination. Rugged construction features solid Lead Free brass body and corrosion-resistant internal components ensuring years of dependable, trouble-free service. Temperature adjustment handle is simple to adjust and has a locking mechanism to prevent tampering. The HydroGuard® Series LFLM495 is ASSE 1069 and 1070 listed and CSA B125 certified.
