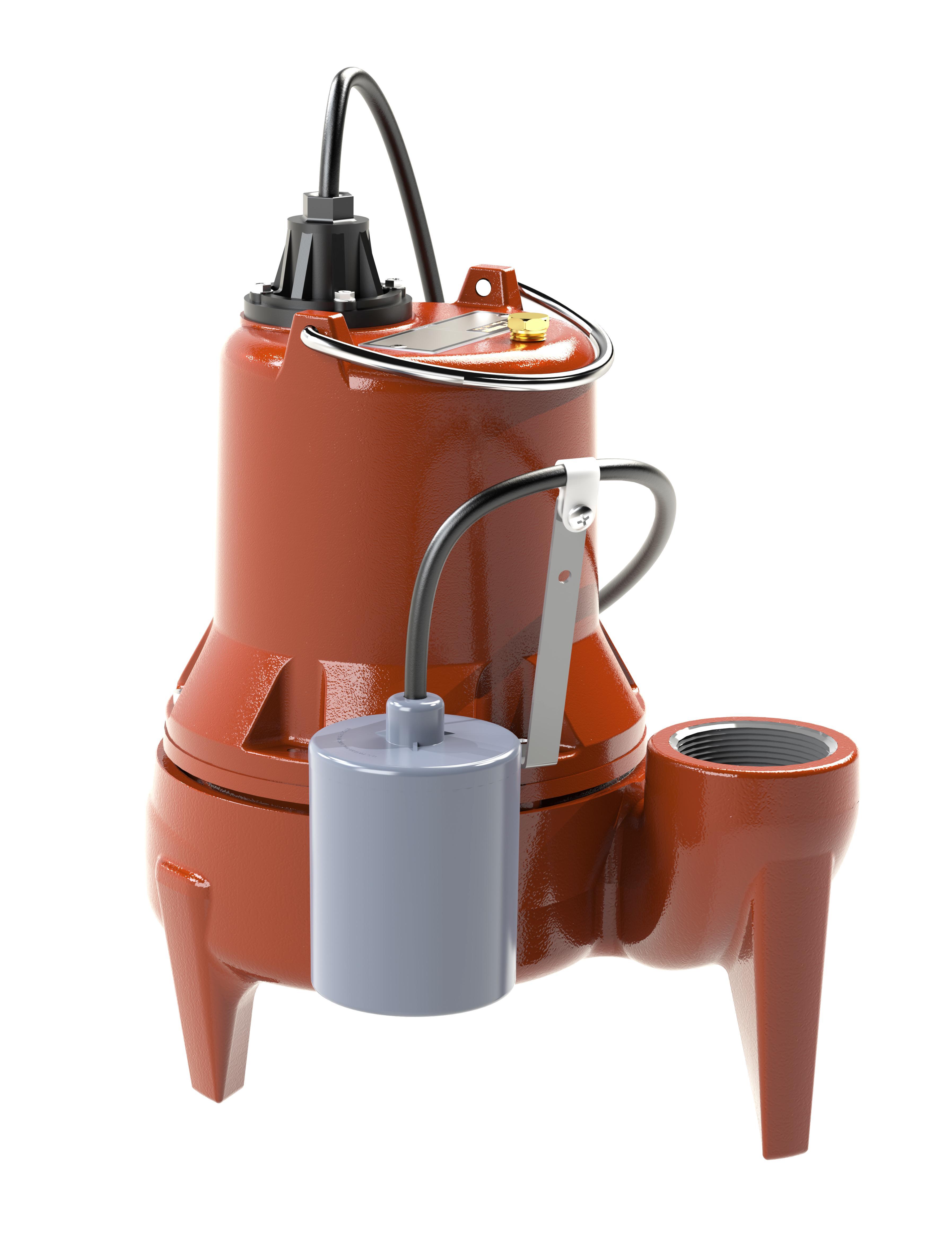

Liberty's LE50 series cast iron sewage pump is a commercial grade workhorse for residential and light commercial applications. Its efficient 1/2 hp motor with permanently lubricated bearings, stainless steel fasteners and quick-disconnect power cord design make this a favorite choice among professionals. Other features include 2 in solids-handling ability and a shut-off head of 25 ft. Optional vertical float switch model available in 115 V.
Liberty Pumps® Submersible Sewage Pump, Series: LE50, 160 gpm Flow Rate, 2 in FNPT Outlet, 24 ft Maximum Head, 1/2 hp, 115 VAC, 12 A Full Load/22.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SJTW 10 ft Cord, 1 Service Factor, Thermoplastic 2-Vane Semi-Open Impeller, Rail System Mounting, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 11-1/2 in W x 14 in H Dimensions, Import
|
Series
|
:
|
LE50
|
|
Outlet Size
|
:
|
2 in FNPT
|
|
Maximum Head
|
:
|
24 ft
|
|
Horsepower
|
:
|
1/2 hp
|
|
Voltage Rating
|
:
|
115 VAC
|
|
Motor Speed
|
:
|
1725 rpm
|
|
Frequency Rating
|
:
|
60 Hz
|
|
Flow Rate
|
:
|
160 gpm
|
|
Cord Type
|
:
|
SJTW 10 ft
|
|
Impeller Type
|
:
|
Thermoplastic 2-Vane Semi-Open
|
|
Mounting Type
|
:
|
Rail System
|
|
Service Factor
|
:
|
1
|
|
Temperature Rating
|
:
|
221 deg F Thermal Overload
|
|
Bearing Type
|
:
|
Ball
|
|
Amperage Rating
|
:
|
12 A Full Load/22.5 A Locked Rotor
|
|
Material
|
:
|
Cast Iron
|
|
Dimensions
|
:
|
11-1/2 in W x 14 in H
|
|
Domestic/Import
|
:
|
Import
|
- Heavy cast iron construction
- Oil filled, thermally protected motor
- Permanently lubricated ball bearings
- Stainless steel fasteners and rotor shaft
- Quick connect 10 ft power cord
- Two wane, corrosion-resistant HYTREL® impeller
-
