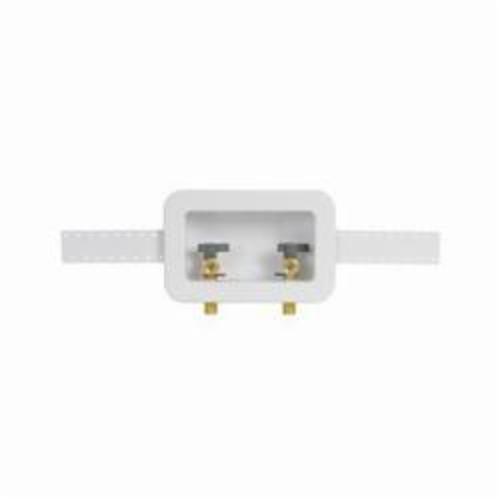

Oatey®'s Centro II Washing Machine Box is used for commercial and residential washing machine applications. Oatey®'s Centro WMOB can be mounted with the valves on the top or bottom. Oatey®'s WMOB comes with two support brackets and two piece uninstalled valves.

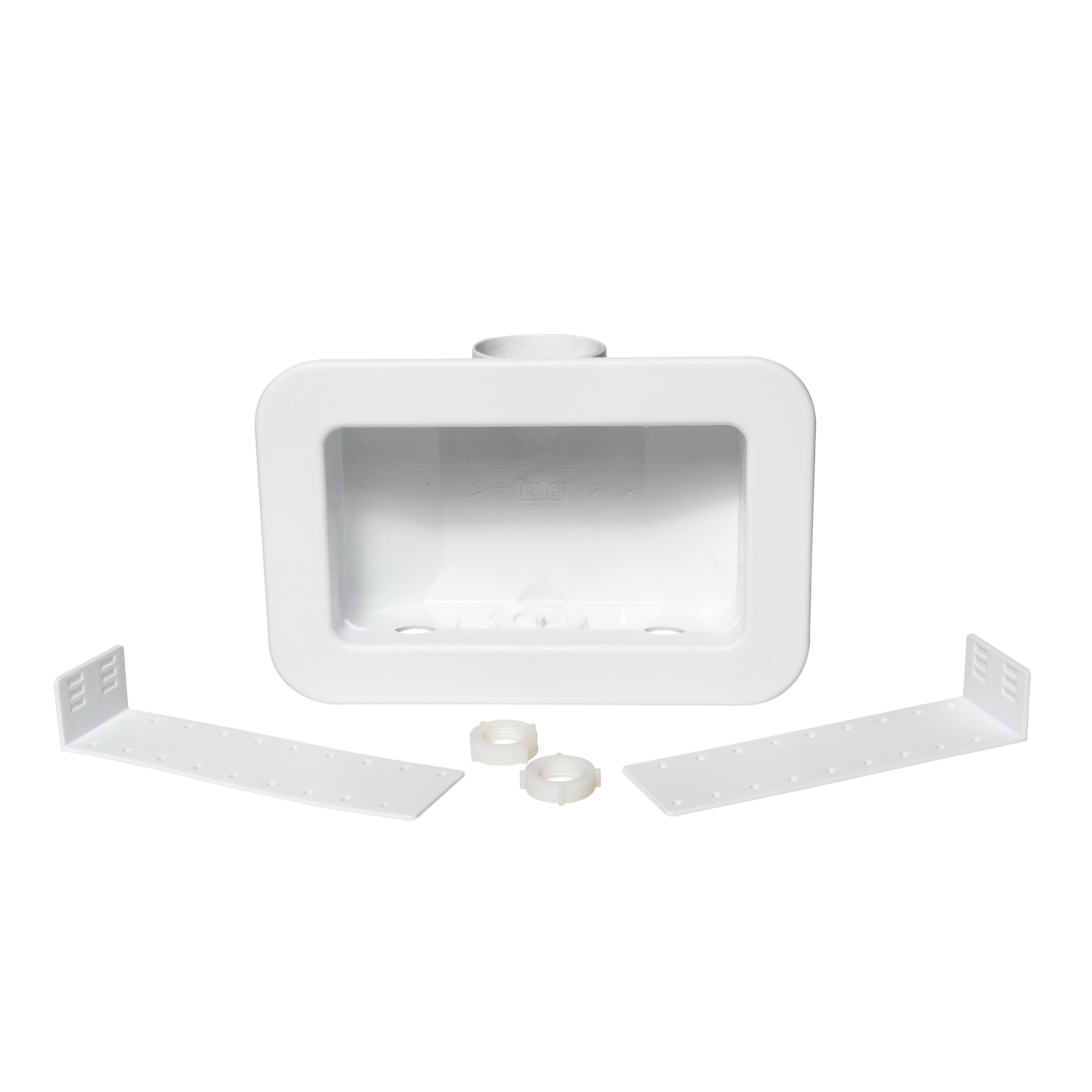

Harvey® Outlet Box, Plain, Series: Centro II, For Use With: Washing Machine, PVC, 8 in W x 3 in D x 4-3/4 in H, Domestic
| Type | : | Plain |
| Series | : | Centro II |
| Suitable For Use With | : | Washing Machine |
| Material | : | PVC |
| Dimensions | : | 8 in W x 3 in D x 4-3/4 in H |
| Domestic/Import | : | Domestic |
- Compact design is perfect for tight space installation
- Box is constructed of rigid and durable PVC
- Knockout drain caps are located on top and bottom of box to accommodate multiple mounting options
- 2 in drain hubs
- Quarter turn valves come uninstalled or installed and can be mounted on top or bottom of box
- Two support brackets made of high impact polystyrene to secure the box to the studs
- Mounting holes enable box to be secured directly to stud on either side
- Paintable faceplate gives a clean and finished look
- Takes up less space and will fit almost anywhere
- Brackets and faceplate made of HIPS
- Two knockout drain caps
- Mountable with valves on top or bottom
- 2 in socket hubs
- 10 in W x 6-3/4 in H faceplate
- WMOB made of PVC
