Oatey Fire-Rated Ice Maker Outlet Boxes can be used in applications requiring supply valves recessed into a fire-rated wall. Unit shall allow for the mounting of supply lines from top or bottom on the left or right side. Unit shall be available with 1/4 turn brass ball valves in configurations with and without water hammer arresters listed to ASSE 1010. Adjustable metal support bracket shall be installed on top and bottom of unit for support in stud wall.

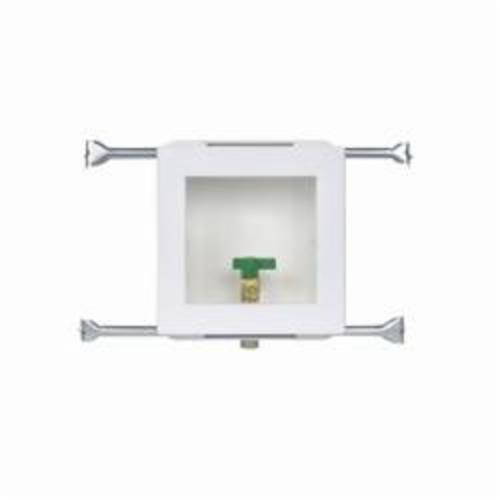

Oatey® Ice Maker Outlet Box, Fire-Rated, For Use With: 1/4 Turn CPVC Brass Low Lead Ball Valve, 5-9/10 in W x 5-4/5 in H x 3-3/4 in D
| Type | : | Fire-Rated |
| Suitable For Use With | : | 1/4 Turn CPVC Brass Low Lead Ball Valve |
| Dimensions | : | 5-9/10 in W x 5-4/5 in H x 3-3/4 in D |
- Warnock Hersey certified, for 1-hour and 2-hour fire-rated walls
- Box made of bulk molding compound (BMC) with UL-classified insulating material

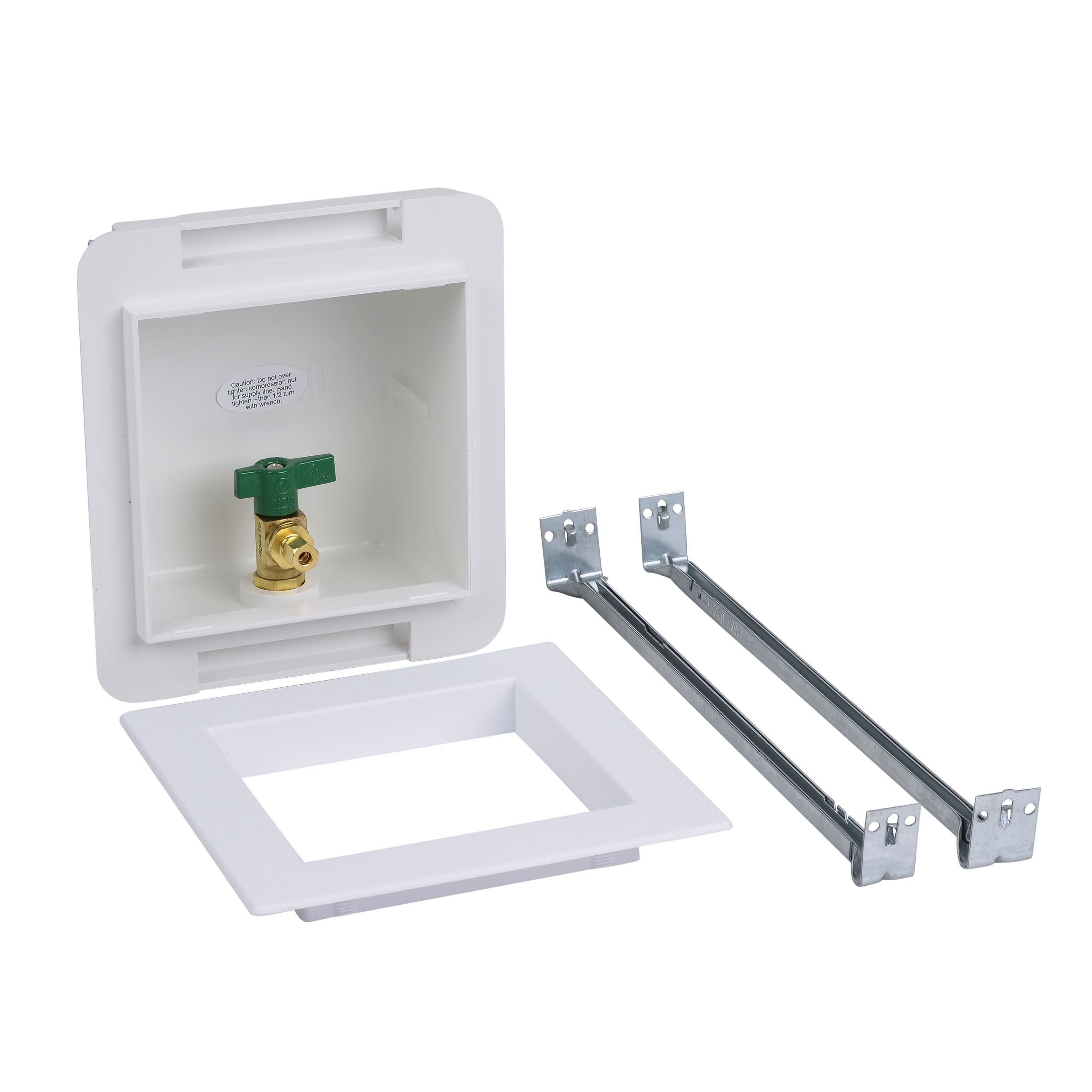

- Adjustable metal mounting brackets
- 8-1/8 in width x 8-1/16 in height faceplate
Specification Sheet
