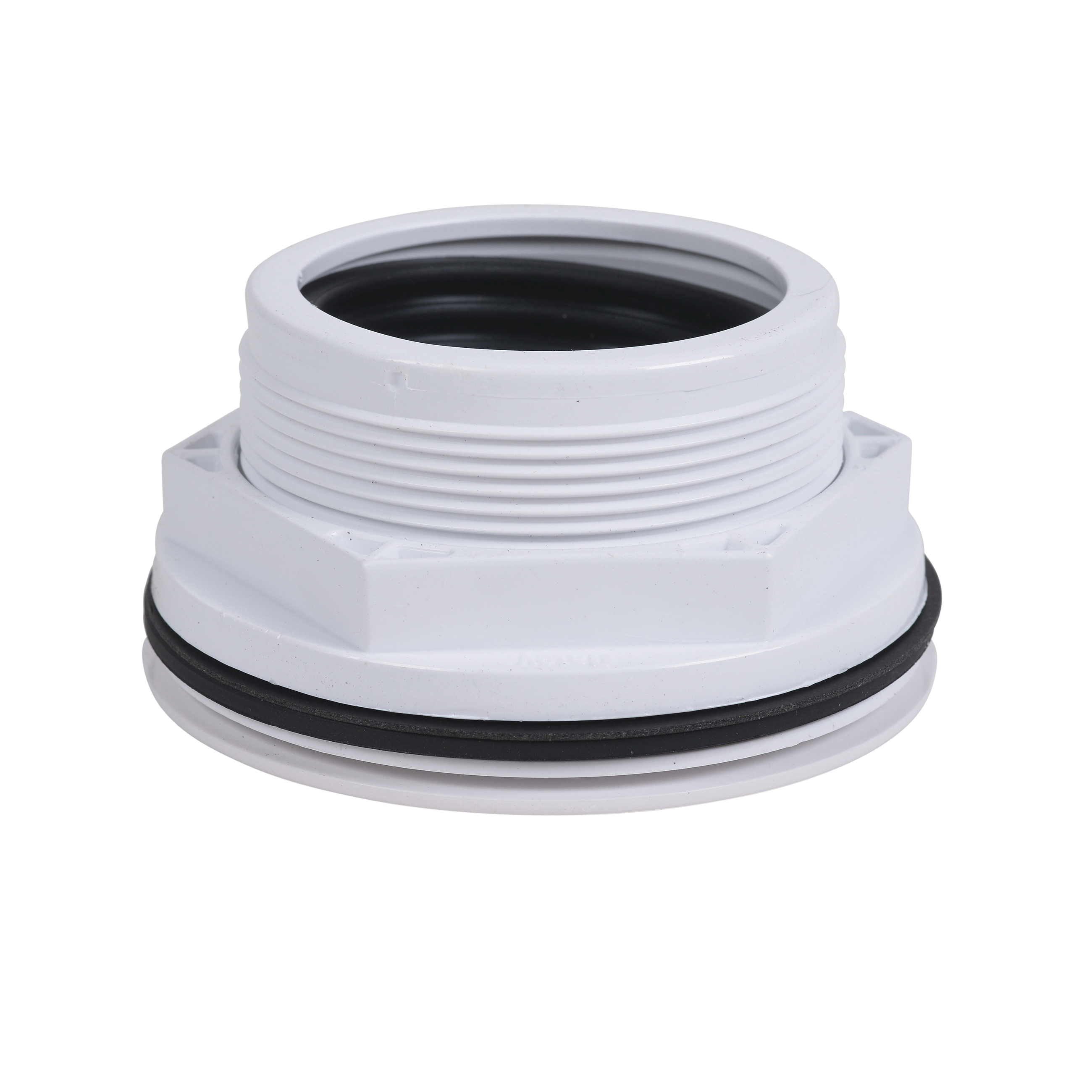

Oatey® Shower Drain, Series: 101PNC, 2 in Nominal, Push-On Connection, PVC Drain, Domestic

• Drain is fixed to the drain pipe from above the shower base

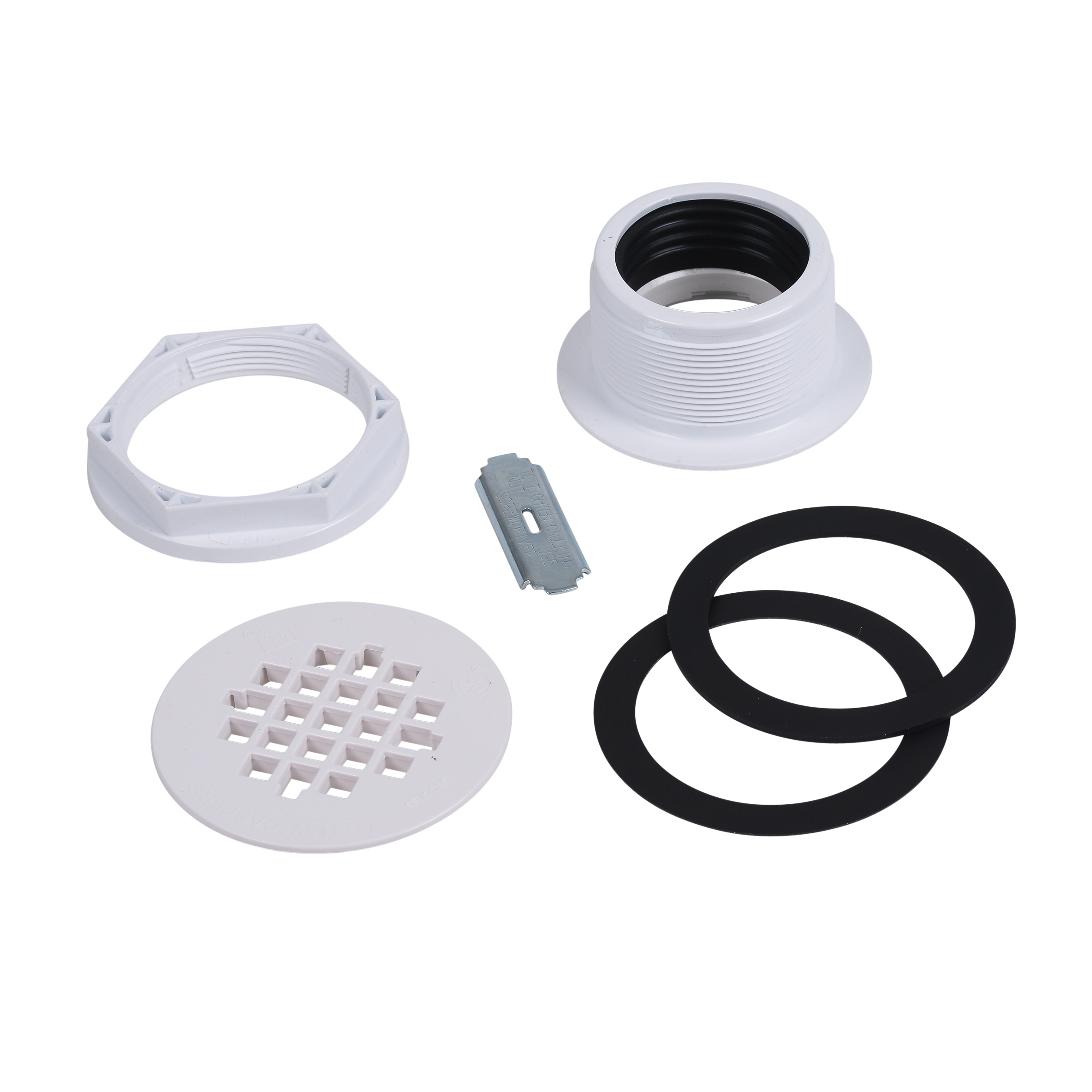

• Drain body is sealed to the shower base with a fiber and rubber washer
• 2 in SCH 40/STD DWV pipe is secured with a mechanically compressed gasket that does not require caulking
• Drain top accommodates 4-1/4 in universal snap-tite strainers
• Can be used with 1-1/2 in SCH 40/STD DWV pipe and 1-1/2 in or 2 in copper DWV pipe when caulking gasket is replaced
• Fiber and rubber gasket provide a tight seal to the base

• Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_31318_Catalog.pdf
• Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_42099_Manual.pdf
• Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_42099_Specification_Sheet.pdf

Oatey® 101 PNC Series Brass and Plastic No-Calk Shower Drain is designed to seal the drain body to a preformed shower stall base with a fiber and rubber washer.
