Charlotte PVC 00100 2000 50572
Send Print

Charlotte PVC 00100 2000

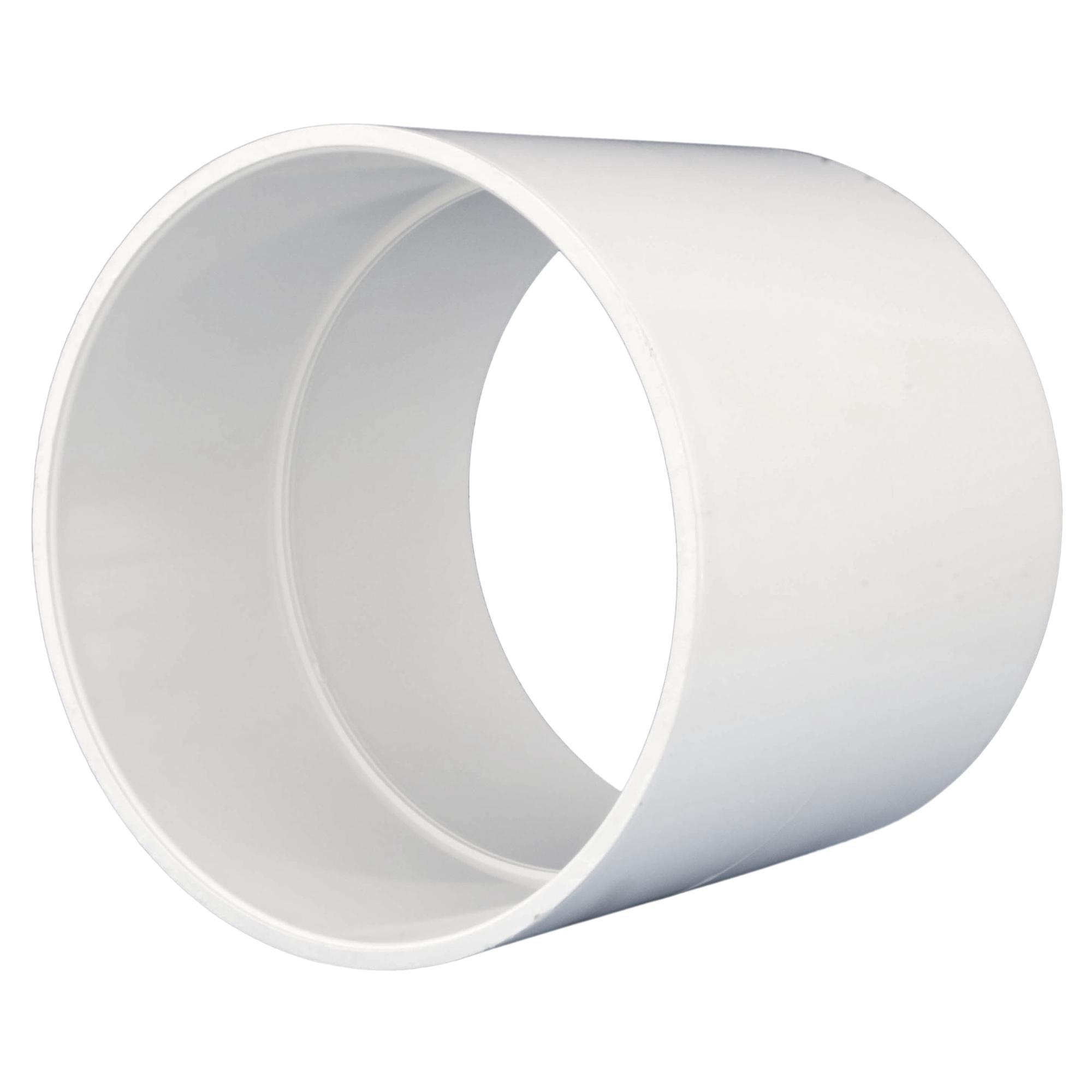

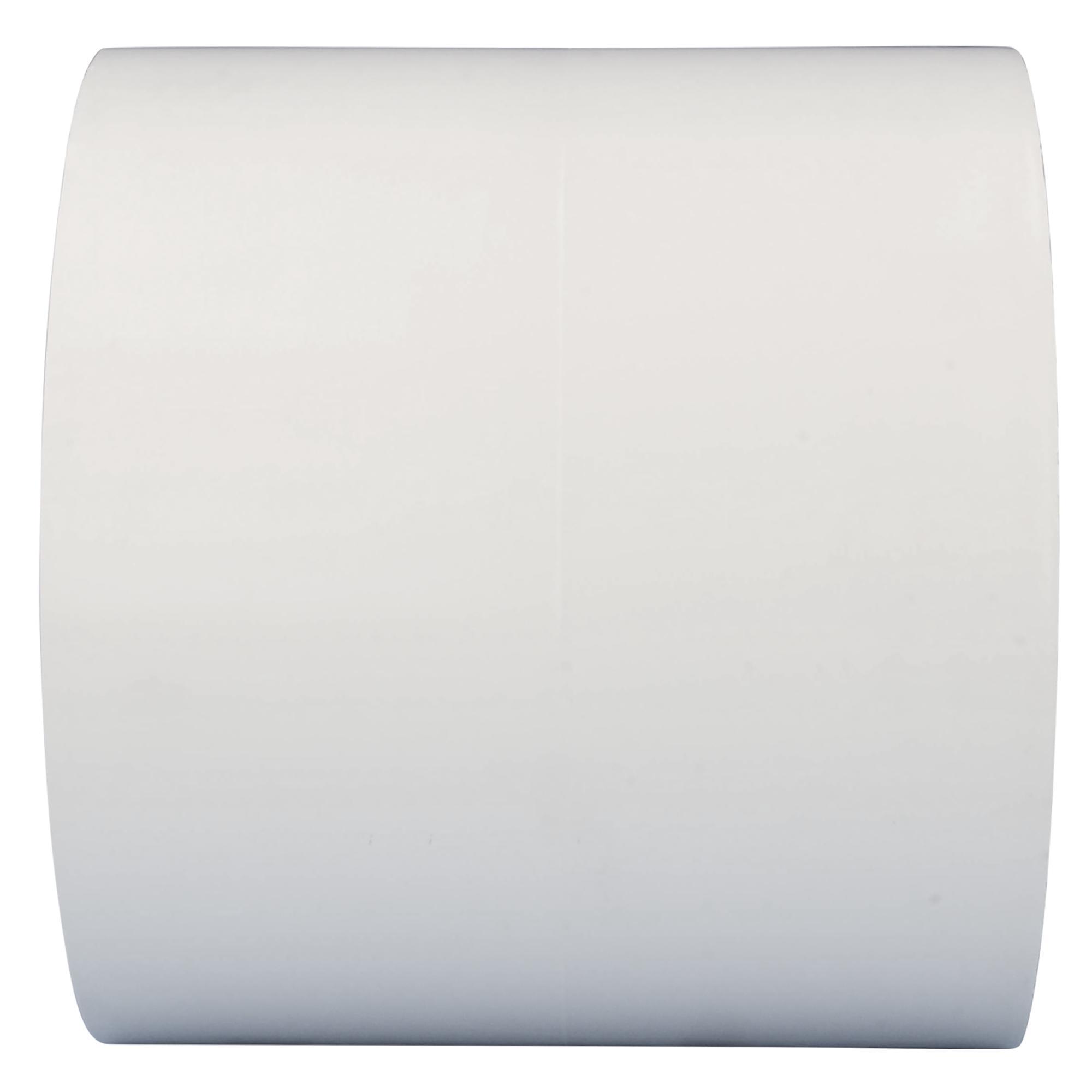

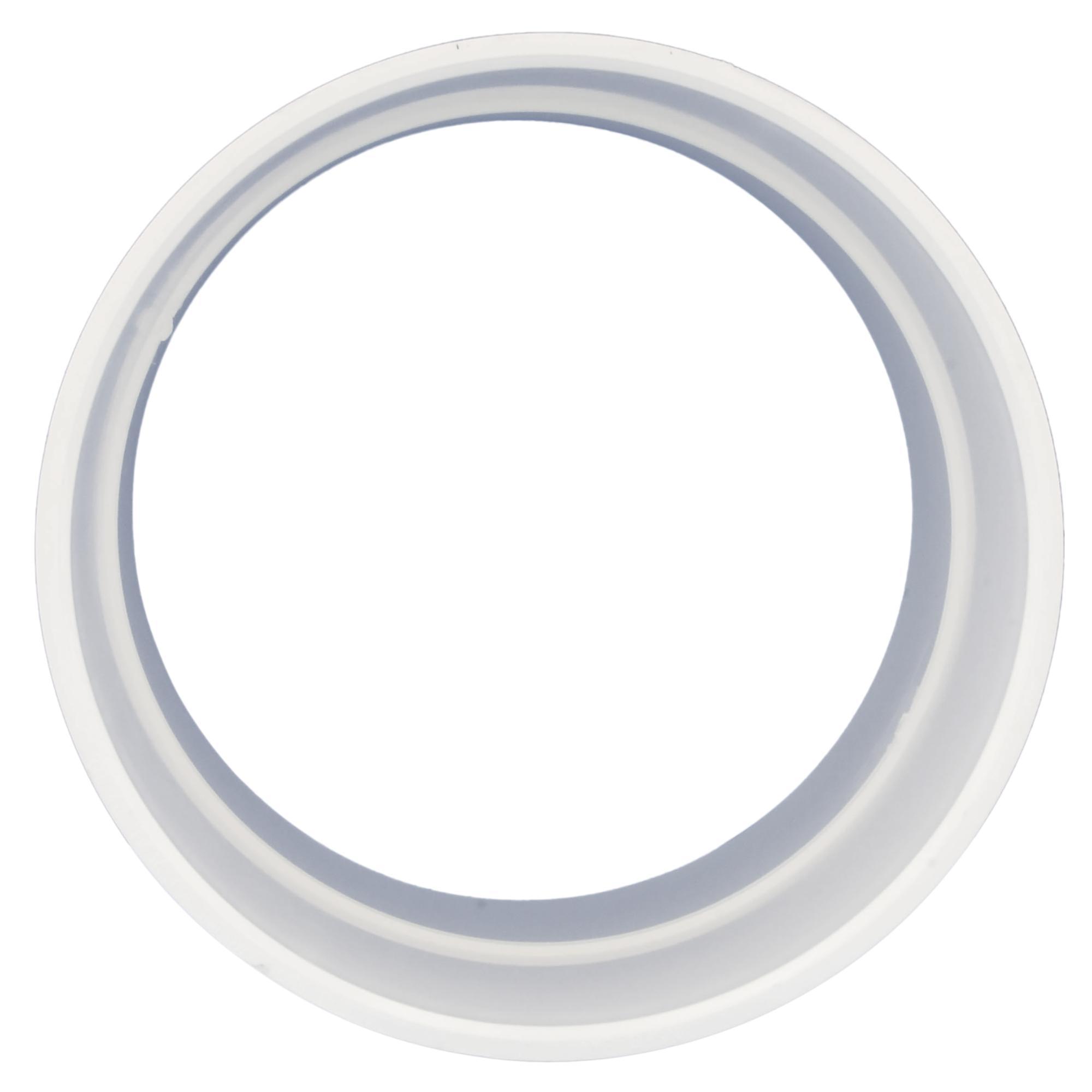

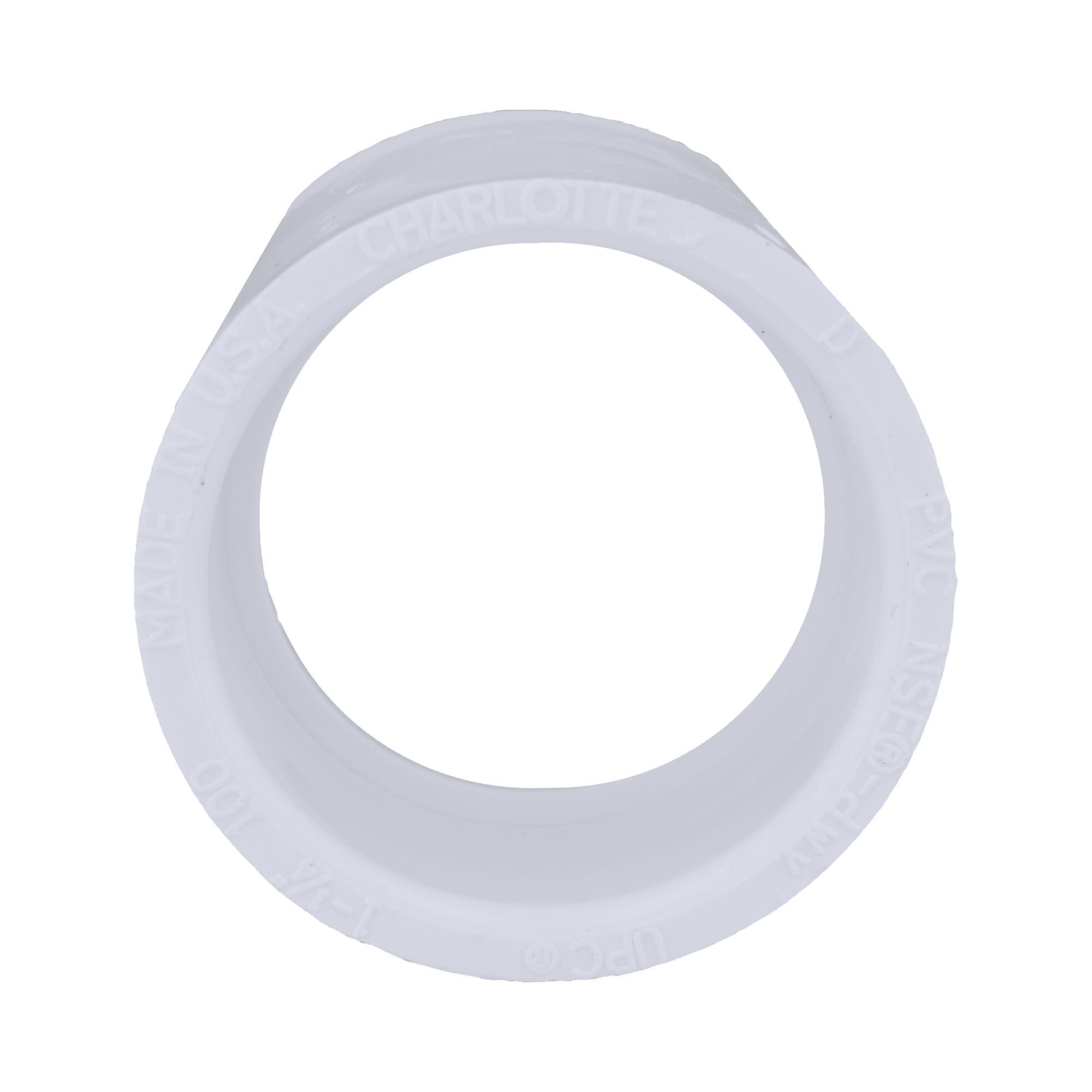

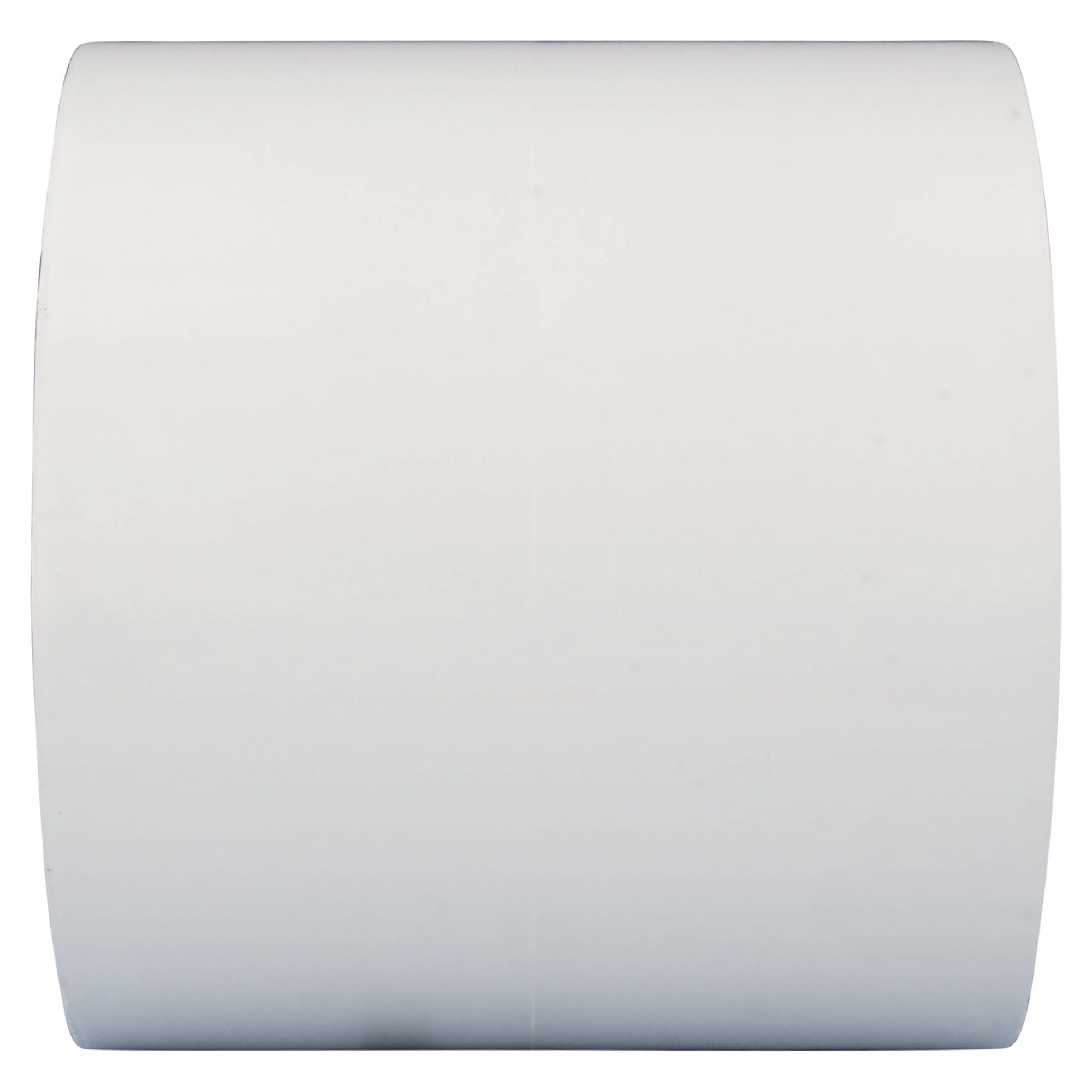

Charlotte PVC 00100 2000, 10 in nominal, Hub end style, SCH 40/STD, PVC, Domestic

  • MPN: PVC 00100 2000
  • TPN: 50572
  • UPC: 611942031955
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

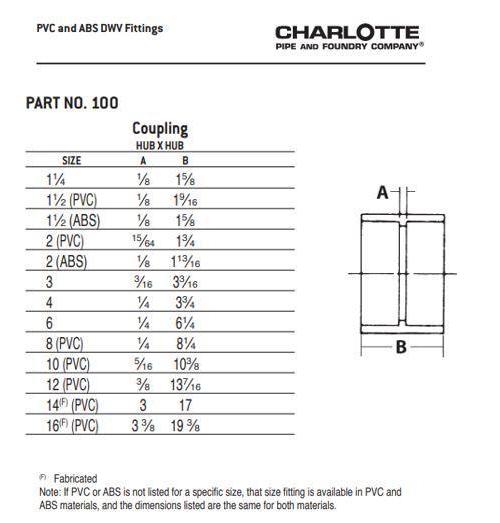

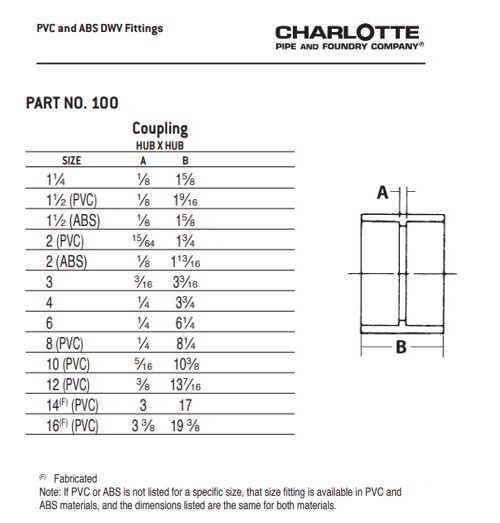

Charlotte PVC 00100 2000, Coupling Fitting/Connector, 10 in Nominal, Hub End Style, 10-3/8 in Length, SCH 40/STD Schedule, 150 psi Pressure, PVC, White, 140 deg F, Domestic/Import: Domestic

Fitting/Connector Type      :      Coupling
Nominal Size      :      10 in
End Style      :      Hub
Length      :      10-3/8 in
Schedule Rating      :      SCH 40/STD
Pressure Rating      :      150 psi
Material      :      PVC
Color      :      White
Temperature Rating      :      140 deg F
Domestic/Import      :      Domestic
  • Not intended for pressure use
  • For use where systems will not exceed 140 deg F
  • Requires no special tools for cutting and is installed by solvent cementing
  • Easy to install
  • PVC is lightweight
  • pdf SDS https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CONNECTITE_CTT_00100_0800_SDS.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Charlotte_ABS_00100_0500_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Charlotte_ABS_00100_0500_Installation_Manual.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Charlotte_ABS_00100_0500_Warranty.pdf

PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140° F. PVC is lightweight and
