PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140 deg F. PVC is lightweight and easy to install. They require no special tools for cutting, and can be installed with solvent cementing, threading, flanging, and roll-grooved joining. All Charlotte Pipe products are manufactured in the USA.

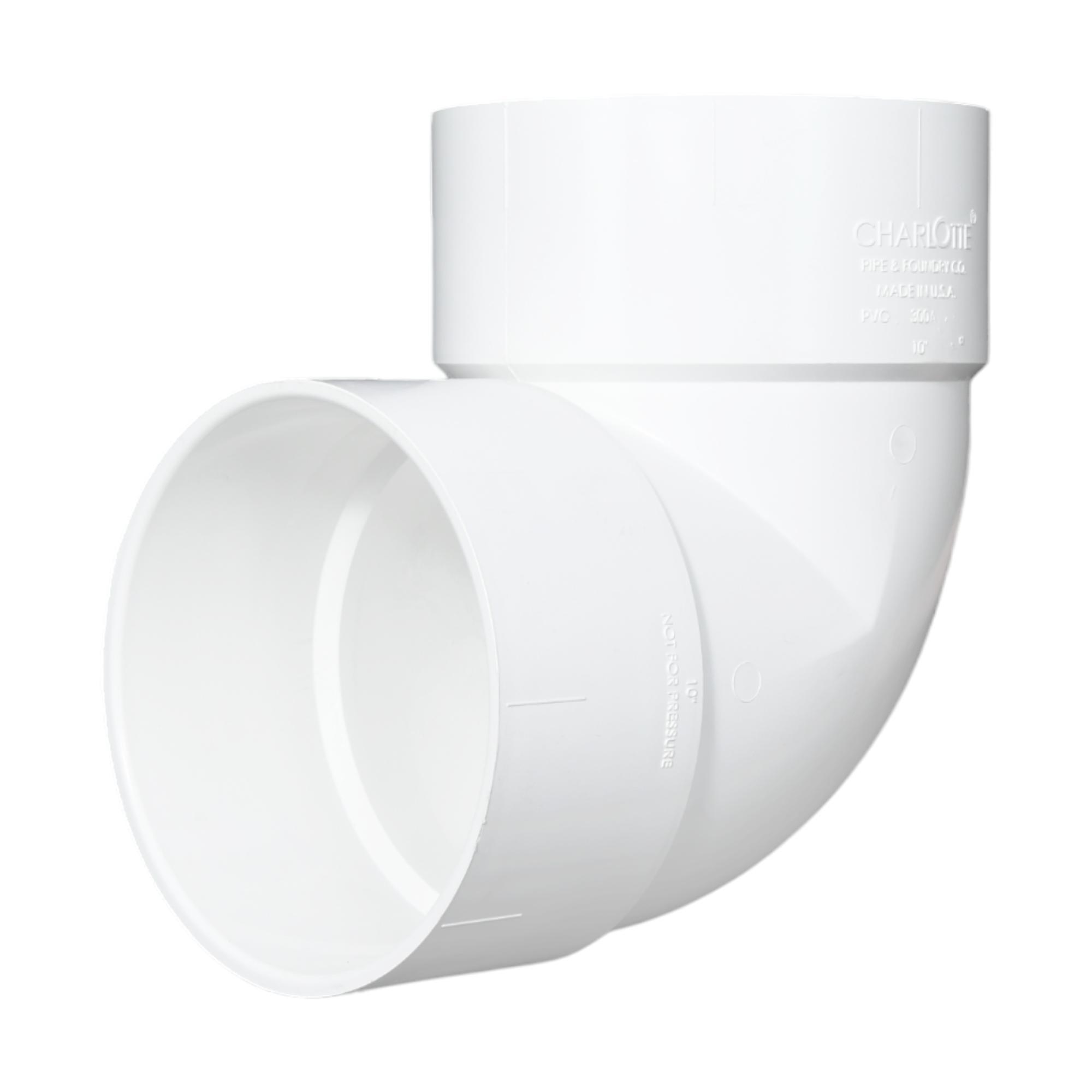

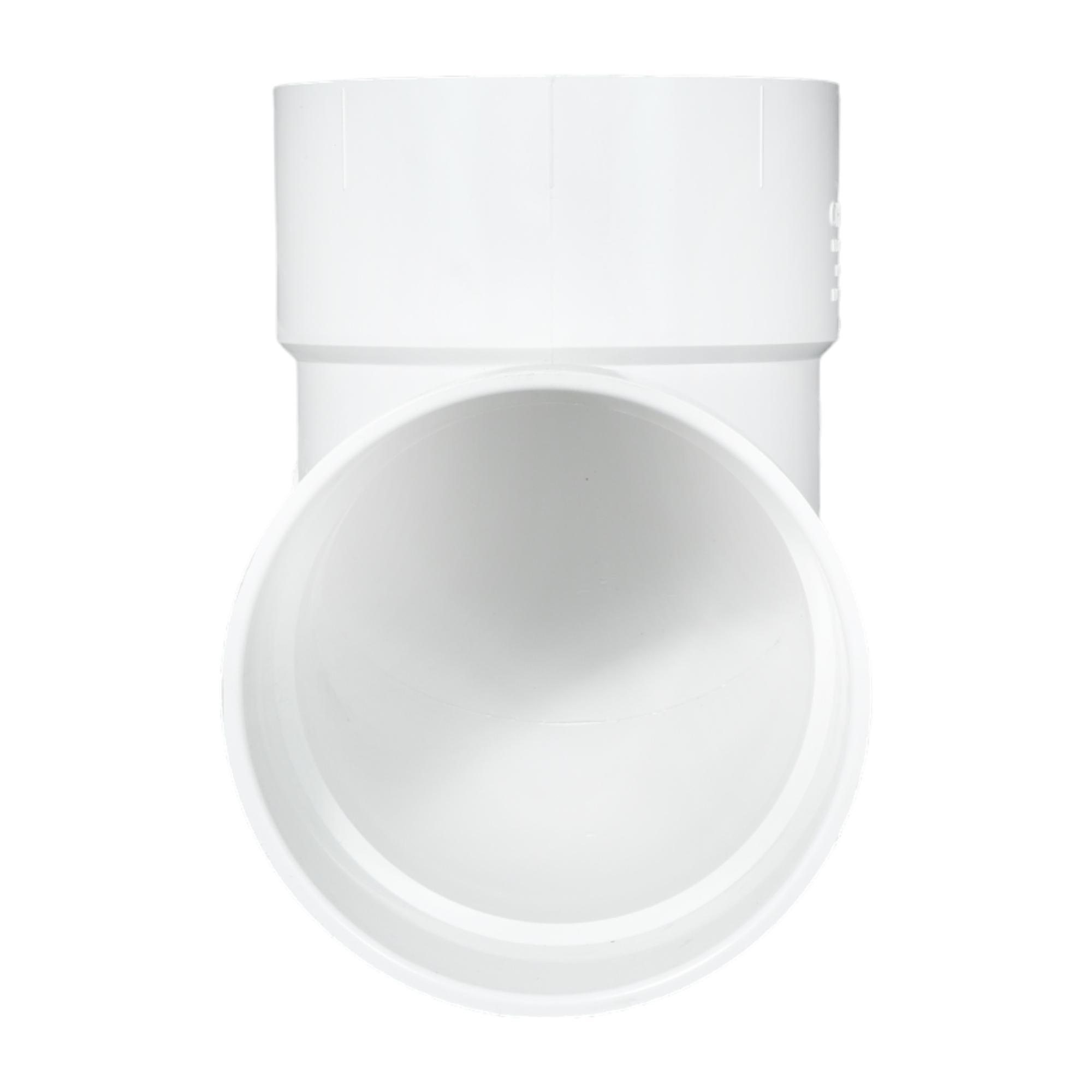

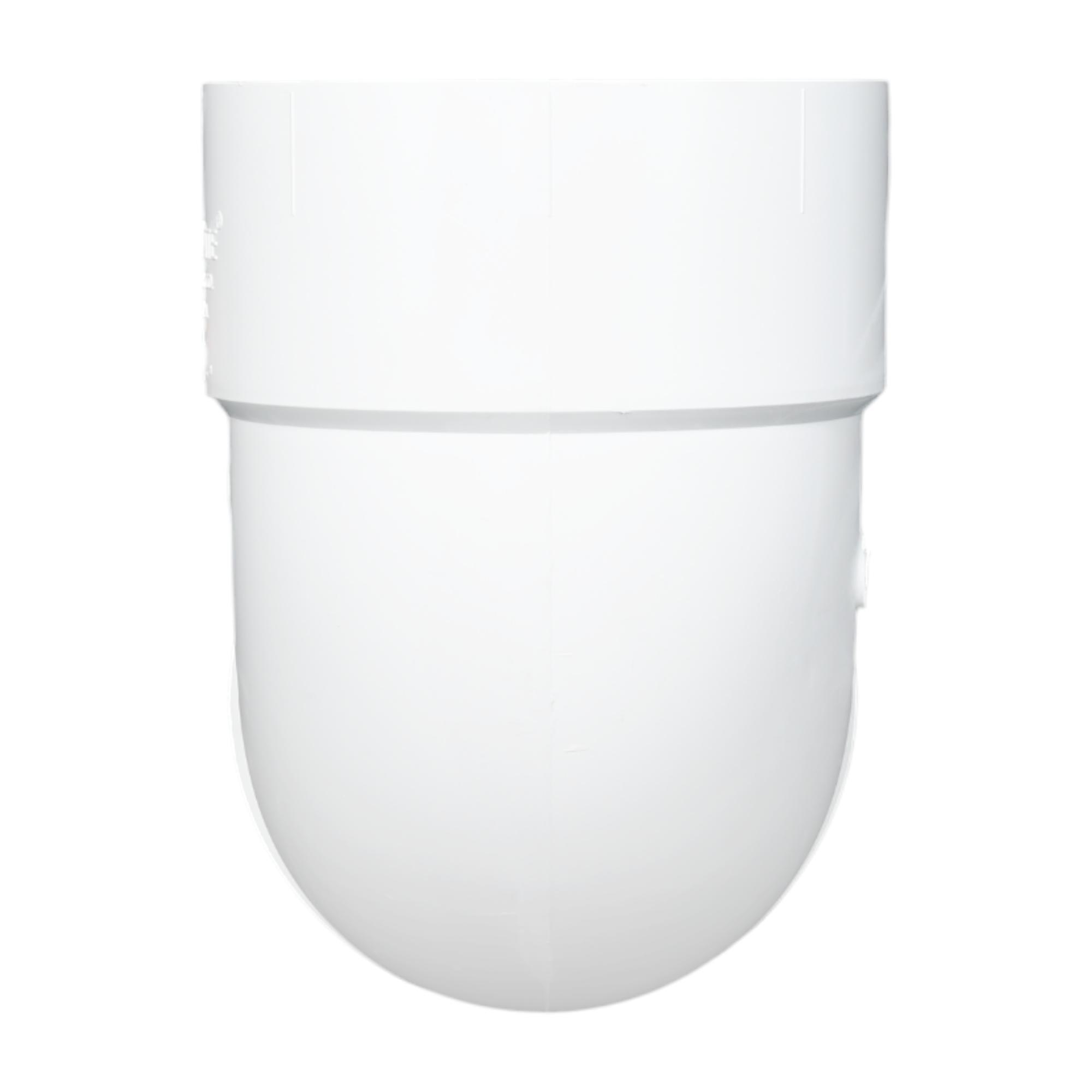

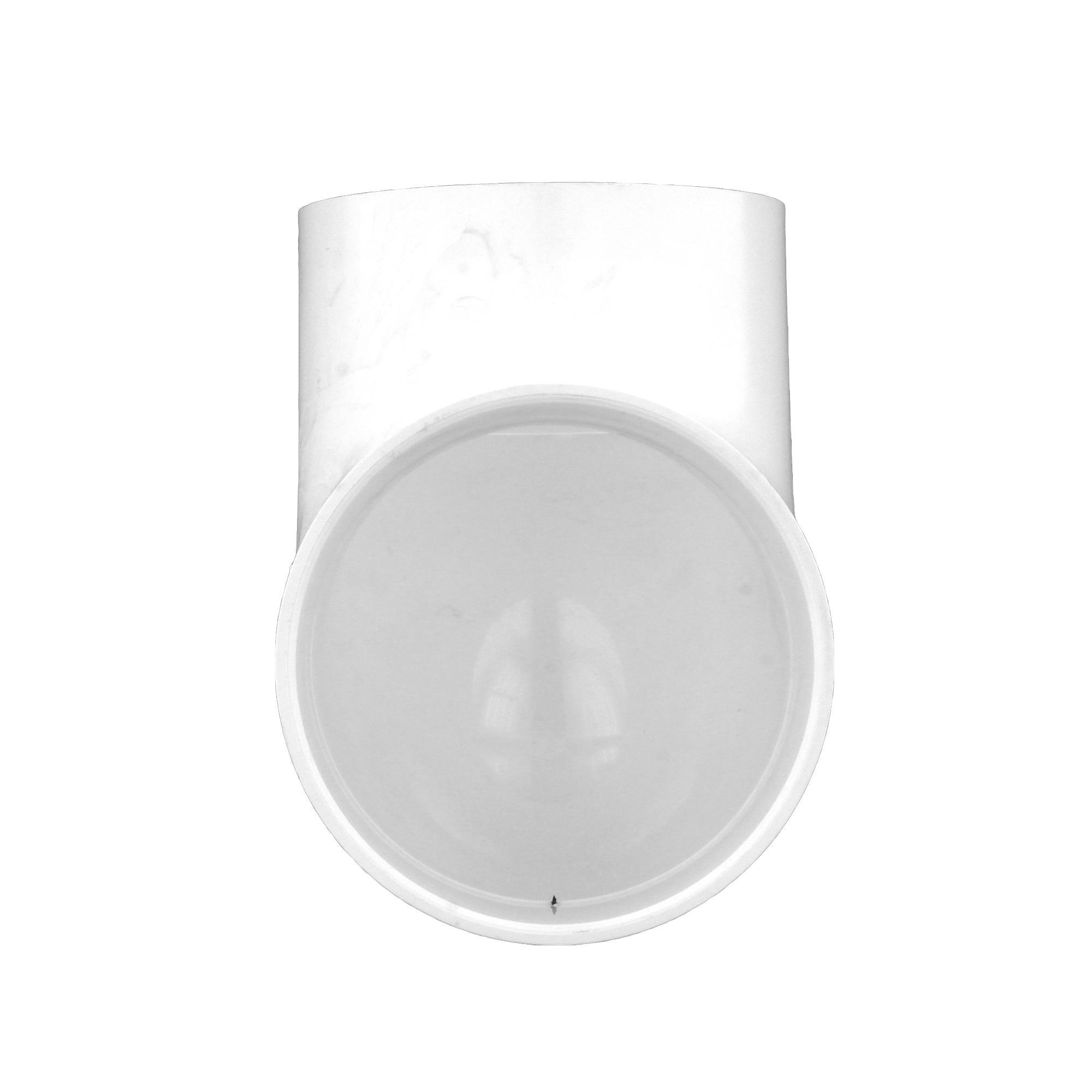

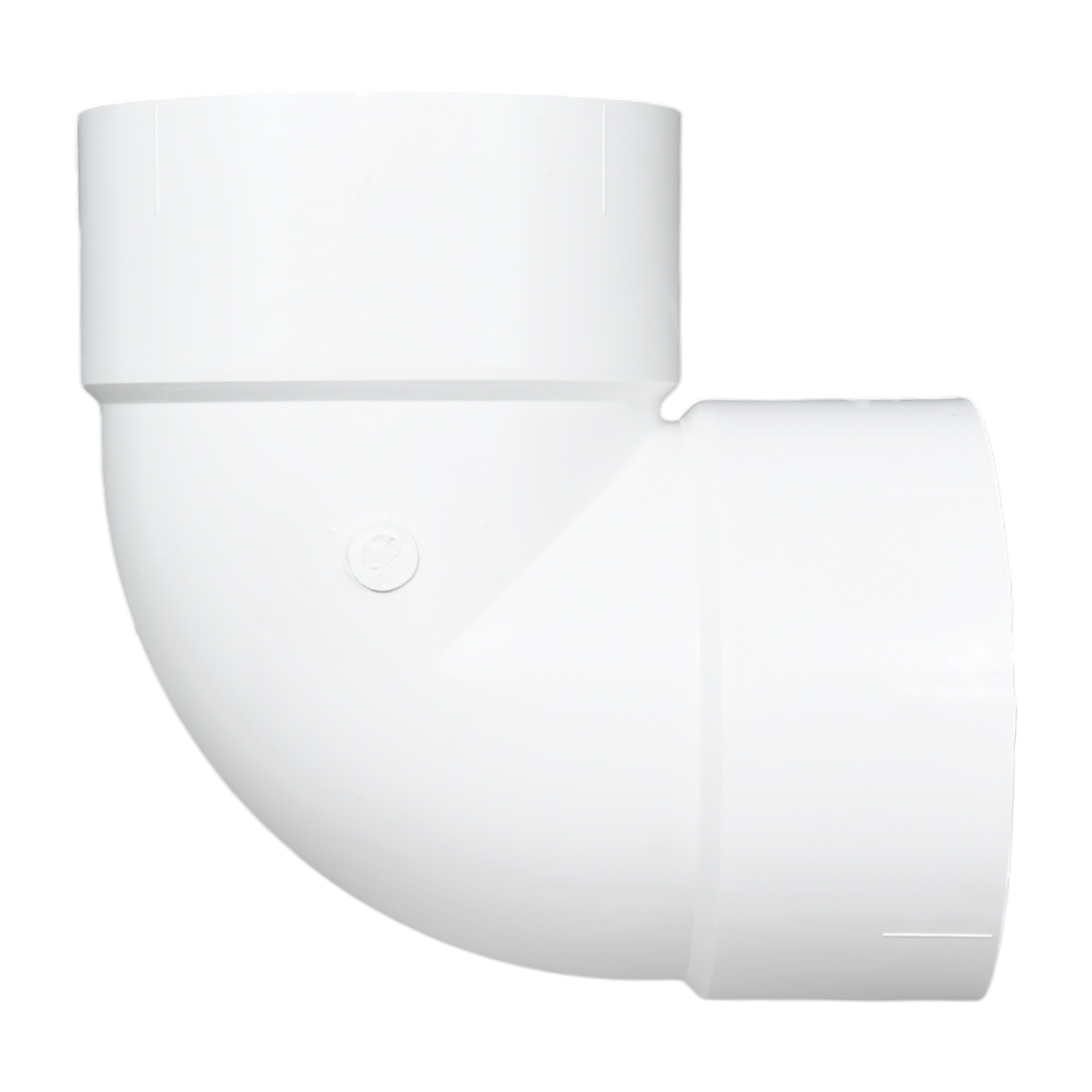

Charlotte DWV Bend, Short Turn, 90 deg Elbow Fitting/Connector, 10 in Nominal, Hub End Style, SCH 40/STD Schedule, 150 psi Pressure, Molded Method of Manufacture, PVC, White, 140 deg F, Domestic
|
Type
|
:
|
Short Turn
|
|
Fitting/Connector Type
|
:
|
90 deg Elbow
|
|
Nominal Size
|
:
|
10 in
|
|
End Style
|
:
|
Hub
|
|
Schedule Rating
|
:
|
SCH 40/STD
|
|
Pressure Rating
|
:
|
150 psi
|
|
Method of Manufacture
|
:
|
Molded
|
|
Material
|
:
|
PVC
|
|
Color
|
:
|
White
|
|
Temperature Rating
|
:
|
140 deg F
|
|
Domestic/Import
|
:
|
Domestic
|
- Because we manufacture both pipe and fittings, we target the middle of the spec range to ensure an interference fit
- Fabricated PVC SCH 40/STD fittings are intended for use in non-pressure applications where the operating temperature will not exceed 140 deg F
- Not a sanitary pattern
-
Catalog
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Charlotte_PVC085101600_Catalog.pdf
-
Catalog
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Royal_Building_Products_D1003_Catalog.pdf
-
Instruction/Installation Manual
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Charlotte_ABS_00100_0600_Manual.pdf
-

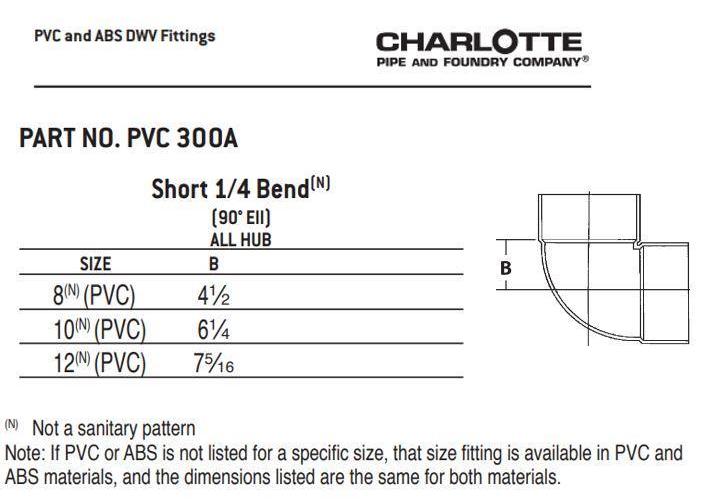

Line Drawing
