Anvil® C-Clamp, Universal Standard Throat, Series: FIG 92, 3/8 in Rod, 500 lb Top/250 lb Bottom, 60 in-lbs Torque, Ductile Iron, Plain, 450 deg F
| Type | : | Universal Standard Throat |
| Series | : | FIG 92 |
| Rod Size | : | 3/8 in |
| Load Capacity | : | 500 lb Top/250 lb Bottom |
| Specifications | : | 60 in-lbs Torque |
| Material | : | Ductile Iron |
| Finish | : | Plain |
| Temperature Rating | : | 450 deg F |

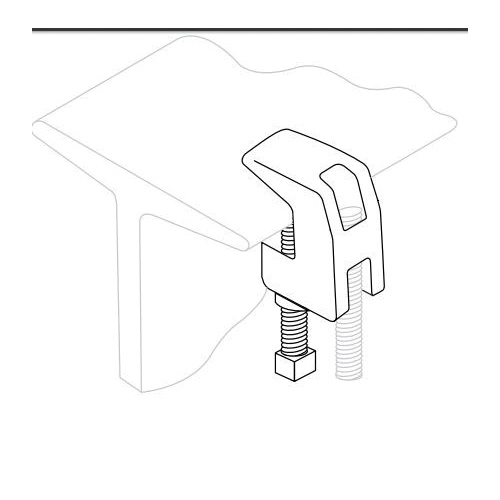

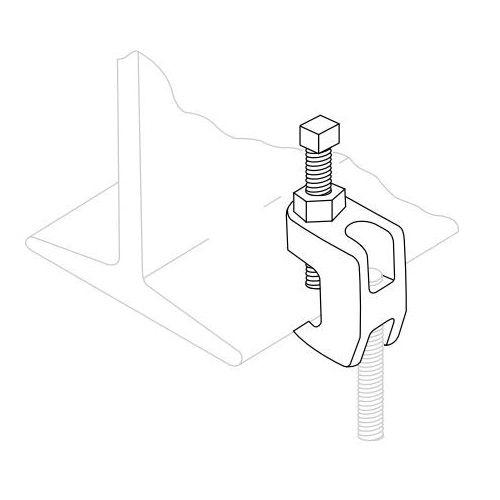

- They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions

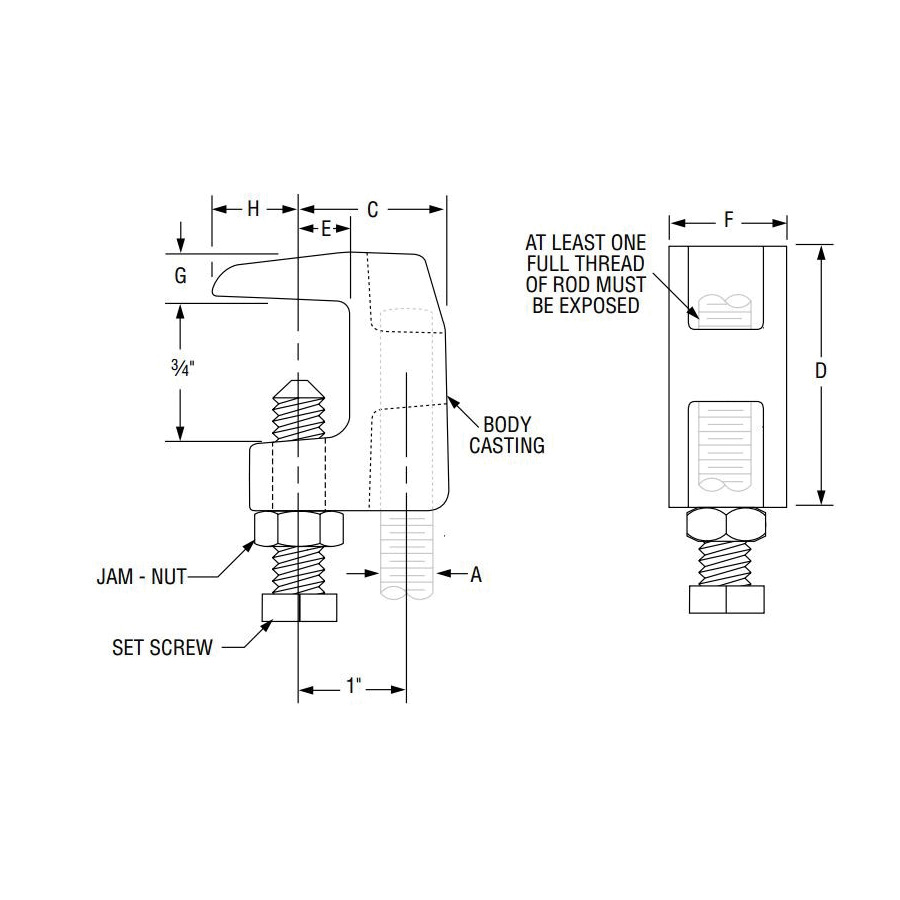

- Secured in place by a cup-pointed set screw tightened against the flange, a jam nut is provided for tightening the set screw against the body casting
- Thru tapping of the body casting permits extended adjustment of the threaded rod
- Can be used with Fig 89X retaining clip for seismic applications
- Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in
- Standard throat universal c-type clamp
- Ductile iron, hardened steel cup point set screw and locknut
