SPF/Anvil™ Clevis Hanger, Adjustable, Series: FIG CT-65, 1-1/4 in Pipe, 3/8 in Rod, 250 lb, Carbon Steel, Copper Plated, 2-13/16 in H
| Type | : | Adjustable |
| Series | : | FIG CT-65 |
| Pipe Size | : | 1-1/4 in |
| Rod Size | : | 3/8 in |
| Thread Size | : | 2-1/2 in |
| Load Capacity | : | 250 lb |

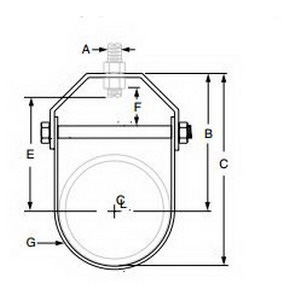

| Specifications | : | 2-1/16 in Center of Pipe to Top of Hanger |
| Material | : | Carbon Steel |
| Finish | : | Copper Plated |
| Dimensions | : | 2-13/16 in H |
- Adjustment may be made either before or after tubing is in place without temporary support of pipe
- Hanger rod and nuts may be locked into position after adjustment by use of the upper nut
- Provides for adjustment up to 1-7/8 in
