Zurn® Wilkins 112-950XLT2 39796
Send Print

Zurn® Wilkins 112-950XLT2

Zurn® Wilkins 112-950XLT2 Valve Assembly, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Dual Check, Domestic

  • MPN: 112-950XLT2
  • TPN: 39796
  • UPC: 612052071305
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Zurn® Wilkins Valve Assembly, Series: 950XLT2, 1-1/2 in Nominal, FNPT, 175 psi, 180 deg F, Dual Check Backflow, Full Port, Media: Water, Bronze Body, Domestic

Series      :      950XLT2
Nominal Size      :      1-1/2 in
End Style      :      FNPT
Pressure Rating      :      175 psi
Temperature Rating      :      180 deg F
Backflow Type      :      Dual Check
Port Type      :      Full
Media      :      Water
Body Material      :      Bronze
Domestic/Import      :      Domestic
  • Top access check valves ease repair in meter box applications
  • Replaceable seats and silicone seal rings
  • Cast bronze construction
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_10FSC_Catalog.pdf
  • pdf Line Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_112950LXLT2_Line_Drawing.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_2-950XLT2_Specification_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_RK114-950XLC_Installation_Manual.pdf

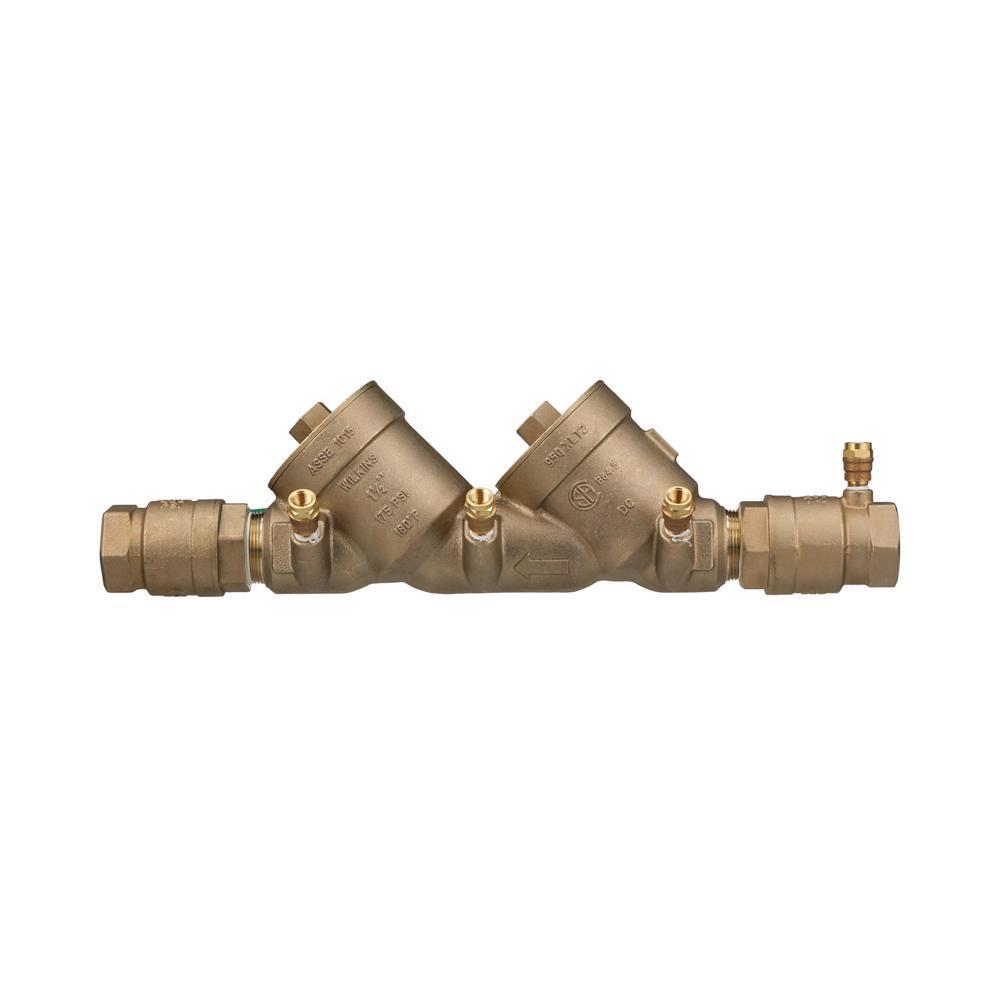

The Zurn® Wilkins 950XLT2 Double Check Valve Assembly provides top access check covers. Suitable for below grade installation in standard valve boxes in low hazard potable systems.
