Flash Shield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA® , ICC and IAPMO. The Flash Shield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing and Jacket-BiteTM jacket capturing for steel tubing protection and continuous conductivity.

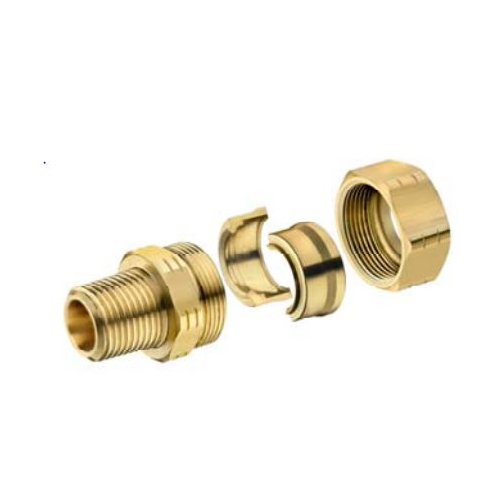

Gastite® FlashShield™ Straight Fitting, 1 in Nominal, NPT, Brass
Nominal Size
|
:
|
1 in
|
End Style
|
:
|
NPT
|
Material
|
:
|
Brass
|
- Approved for concealed use
- Tool-less flare fitting design
- Metal-to-metal seal
- Self-guiding fitting assembly
- Patented Jacket-Biteâ„¢
- Fully reusable fitting
- Patent pending multi-point seal
- 5 psi maximum approved operating pressure
- -35 to 160 deg F operating temperature
- 1-3/4 in hex adapter
- 1-15/16 in hex nut
- 65 ft-lb assembled torque
-
