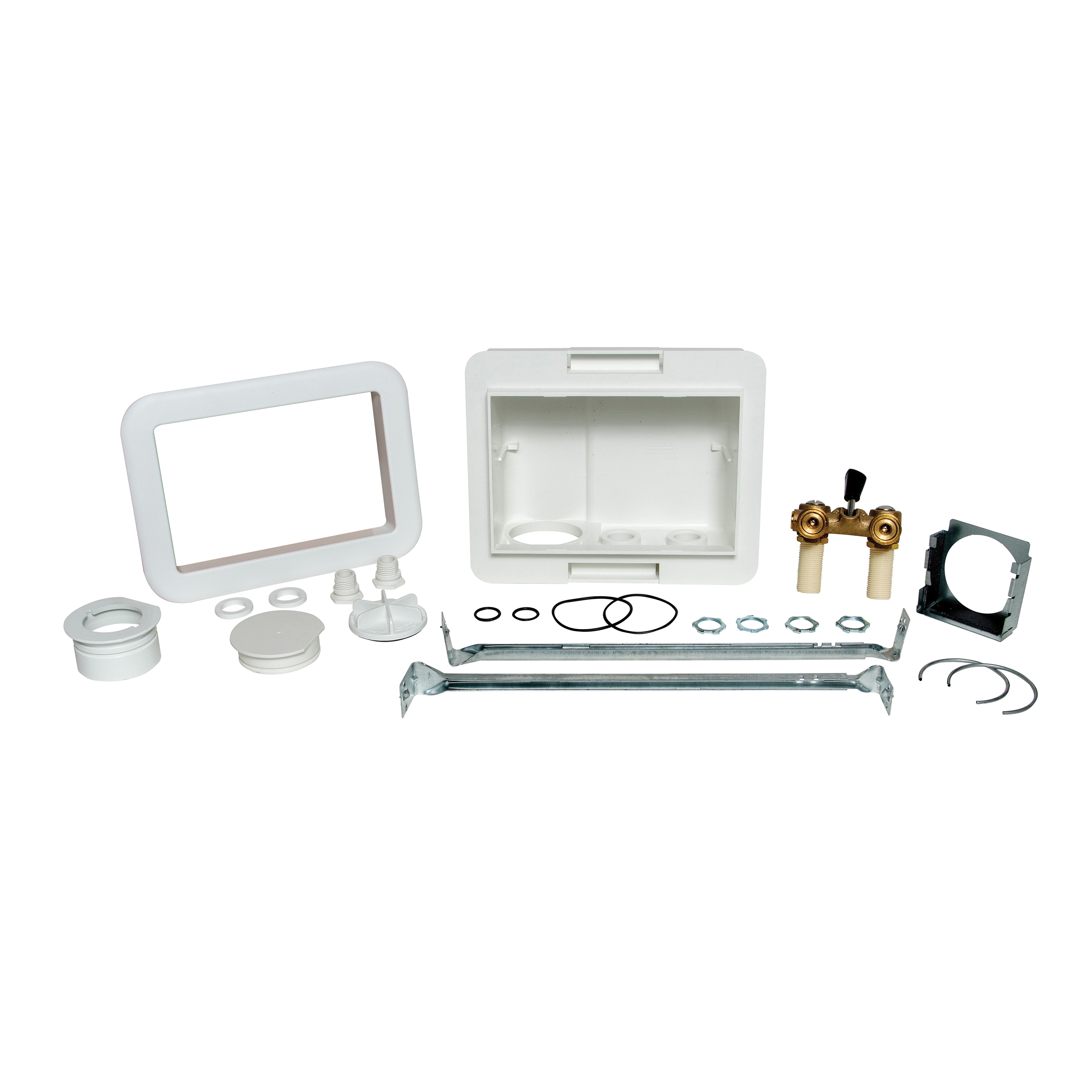

Oatey® Outlet Box, Fire Rated, For Use With: Washing Machine, Specifications: CPVC Connection, Bulk Molding Compound, 8-1/3 in W x 3-3/4 in D x 5-1/2 in H, Import
| Type | : | Fire Rated |
| Suitable For Use With | : | Washing Machine |
| Specifications | : | CPVC Connection |
| Material | : | Bulk Molding Compound |
| Dimensions | : | 8-1/3 in W x 3-3/4 in D x 5-1/2 in H |
| Domestic/Import | : | Import |
- Warnock Hersey certified for 1 hr and 2 hr fire rated walls
- 2 in drain opening fits PVC or ABS SCH 40/STD DWV pipe

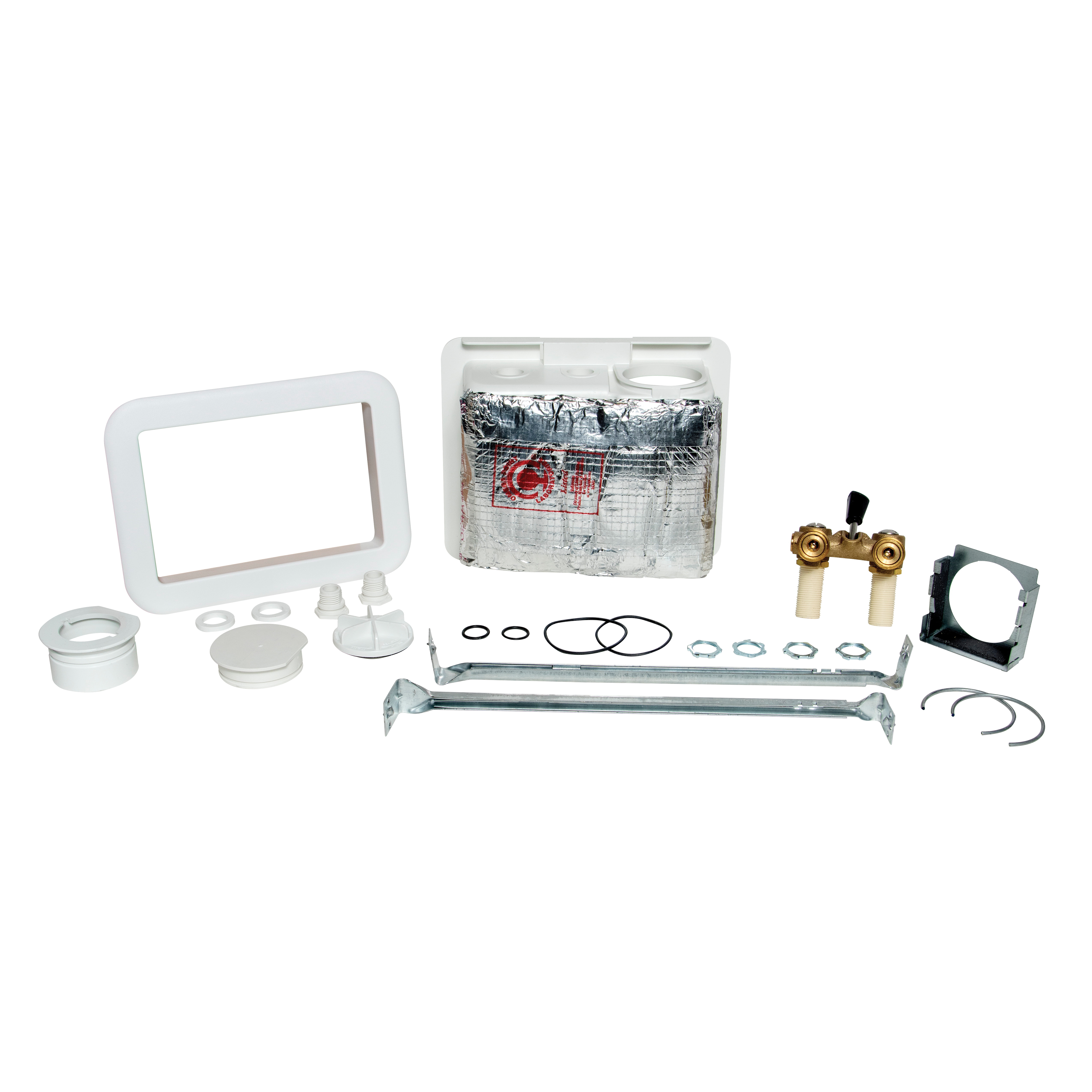

- Box made of bulk molding compound (BMC) with UL classified intumescent pads and UL classified insulating material
- Adjustable metal mounting brackets, easy-to-remove test cap
- Flexible valve/drain arrangement capabilities
- Single lever valve enables easy shutoff of hot and cold water simultaneously
- 10-1/5 in W x 7-2/5 in H faceplate
- Faceplates are pre-assembled on box
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_2083_Catalog.pdf
Oatey® Fire-Rated Washing Machine Outlet Boxes can be used in all applications that require supply valves and waste drains recessed into a fire-rated wall.
