Zurn® Wilkins Backflow Preventer, Series: 975XL2, 1/2 in Nominal, FNPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Media: Water, Bronze Body, 13-1/2 in L, Import
| Series | : | 975XL2 |
| Nominal Size | : | 1/2 in |
| End Style | : | FNPT |
| Pressure Rating | : | 175 psi |
| Temperature Rating | : | 180 deg F |
| Ball Valve/Gate Valve Type | : | Quarter-Turn Ball Valve |
| Backflow Type | : | Reduced Pressure |
| Port Type | : | Full |
| Media | : | Water |
| Body Material | : | Bronze |
| Dimensions | : | 13-1/2 in L |
| Domestic/Import | : | Import |
- All Bronze body with corrosion resistant internals
- Top access checks for easy repair in tight locations
- Replaceable check and relief valve seats
- Cast bronze construction
Line Drawing

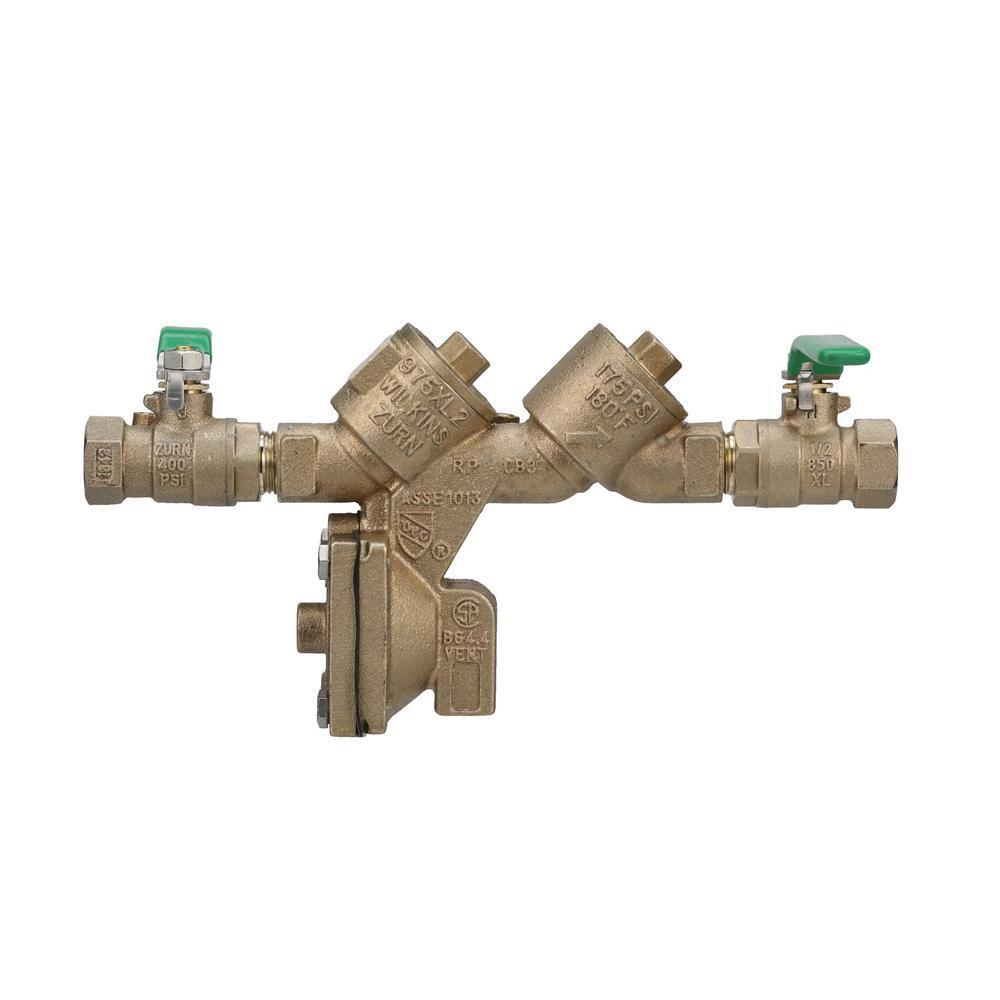

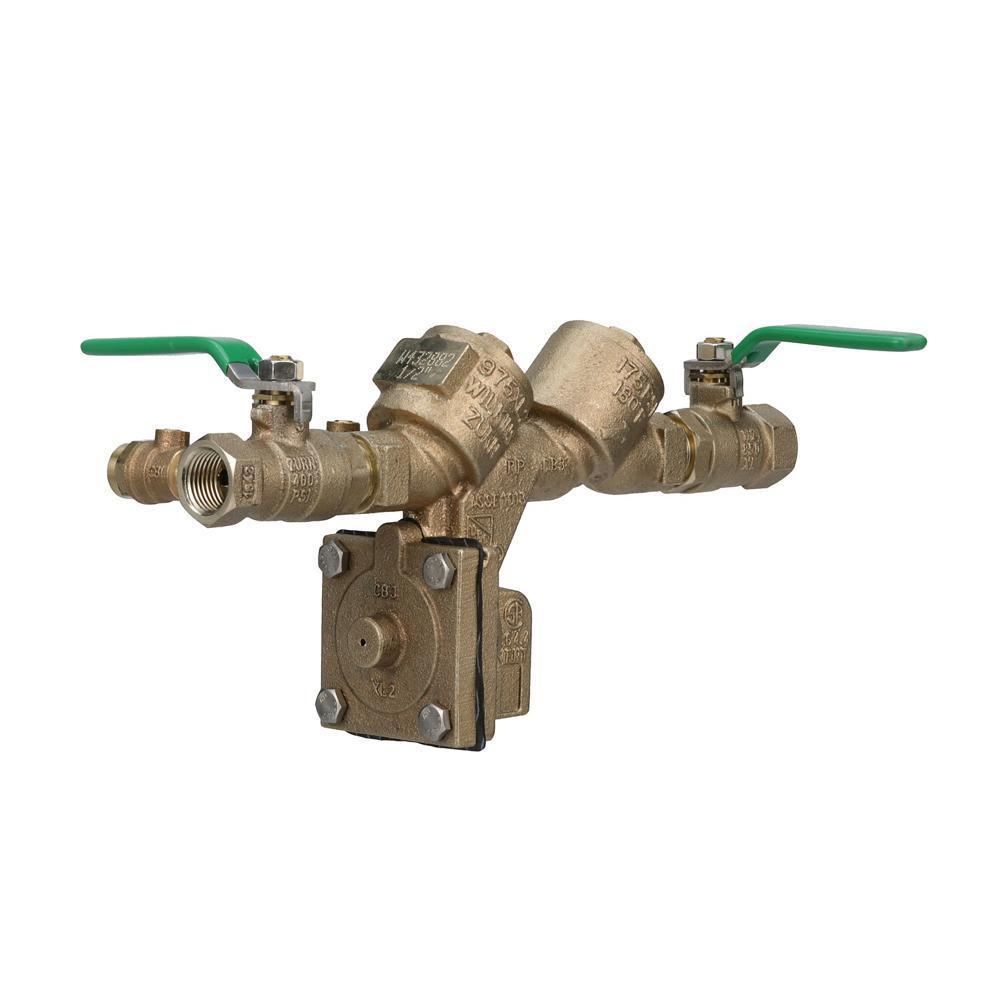

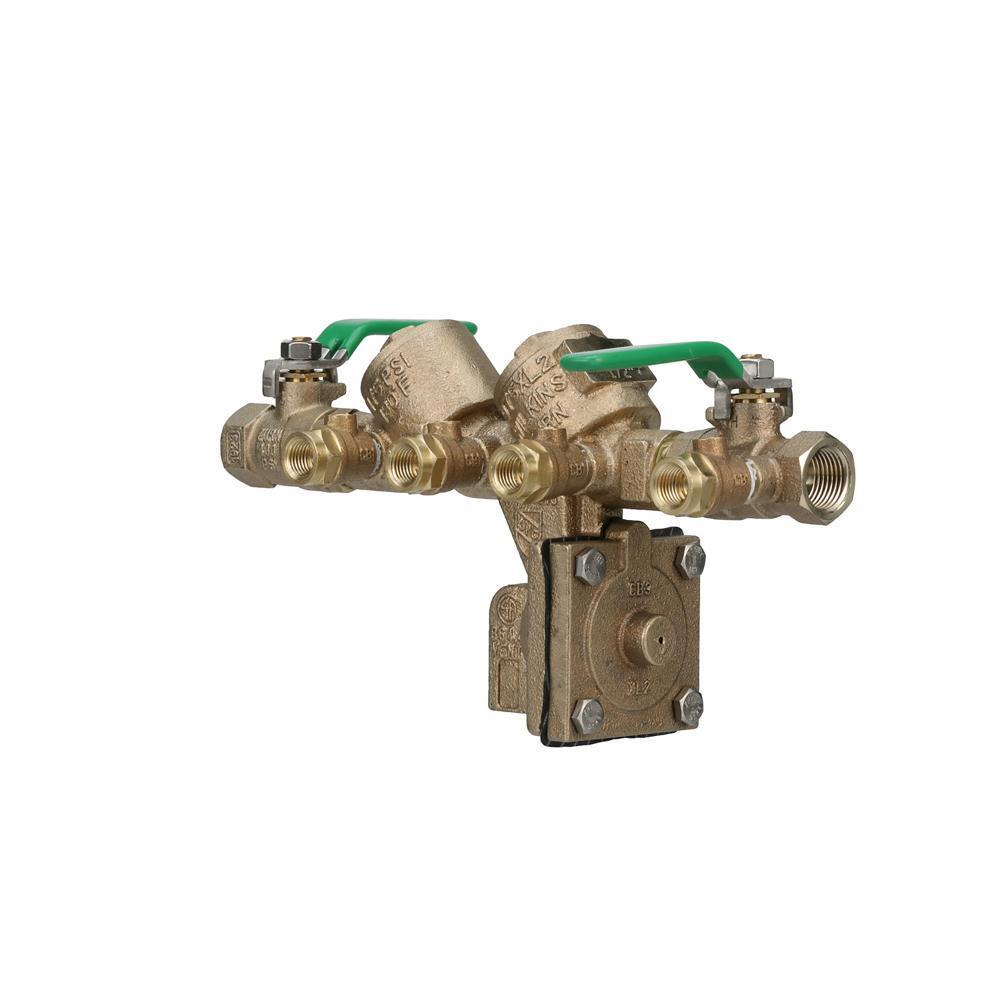

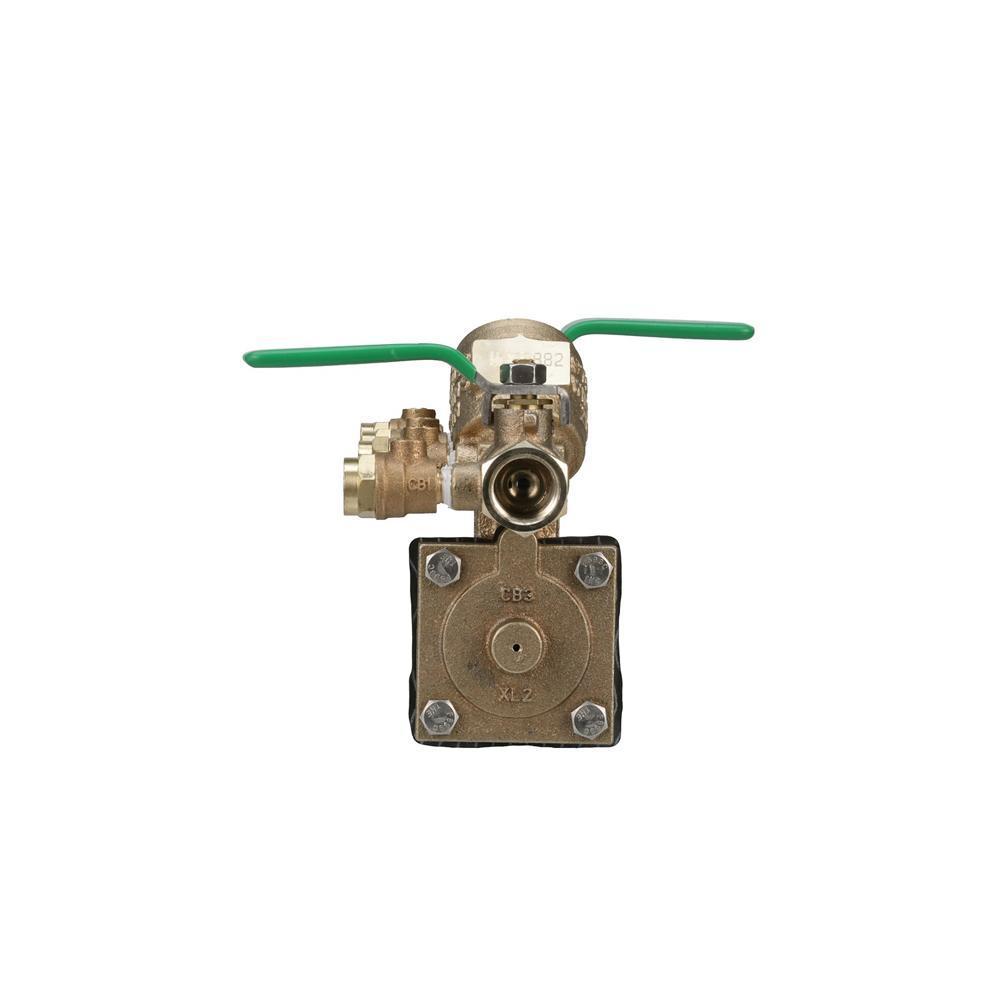

The Zurn® Wilkins 975XL2 Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. The wye pattern, bronze body provides separate access to each check valve and the relief valve for servicing.
