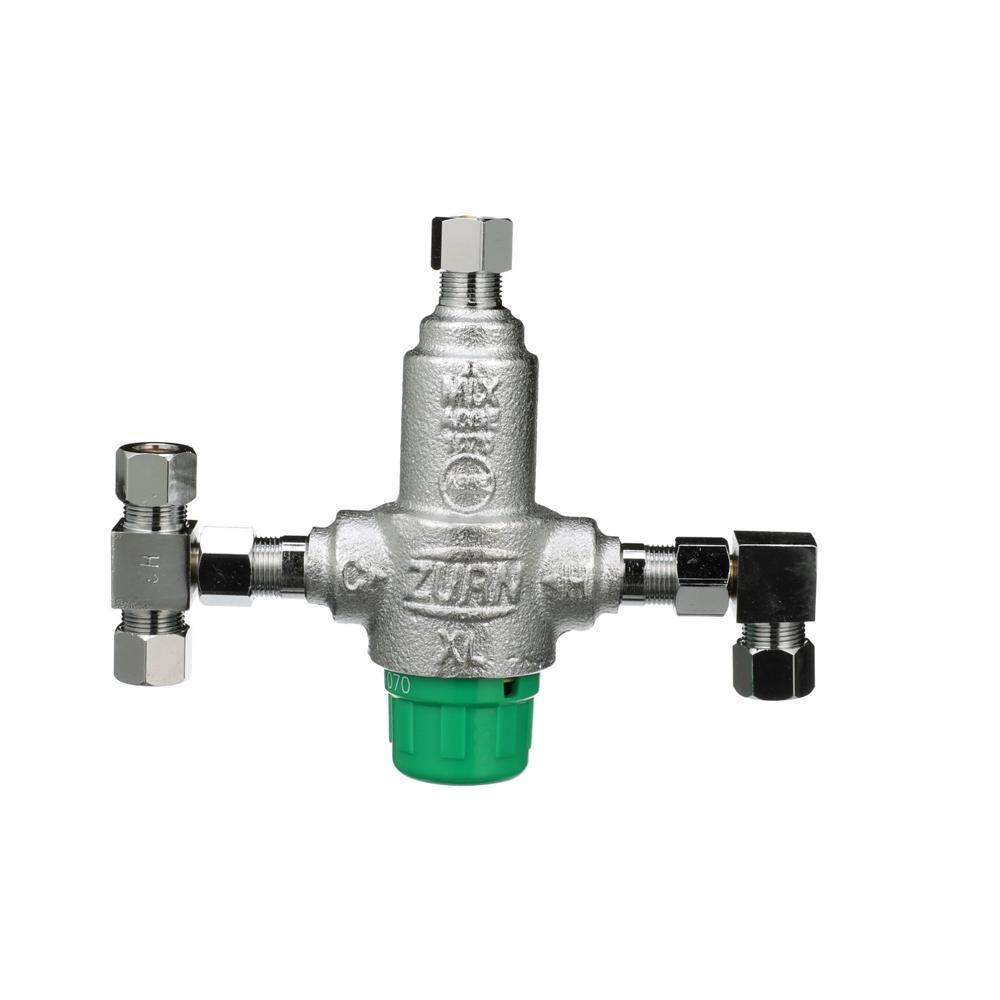

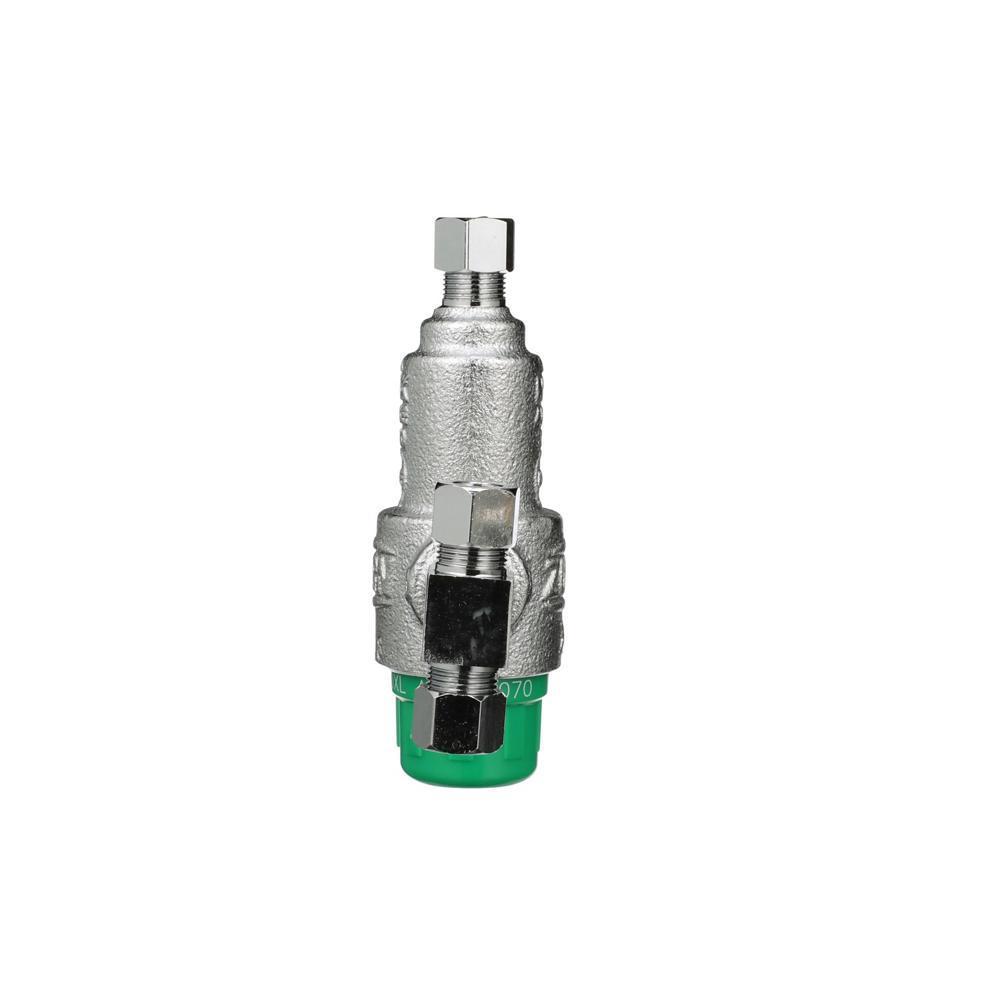

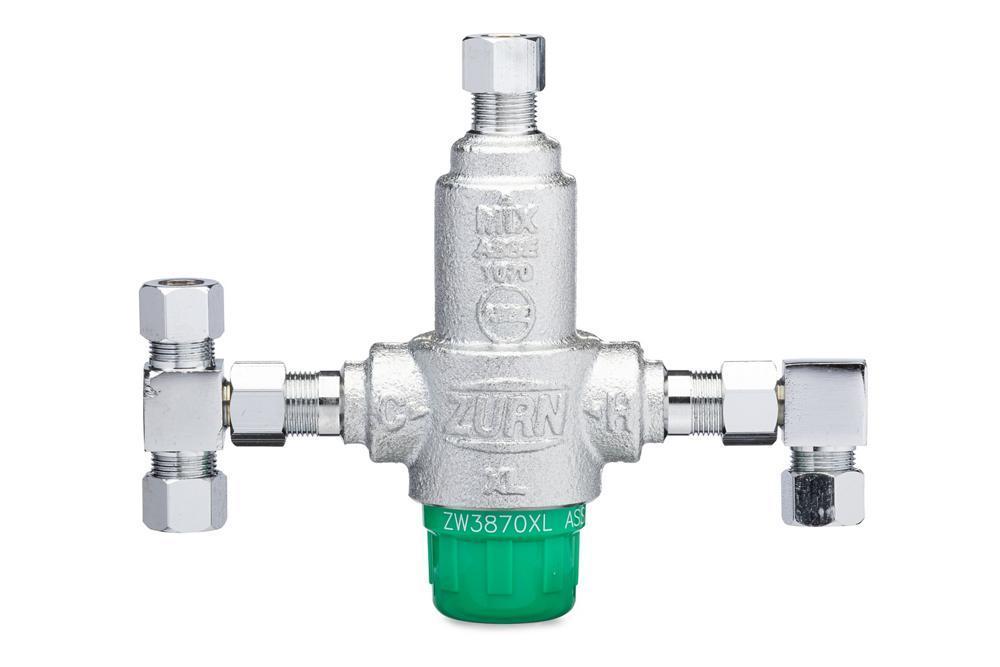

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.
Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW3870XLT, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 3.1 gpm Flow, Media: Water, 5-55/64 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks, Nickel Plated, 4-27/32 in H
Series
|
:
|
ZW3870XLT
|
Nominal Size
|
:
|
3/8 in
|
End Style
|
:
|
Compression
|
Pressure Rating
|
:
|
145 psi
|
Temperature Rating
|
:
|
120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply
|
Flow Capacity
|
:
|
3.1 gpm
|
Media
|
:
|
Water
|
Inlet to Outlet Length
|
:
|
5-55/64 in
|
Top to Inlet Center
|
:
|
2-27/32 in
|
Body Material
|
:
|
Cast Bronze
|
Trim Material
|
:
|
300 Stainless Steel Spring
|
Softgoods Material
|
:
|
FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks
|
Finish
|
:
|
Nickel Plated
|
Dimensions
|
:
|
4-27/32 in H
|
- Most suitable for use with sensor faucets
- Designed for single fixture use
- 3.1 gpm flow rate at 45 psi pressure loss
-
