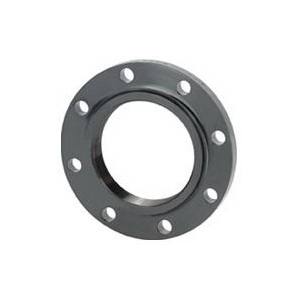

Matco-Norca™ Floor Flange, 3/4 in Nominal, 1/2 in Thickness, 2-3/4 in Diameter Bolt Circle, Thread Connection, 3.88 in OD, 300 psi Pressure, 150 lb Pressure Class, 1-1/2 in Diameter Hub, 0.62 in Length Through Hub, Round Shape, Malleable Iron, Domestic/Import: Import
|
Nominal Size
|
:
|
3/4 in
|
|
Outside Diameter
|
:
|
3.88 in
|
|
Thickness
|
:
|
1/2 in
|
|
Bolt Circle Diameter
|
:
|
2-3/4 in
|
|
Connection Type
|
:
|
Thread
|
|
Pressure Rating
|
:
|
300 psi
|
|
Pressure Class
|
:
|
150 lb
|
|
Hub Diameter
|
:
|
1-1/2 in
|
|
Length Through Hub
|
:
|
0.62 in
|
|
Shape
|
:
|
Round
|
|
Material
|
:
|
Malleable Iron
|
|
Domestic/Import
|
:
|
Import
|
- 100% pressure tested before leaving the factory
- Chinese fittings
- Permissible for service temperature up to 186 deg C
- Reflecting the temperature of saturated steam at 10.3 bar
-
