Milwaukee® 48-20-3944

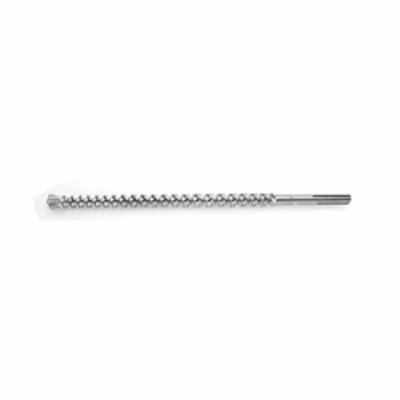

Milwaukee® 48-20-3944 4-Cutter Rotary Hammer Drill Bit, 7/8 in Drill Bit, 45/64 in SDS Max® Shank, 8 in D Cutting, Carbide Cutting Edge, 13 in OAL

  • MPN: 48-20-3944
  • TPN: 33276
  • UPC: 045242102174
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Milwaukee® Rotary Hammer Drill Bit, 4-Cutter, 7/8 in Drill Bit, 13 in Overall Length, 8 in Cutting Depth, 8 in Flute Length, 45/64 in Shank, SDS Max® Shank, Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, High Carbon Steel, Uncoated, Silver, Applicable Materials: Block, Brick, Concrete and Reinforced Concrete

Type      :      4-Cutter
Drill Bit Size      :      7/8 in
Overall Length      :      13 in
Cutting Depth      :      8 in
Flute Length      :      8 in
Shank Size      :      45/64 in
Shank Type      :      SDS Max®
Point Type      :      Centering
Cutting Direction      :      Right Hand
Cutting Edge Material      :      Carbide
Material      :      High Carbon Steel
Finish      :      Uncoated
Color      :      Silver
Applicable Materials      :      Block, Brick, Concrete and Reinforced Concrete
  • SDS Max® shank
  • Brazing formula optimizes drilling for upto 20% longer life
  • Unique flute geometry provides efficient dust removal
  • Centering point and 4-cutter design provide accurate and precise round holes
  • Highest quality carbide maximizes material pulverization
  • The optimized flutes provide fastest debris extraction speeding up drill rates

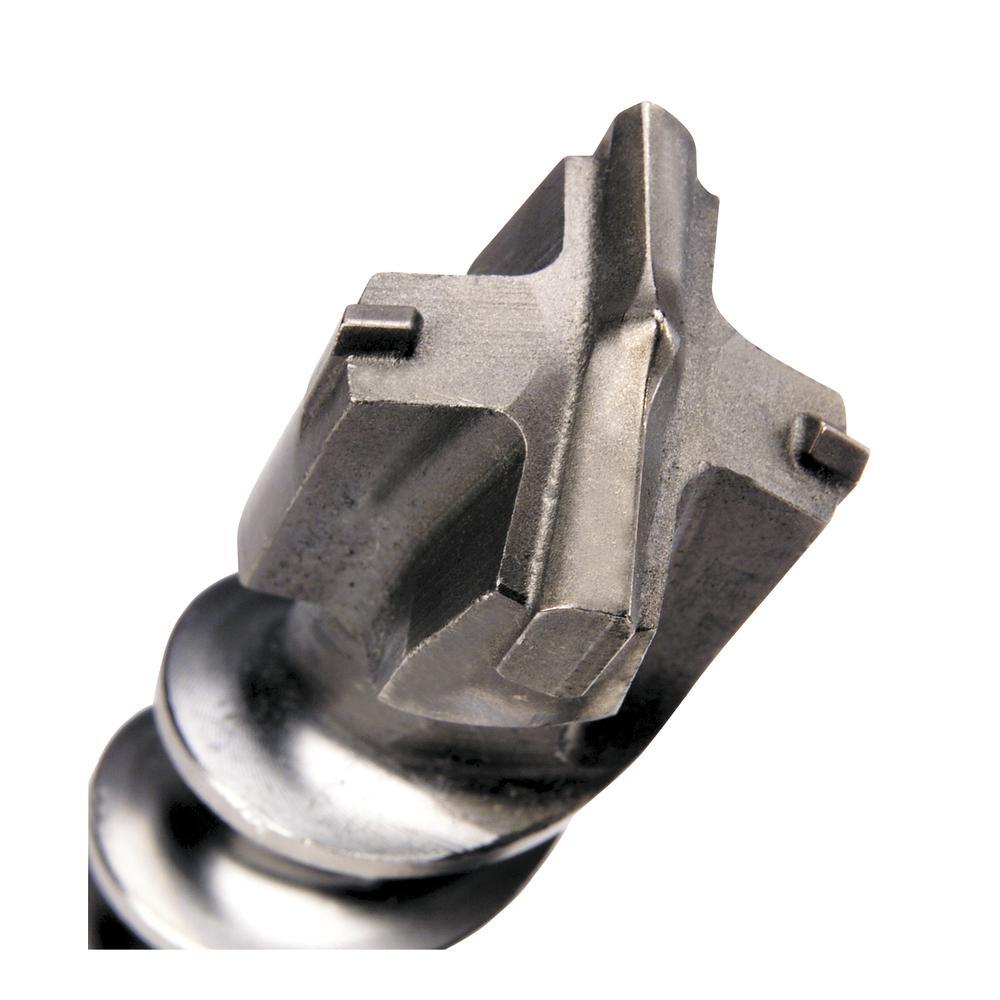

  • Feature a 4-cutter 4 x 90 deg tip geometry to avoid lock up in rebar and patented rebar chamfers for increased durability

SDS max Carbide bits feature the SDS max drive system for fast bit changes and efficient power transfer from the hammer to the bit. Bits over 9/16 in. (5/8 in.)feature the highest quality Carbide and provide two extra Carbide nibs resulting in four cutting edges. These four cutting edges increase the drilling speed by pulverizing more concrete. They also provide a rounder hole than two cutter bits. The flutes provide a fast deep means of clearing concrete dust from deep holes speeding up drill rates. Use only in SDS max drive hammers. SDS max bits also available in metric sizes. One per package.
