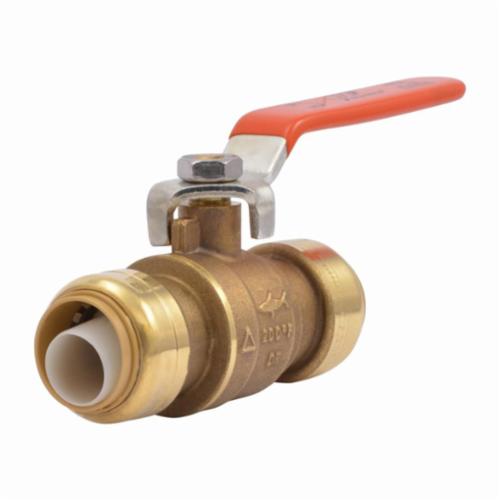

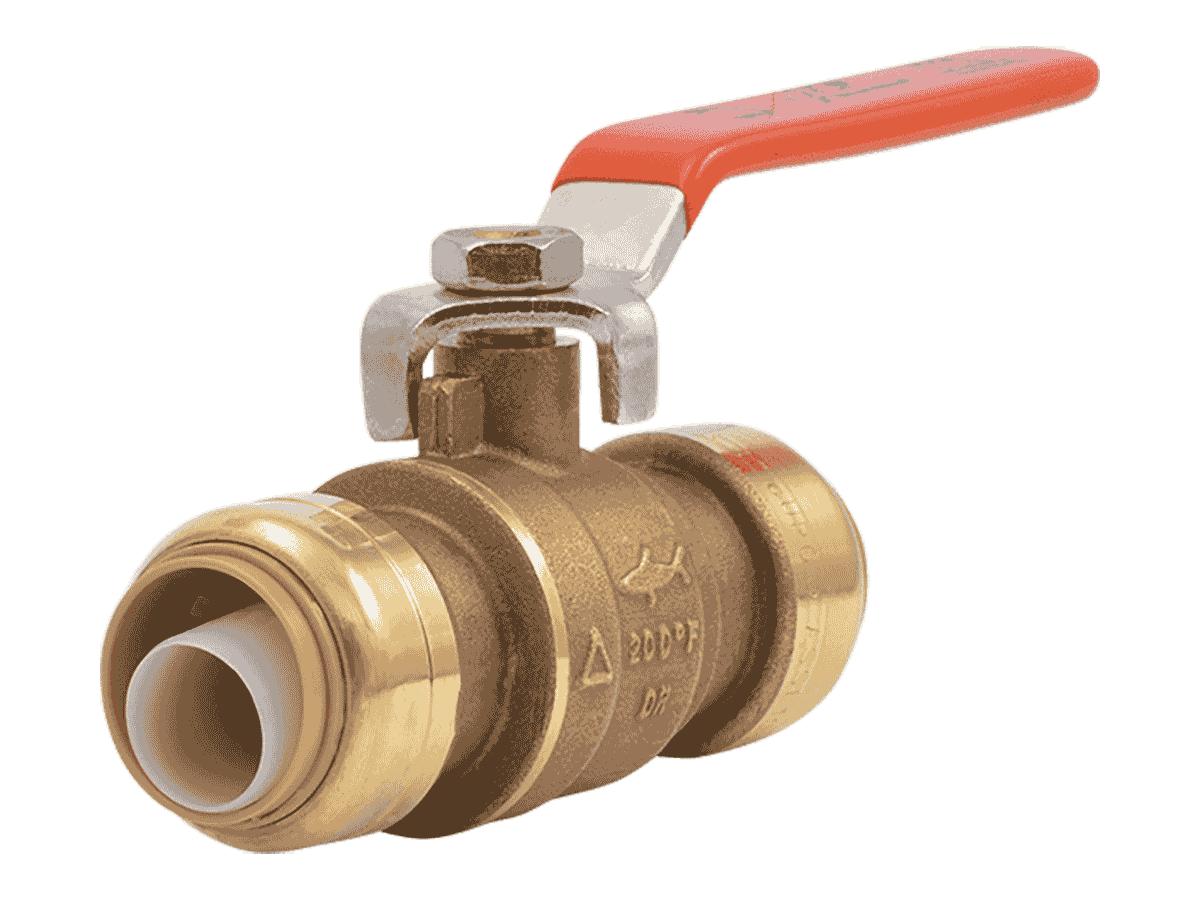

SharkBite® Ball Valves are the easiest way to install or replace a shut-off valve into your potable water or hydronic water heating system. The push-fit connections allow you to join to Copper, PEX, CPVC or PE-RT pipe in any combination without a need for soldering, clamps, glue or unions. The valve is easily rotated after installation making it easier to reach the shut-off, or to work in tight spaces.

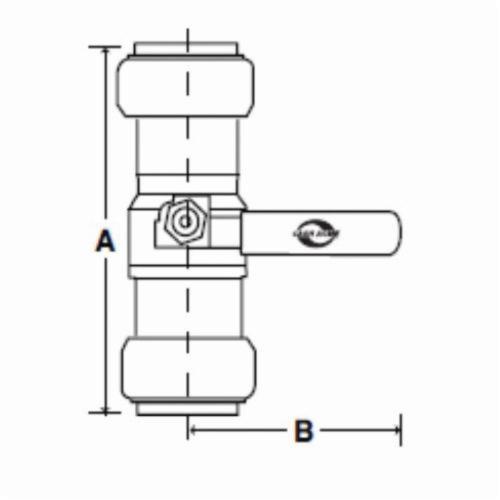

Sharkbite® Ball Valve, 3/4 in Nominal, Push-Fit, 200 psi, 200 deg F, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 3.62 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, EPDM, Polished Chrome, Import
Nominal Size
|
:
|
3/4 in
|
End Style
|
:
|
Push-Fit
|
Pressure Rating
|
:
|
200 psi
|
Temperature Rating
|
:
|
200 deg F
|
Port Type
|
:
|
Full
|
Media
|
:
|
Water
|
Actuator Type
|
:
|
Lever Operated
|
Ball Material
|
:
|
Brass
|
Body Material
|
:
|
Brass
|
Trim Material
|
:
|
Brass Stem
|
Softgoods Material
|
:
|
EPDM
|
Finish
|
:
|
Polished Chrome
|
Domestic/Import
|
:
|
Import
|
- Convenient single lever control - makes them easy to use and encourages shut-off of water supply
- Full port ball valve - allows water to flow freely through the valve
- Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
- Valve assembled to strict quality standards - measured thread engagement, measured torque
- Brass body end retainer, zinc plated steel handle
- DZR Lead free brass body
- PTFE seat ring/packing
- EPDM O-ring
-
