Apollo™ 77CLF20801A 95626
Send Print

Apollo™ 77CLF20801A

Apollo™ 77CLF20801A 77CLF-A 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic

  • MPN: 77CLF20801A
  • TPN: 95626
  • UPC: 670750352157
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 4/BX
  • Login to see Availability

Apollo™, 77CLF20801A, Ball Valve, 2-Piece, Series: 77CLF-A, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, 2 in Orifice, Lever Operated Actuator, 3.83 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

Type      :      2-Piece
Series      :      77CLF-A
Nominal Size      :      2 in
End Style      :      Solder
Pressure Rating      :      600 psi CWP
Temperature Rating      :      450 deg F
Port Type      :      Full
Media      :      Water
Actuator Type      :      Lever Operated
Ball Material      :      Chrome Plated Brass
Top to Inlet Center      :      3.68 in
Body Material      :      Bronze
Trim Material      :      Brass Stem/RPTFE Seat
Softgoods Material      :      RPTFE
Domestic/Import      :      Domestic
  • Easily identifiable white handle grip and blue Lead free hang tag
  • EZ-Solder Lead free bronze body
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Zinc plated steel nut
  • Zinc plated steel/vinyl standard handle
  • Standard trim
  • 150 psi steam working pressure

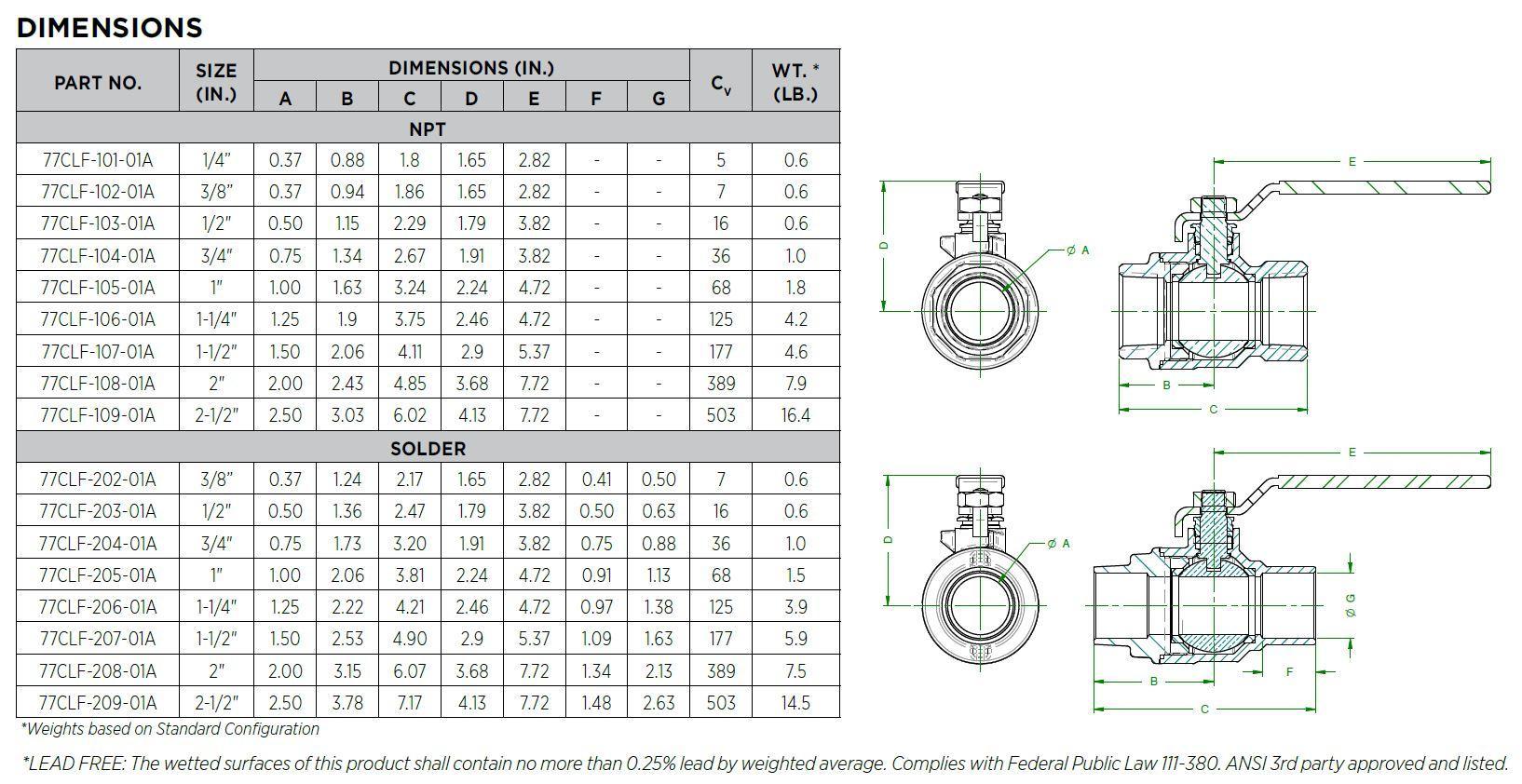

  • pdf Line Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77CLF10211A_Line_Drawing.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77CLF10211A_Specification_Sheet.pdf
  • pdf Owners/User Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77CLF10211A_User_Manual.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_94A10401_Catalog.pdf

The Apollo™ 77CLF Contractor Series Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven EZ-Solder™ Lead Free materials.
