Zurn® PEX QQPMC55X 37504
Send Print

Zurn® PEX QQPMC55X

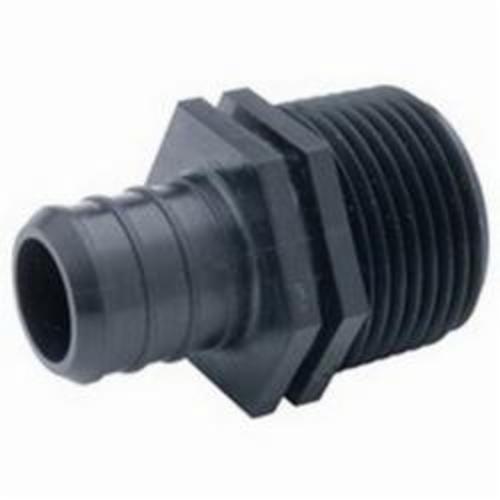

Zurn® ZURN PEX® QickSert CR™ QQPMC55X Hose Adapter, 1 in, Barb x MNPT, Polymer

  • MPN: QQPMC55X
  • TPN: 37504
  • UPC: 084169685896
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 25/PK
  • Login to see Availability

Zurn® ZURN PEX® QickSert CR™ Hose Adapter, Fitting/Connector Type: Adapter, 1 in Nominal Size, Barb x MNPT, 2.21 in Length, 80 psi, Molded, Polymer, 200 deg F

Fitting/Connector Type      :      Adapter
Nominal Size      :      1 in
End Style      :      Barb x MNPT
Length      :      2.21 in
Pressure Rating      :      80 psi
Method of Manufacture      :      Molded
Material      :      Polymer
Temperature Rating      :      200 deg F
  • Molded from highly engineered polymers
  • ASTM F2159 specification for plastic insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing and SDR9 polyethylene of raised temperature (PE-RT) tubing
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QQC33GX_Manual.pdf
  • pdf Instruction/Installation Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Instruction_Installation.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QAFA33FQP_Warranty.pdf
  • pdf Warranty https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf

ZurnPEX® QickSert CR™ male adapter. The QQPMC_X adapter to transition from female pipe thread to PEX tubing. Molded from Acudel®. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61, ASTM F877, and CSA B137.5, and ASTM F2159.
