All conventional metal plumbing systems corrode leaving their corrosive wastes for deposit into the water system. CPVC thermoplastic system components never corrode. Spears® EverTUFF® CTS CPVC systems of fittings, pipe, supply stops and valves are Certified Lead free by NSF International (NSF®) for compliance with California and Vermont low-lead plumbing requirements for safe use in drinking water systems. Approved by national, state and municipal building codes, Spears® CTS CPVC products are ideally suited for hot and cold water distribution systems in residential and commercial structures, as well as recreational vehicles, modular homes and mobile homes.

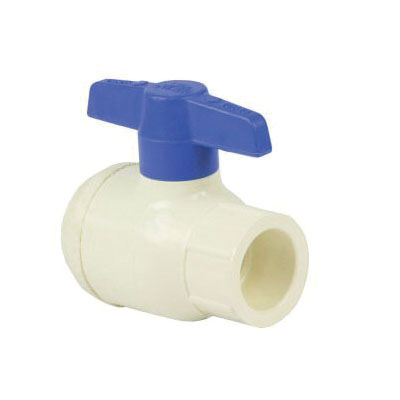

Spears® EverTUFF® Ball Valve, 2 in Nominal, Socket, 100 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 5-1/8 in Inlet to Outlet Length, 3-7/8 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, EPDM, Domestic
| Nominal Size | : | 2 in |
| End Style | : | Socket |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 200 deg F |
| Actuator Type | : | T-Handle |
| Ball Material | : | CPVC |
| Top to Inlet Center | : | 3-7/8 in |
| Body Material | : | CPVC |
| Trim Material | : | CPVC Stem and PTFE Seat |
| Softgoods Material | : | EPDM |
| Domestic/Import | : | Domestic |
- Full line of CTS CPVC fittings, pipe, supply stops and ball valves 1/2 in through 2 in plus supplemental IPS CPVC in 2-1/2 in and up
- Exceptional corrosion resistance
- Energy savings
- Higher flow capacity
- Lower system costs
- EPDM O-ring
