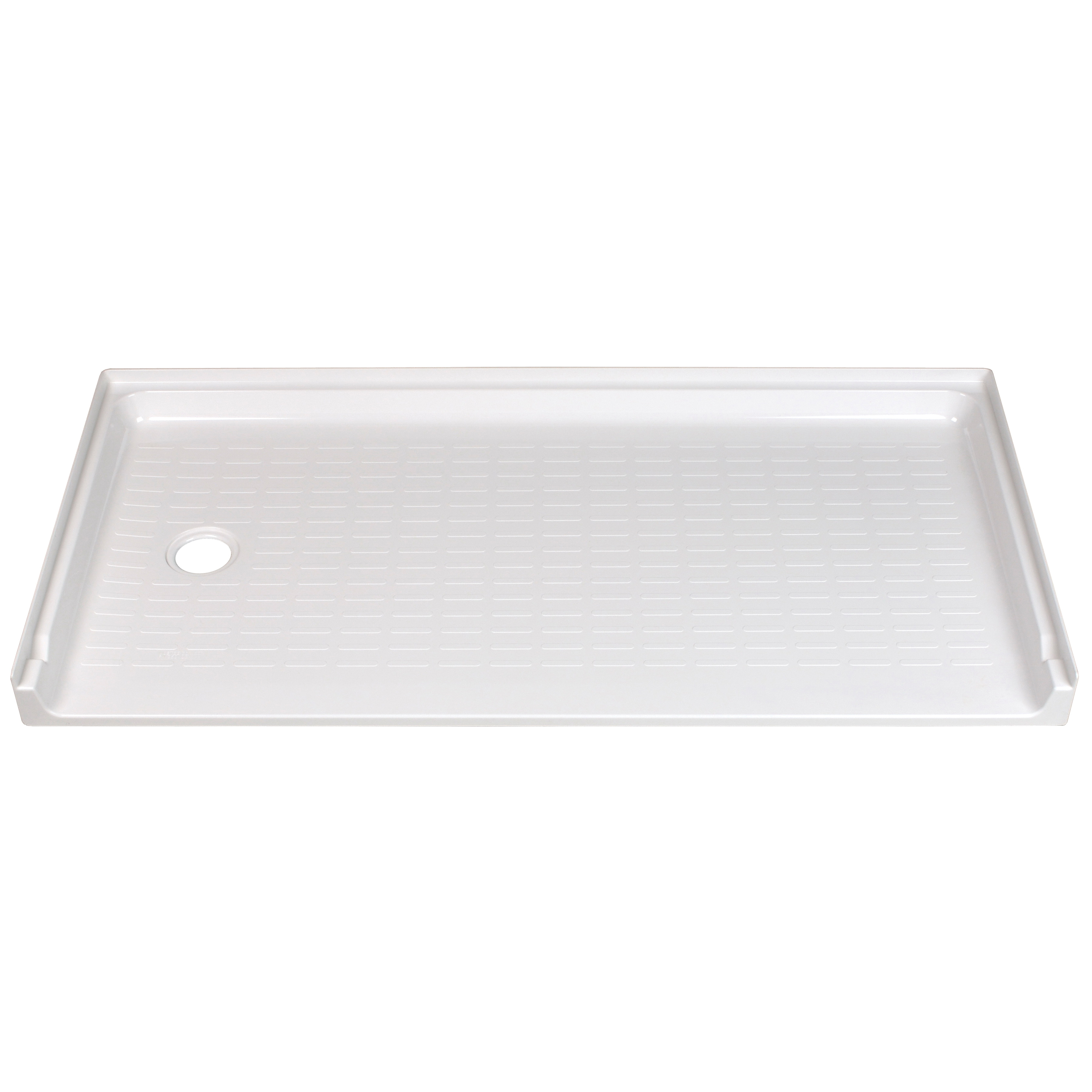

ELM® Barrier-Free Shower Floor, Series: 360, CareGiver®, 30 in Length, 60 in Width, Left Drain Location, Fiberglass, White, Domestic
| Series | : | 360 |
| Collection | : | CareGiver® |
| Length | : | 30 in |
| Width | : | 60 in |
| Drain Location | : | Left |
| Material | : | Fiberglass |
| Finish/Color | : | White |
| Domestic/Import | : | Domestic |
- Produced from high-grade, reinforced, molded fiberglass for optimum strength and impact resistance using matched metal molds under heat and pressure
- Ideal for new or remodel projects, fits DURAWALL® shower walls as well as ceramic tile or preformed wall kit
- Fits 60 in W by 30 in D alcove
- Drain hole is offset 8-1/2 x 15 in for connection to 2 in DWV piping
- Slip resistant surface
- Smooth, colorfast semi-gloss finish, resists scuffs
- Mold and mildew-resistant, easy to clean
-
Data/Spec Sheet-1
-
ELM_360L_Manual.pdf
-
Instruction/Installation Manual
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ELM_360L_Manual.pdf
-
ELM_360L_Specification_Sheet.pdf
-
Specification Sheet
-
Specification Sheet
-
Specification Sheet
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ELM_360L_Specification_Sheet.pdf

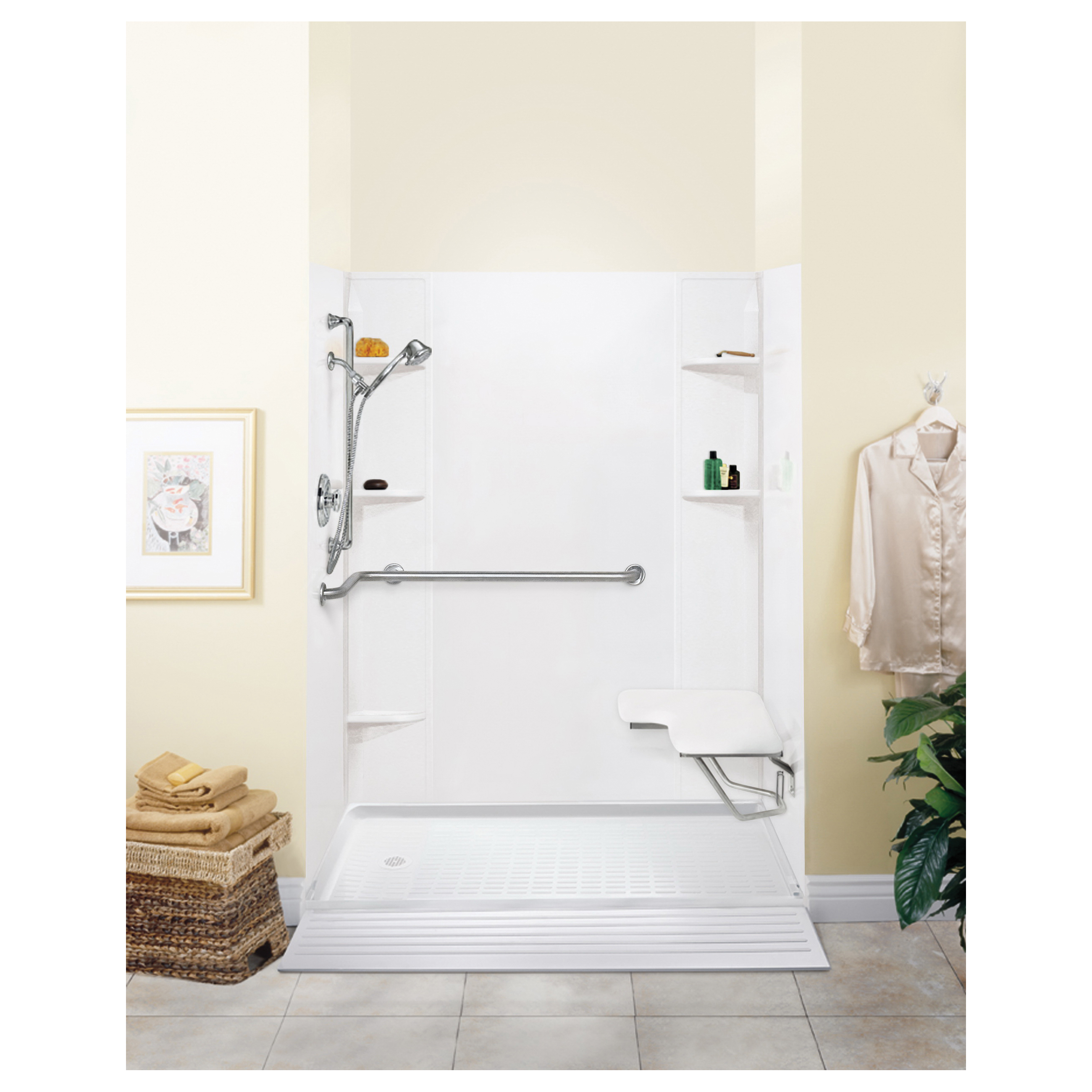

For those with mobility challenges, the curbless Model 360 Barrier-Free Shower Floor and Optional 360.100 Entry-Ramp enables effortless wheelchair access. Its 8-1/2 x 15 in drain offset and Left hand or Right hand drain placement (matching that of a standard bathtub), provides for convenient installation or retrofit in a standard 30 x 60 in bathtub alcove. Possessing a clean, contemporary design, the Model 360 Barrier-Free shower floor and 360.100 entry ramp (order separately) from E.L. Mustee & Sons, Inc. creates a multitude of floor plan design options.
