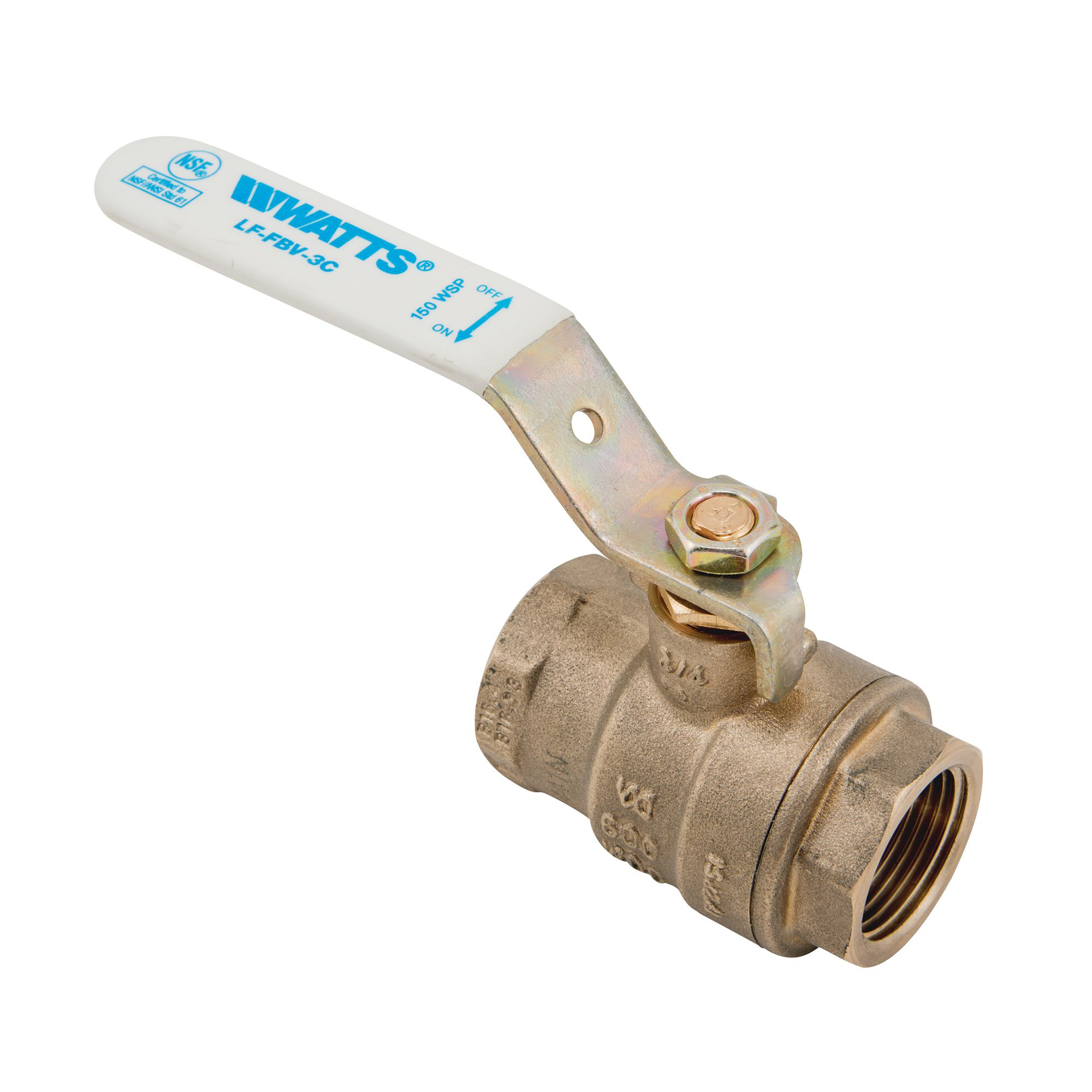

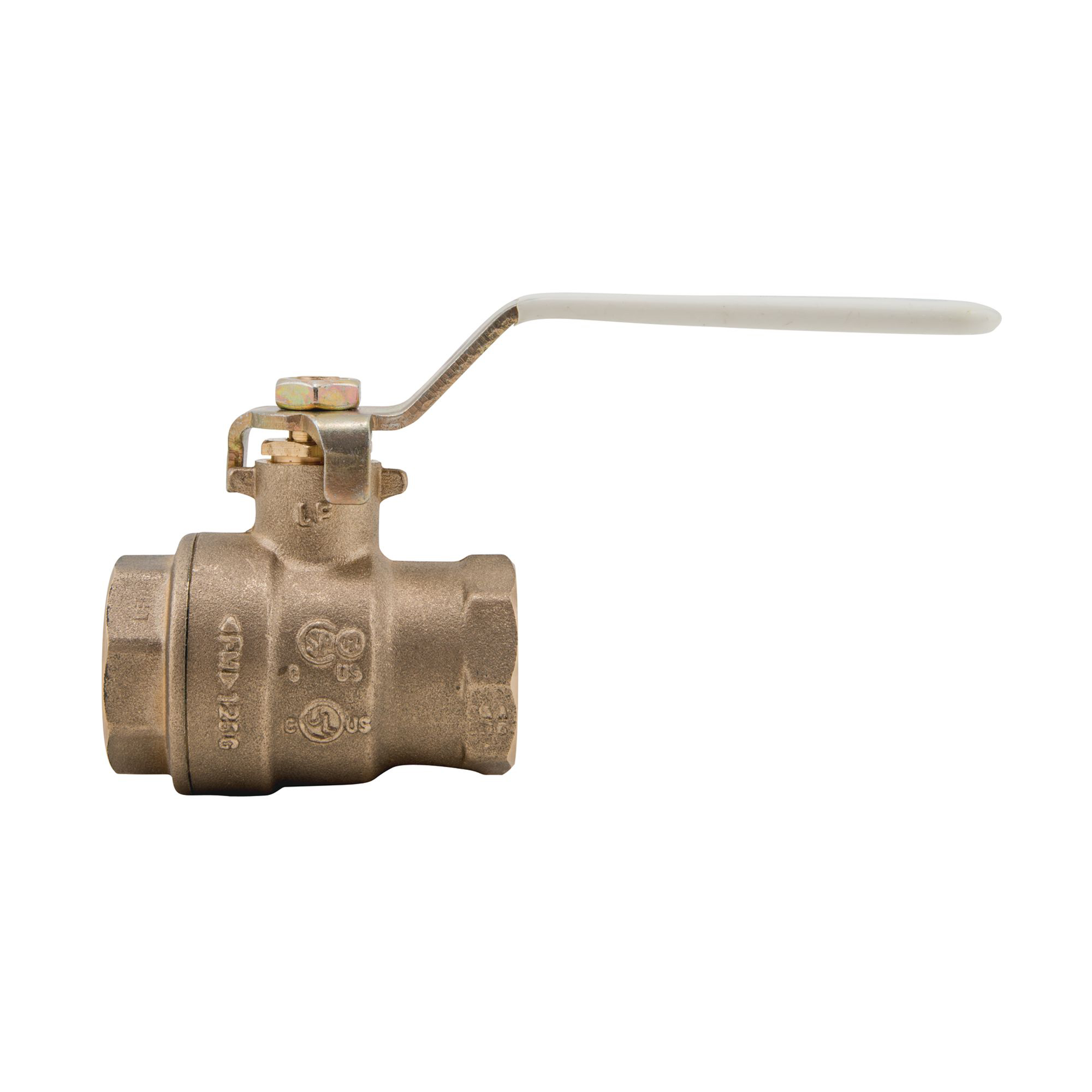

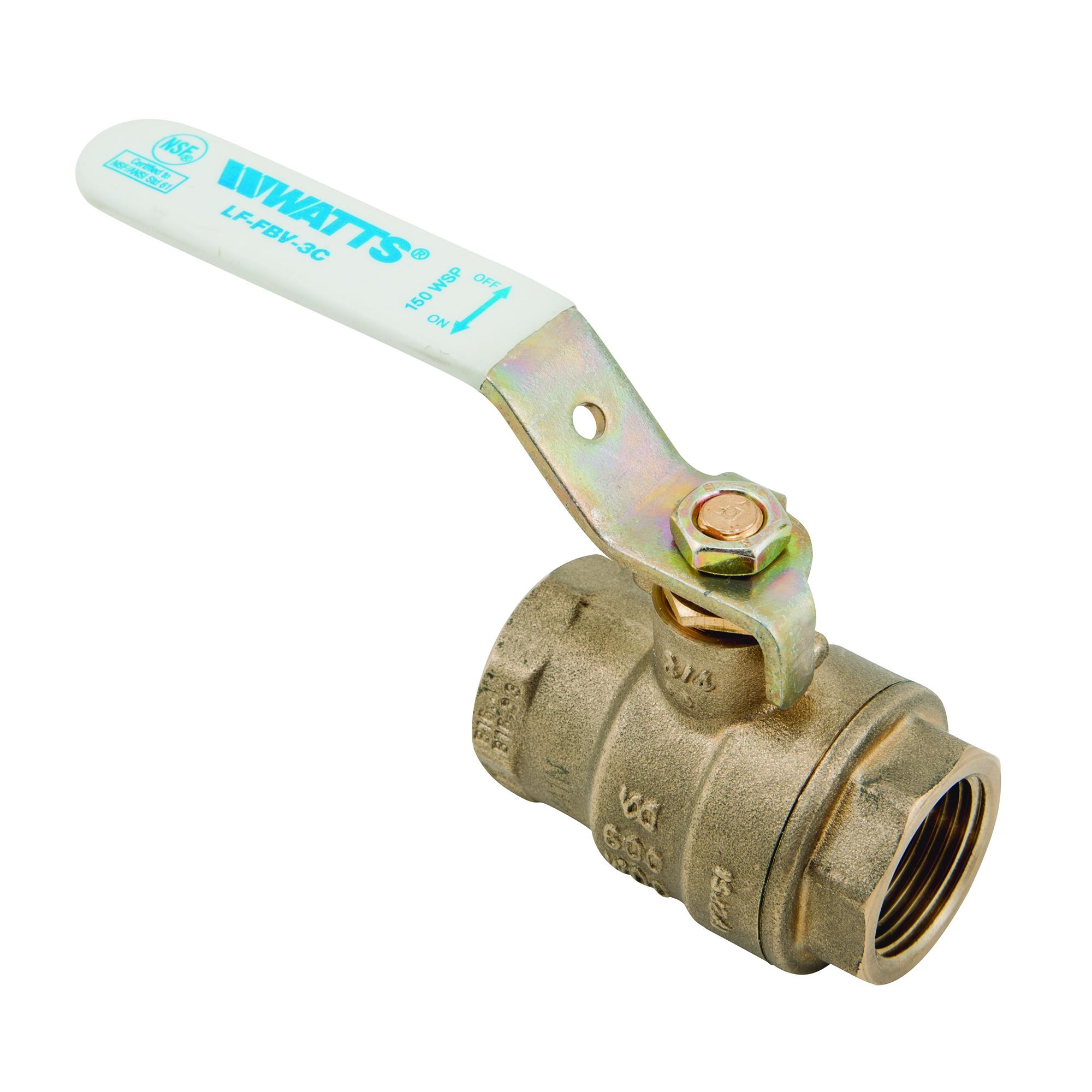

Series LFFBV-3C, LFFBVS-3C Lead Free 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, copper silicon alloy brass adapter, and steel handle. Model LFFBV-3C has threaded end connections. Model LFFBVS-3C has solder end connections.
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C, 1 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 2-13/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Silicon Alloy Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/PTFE Softgoods, Import
Type
|
:
|
2-Piece
|
Series
|
:
|
LFFBV-3C
|
Nominal Size
|
:
|
1 in
|
End Style
|
:
|
FNPT
|
Pressure Rating
|
:
|
600 psi
|
Temperature Rating
|
:
|
-40 to 400 deg F
|
Port Type
|
:
|
Full
|
Media
|
:
|
Gas/Liquids
|
Ball Material
|
:
|
Chrome Plated Brass
|
Top to Inlet Center
|
:
|
2-5/8 in
|
Body Material
|
:
|
Silicon Alloy
|
Trim Material
|
:
|
Brass Stem and PTFE Seat
|
Softgoods Material
|
:
|
Fluorocarbon/PTFE
|
Domestic/Import
|
:
|
Import
|
- Lead free forged copper silicon alloy body and adapter
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland nut
- Bottom loaded, blow-out proof stem
- Machined chrome plated Lead free brass ball
- 150 psi steam working pressure
- Excessive heat can harm the seats
- After soldering, the packing nut may have to be tightened
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Forged copper silicon alloy body
- Fluorocarbon elastomer O-ring and PTFE stem packing seal/thrust washer
-
