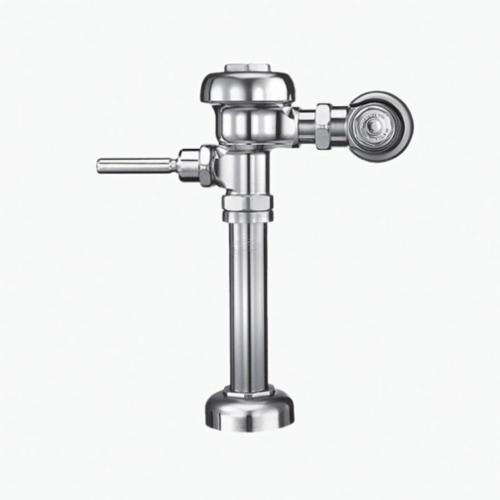

Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
| Type | : | Single-Flush |
| Series | : | 111 |
| Fixture Type | : | Water Closet |
| Flush Rate | : | 1.28 gpf |
| Inlet Size | : | 1 in IPS |
| Spud Coupling | : | 1-1/2 in |
| Rough-In Size | : | 11-1/2 in |
| Valve Design | : | Diaphragm |
| Connection Location | : | Top Spud |
| Pressure Rating | : | 15 to 80 psi |
| Handle Style | : | Non-Hold Open Oscillating |
| Material | : | Semi-Red Brass |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Domestic |
- Flush volumes start as low as 1.6 gpf/6.0 lpf to meet water-efficiency objectives
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
Data/Spec Sheet-1
