Oatey® 39223 31217
Send Print

Oatey® 39223

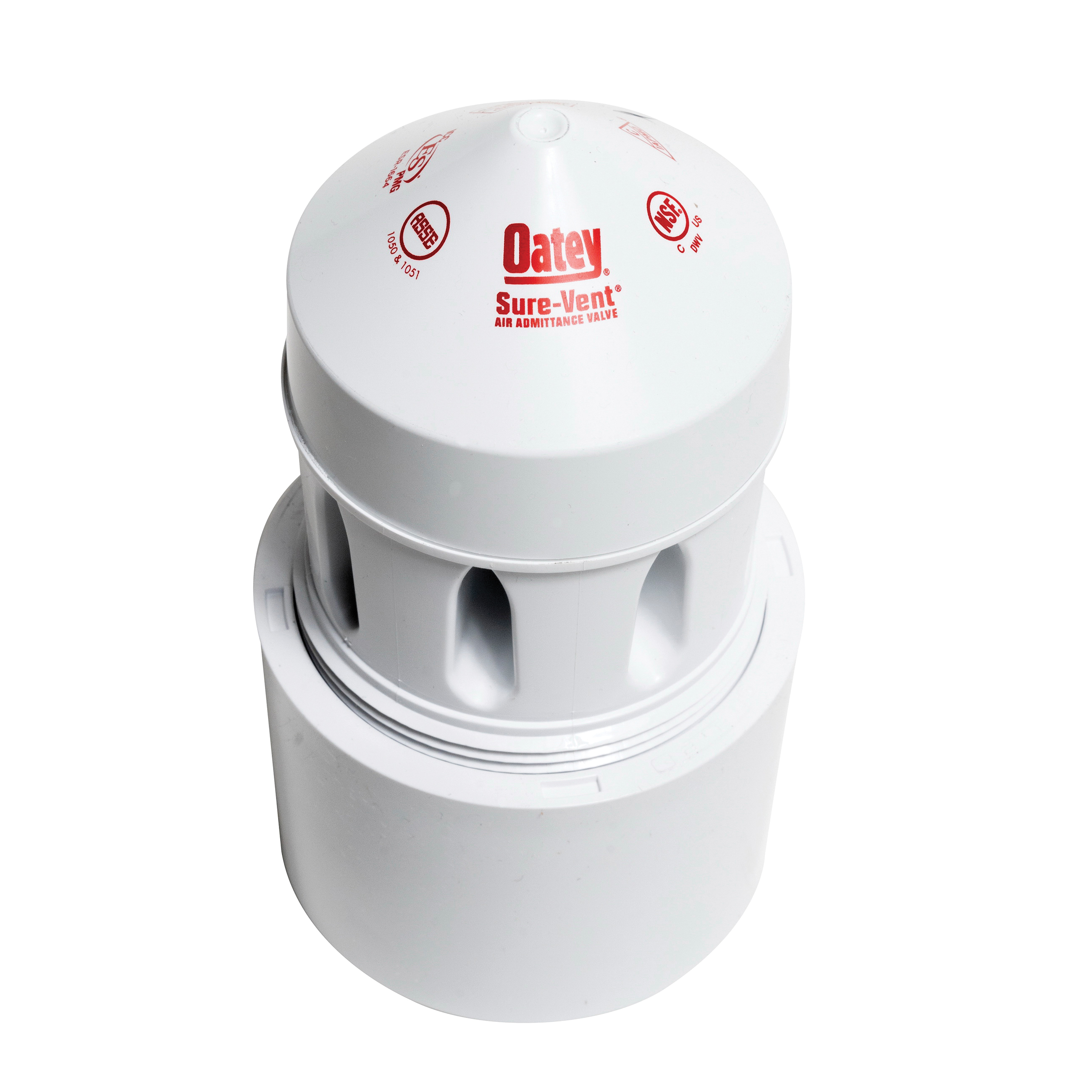

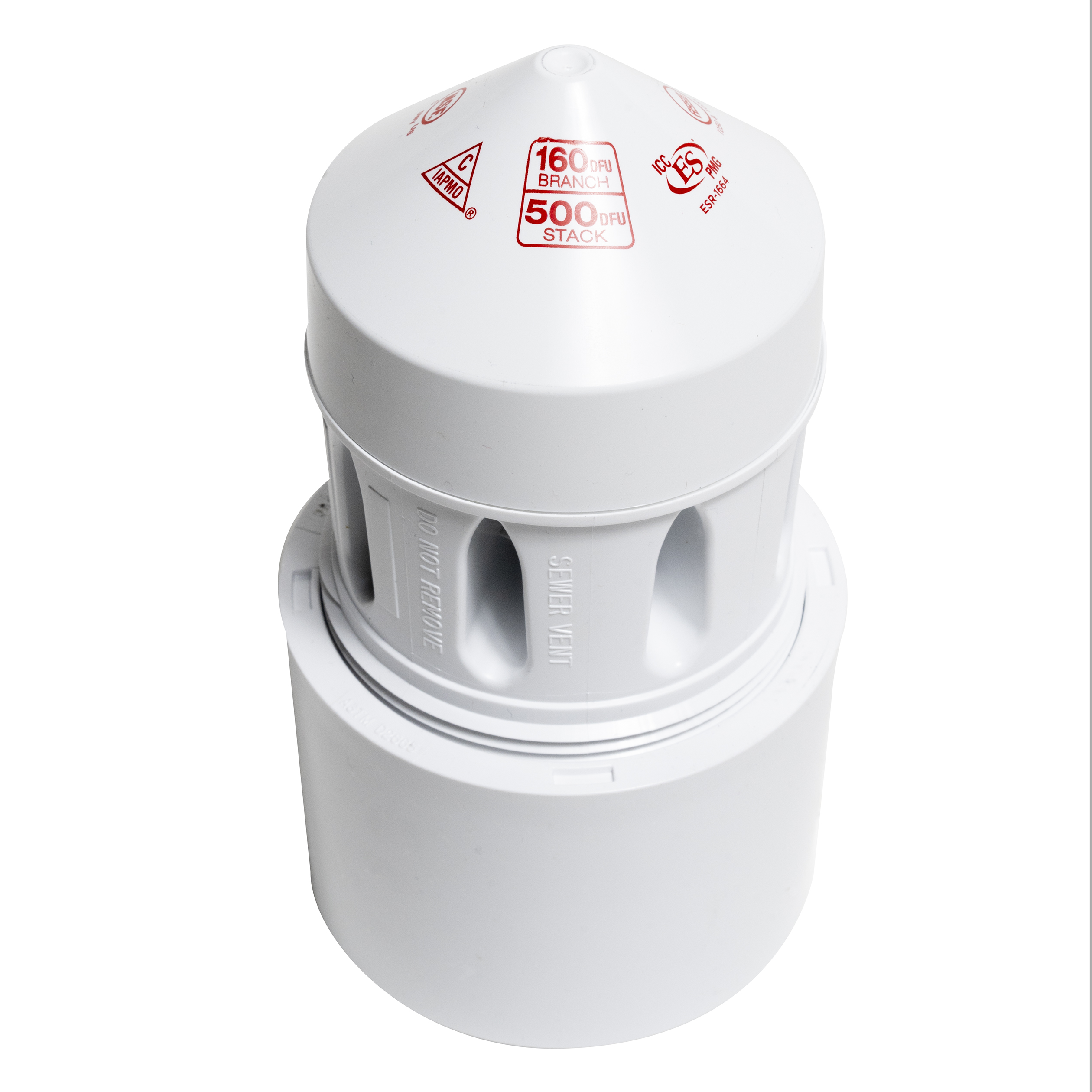

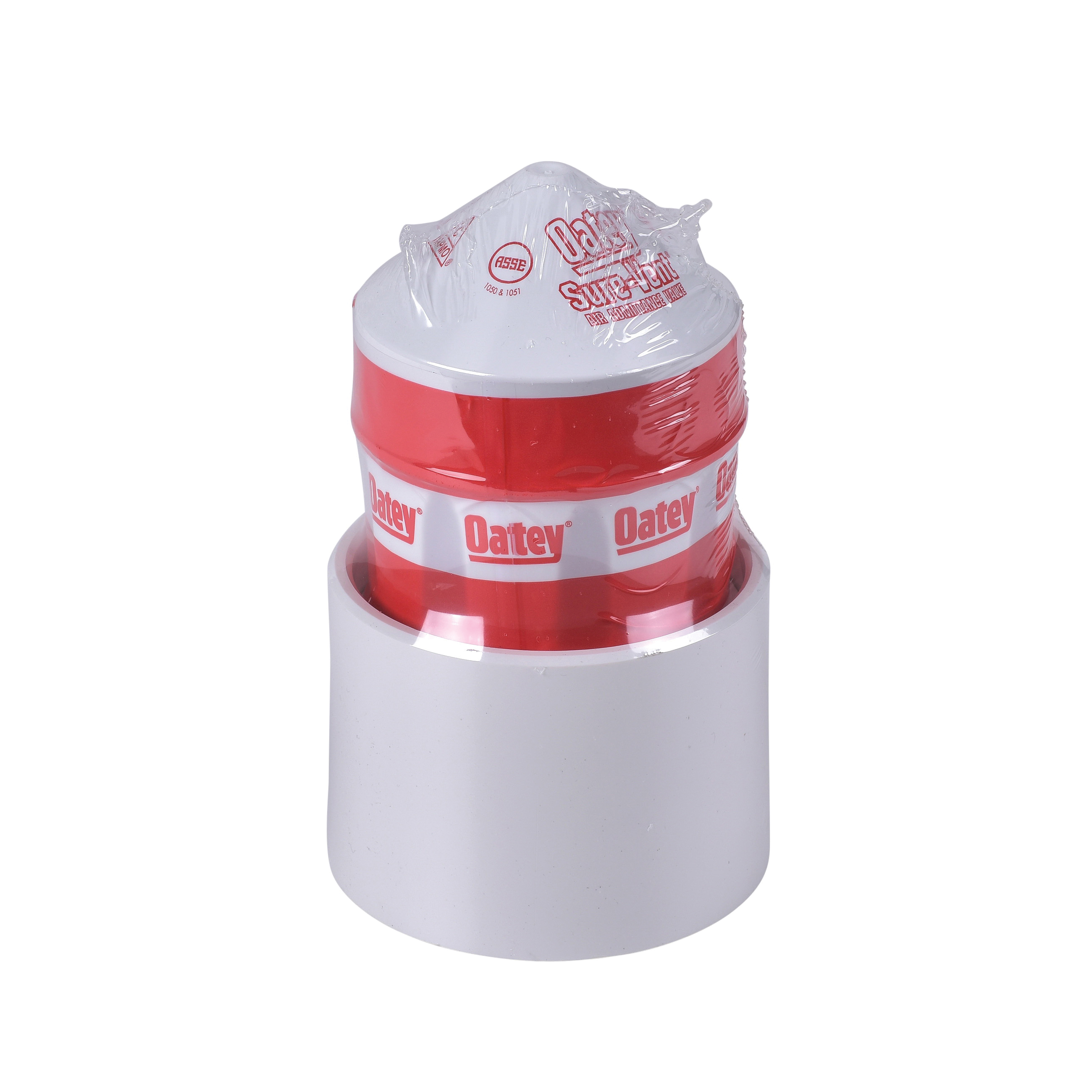

Oatey® Sure-Vent® 39223 Air Admittance Valve With 3 x 4 in SCH 40 PVC Adapter, 3 x 4 in Nominal, NPT End Style, 500 DFU Flow Rate, PVC Body, Domestic

  • MPN: 39223
  • TPN: 31217
  • UPC: 038753392233
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 6/CTN
  • Login to see Availability

Oatey® Sure-Vent® Air Admittance Valve, 3 x 4 in Nominal, NPT End Style, -40 to 150 deg F, 500 DFU Flow Rate, 2.92 in Inlet to Outlet Length, PVC Body, 7.23 in H, Domestic

Nominal Size      :      3 x 4 in
End Style      :      NPT
Temperature Rating      :      -40 to 150 deg F
Flow Rate      :      500 DFU
Inlet to Outlet Length      :      2.92 in
Body Material      :      PVC
Dimensions      :      7.23 in H
Domestic/Import      :      Domestic
  • For use as a secondary vent
  • One size approved to handle upto 4 in vent pipe
  • Opens/closes as needed by building's plumbing system
  • Sweet Spot™ technology opens at 0.01 psi and seals at 0 psi and above
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_31318_Catalog.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_39012_Specification_Sheet.pdf

Oatey® Sure-Vent® 500 DFU Capacity Air Admittance Valve's one-way valve is designed to allow air to enter the plumbing drainage system when negative pressures develop in the piping system.
