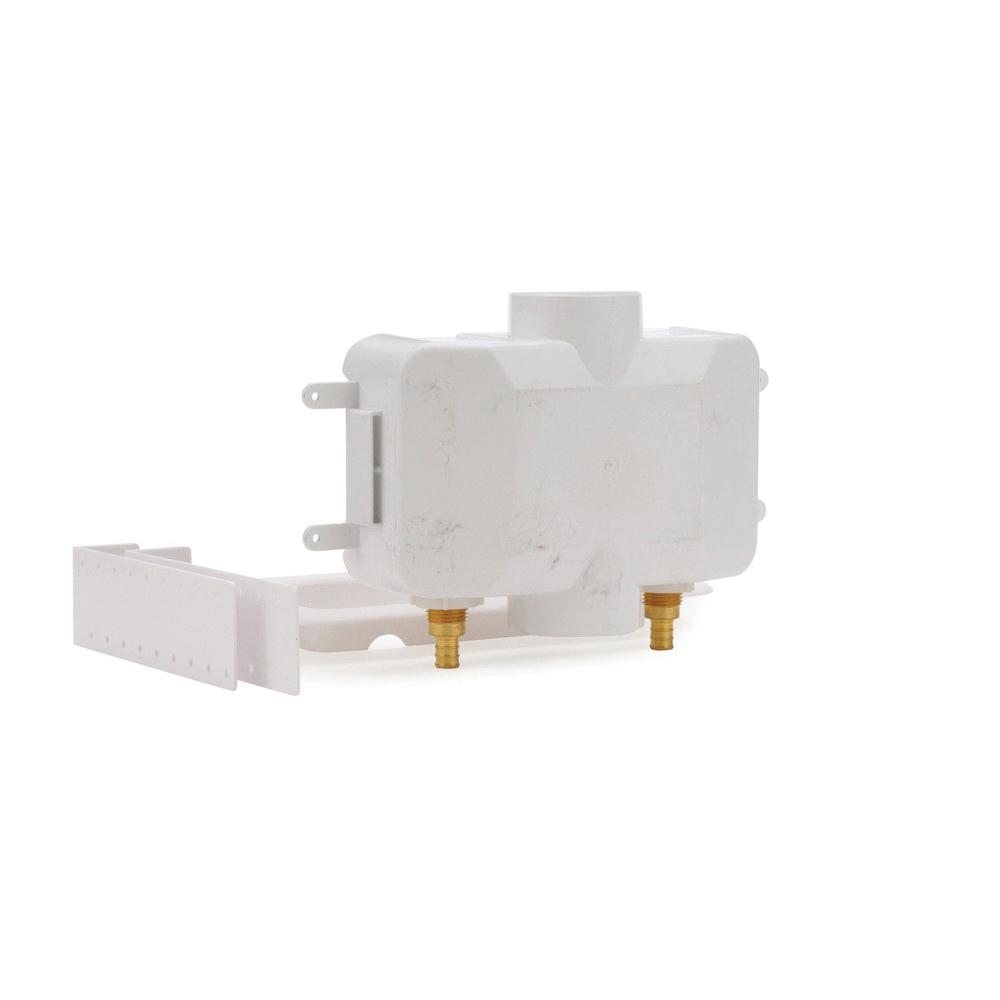

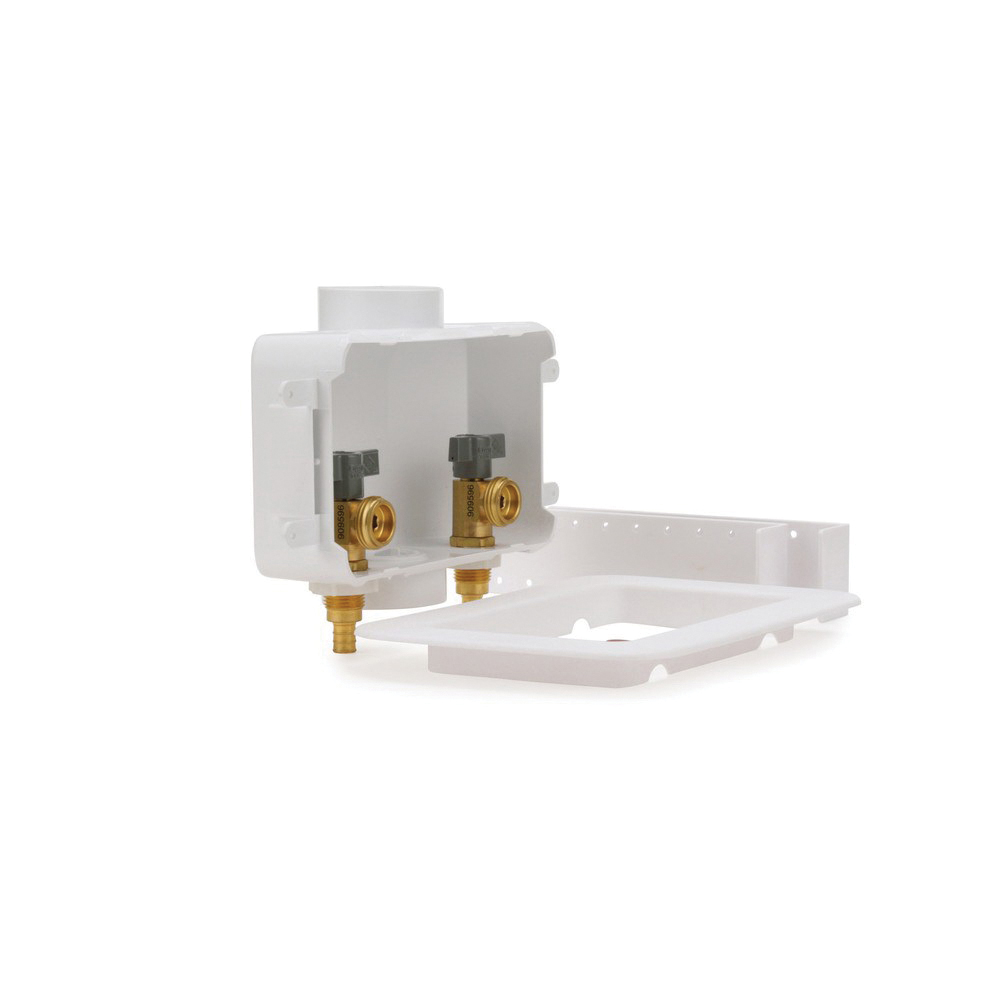

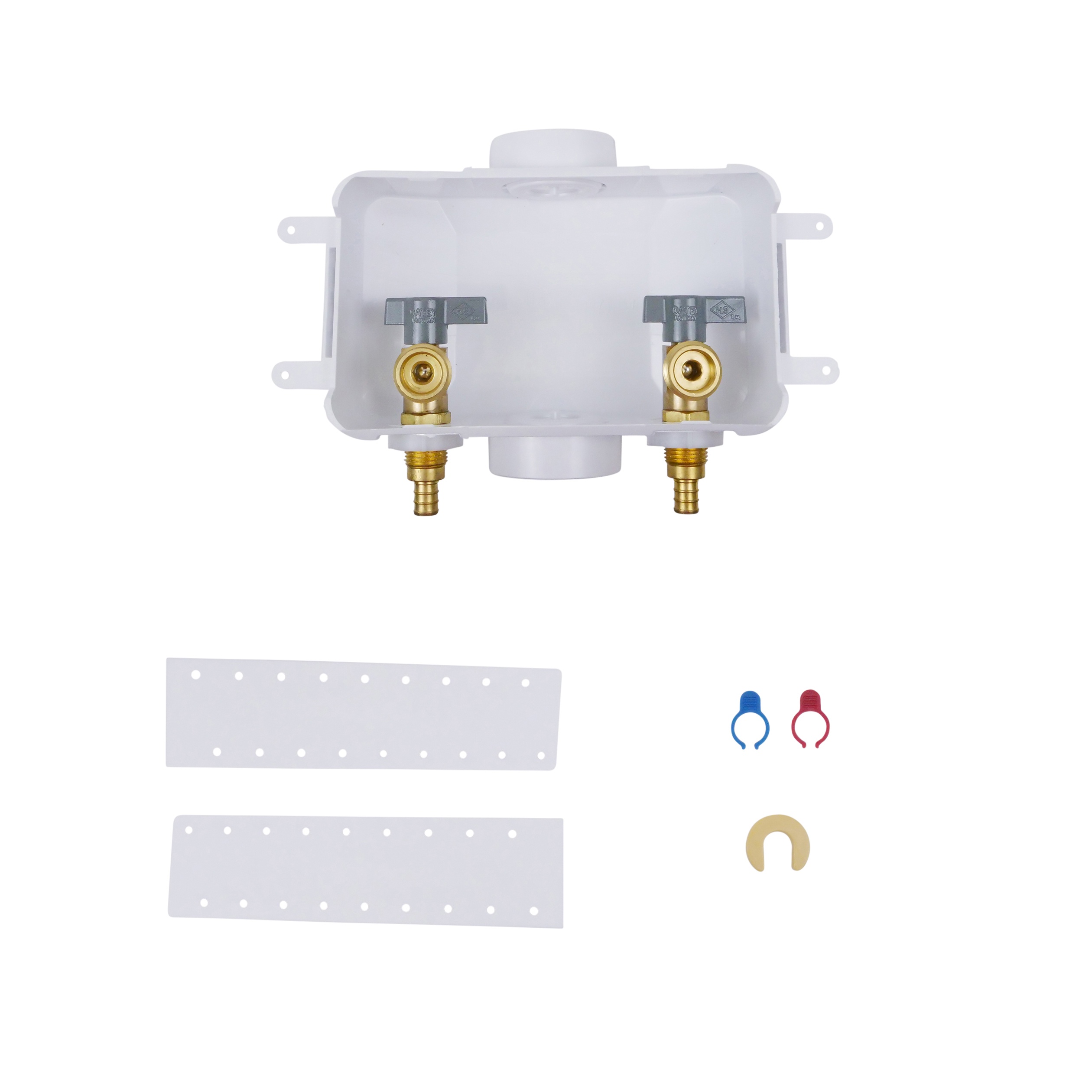

Oatey® Centro II washing machine outlet box takes up less space, fitting almost anywhere for commercial and residential applications. Made of PVC, it can be mounted with the valves on the top or bottom.
Oatey® Centro II Outlet Box, For Use With: Washing Machine, Specifications: PEX Connection, PVC, 8 in W x 3 in D x 4-3/4 in H, Import
| Suitable For Use With | : | Washing Machine |
| Specifications | : | PEX Connection |
| Material | : | PVC |
| Dimensions | : | 8 in W x 3 in D x 4-3/4 in H |
| Domestic/Import | : | Import |
- Compact design is perfect for tight space installation
- Box is constructed of rigid and durable PVC
- Knockout drain caps are located on top and bottom of box to accommodate multiple mounting options
- 2 in drain hubs
- Quarter turn valves come uninstalled or installed and can be mounted on top or bottom of box
- Two support brackets made of high impact polystyrene to secure the box to the studs
- Mounting holes enable box to be secured directly to stud on either side
- Paintable faceplate gives a clean and finished look
- Brackets and faceplate made of HIPS
- Two knockout drain caps
- 2 in socket hubs
- Mountable with valves on top or bottom
- 10 in W x 6-3/4 in H faceplate
- Takes up less space and will fit almost anywhere
