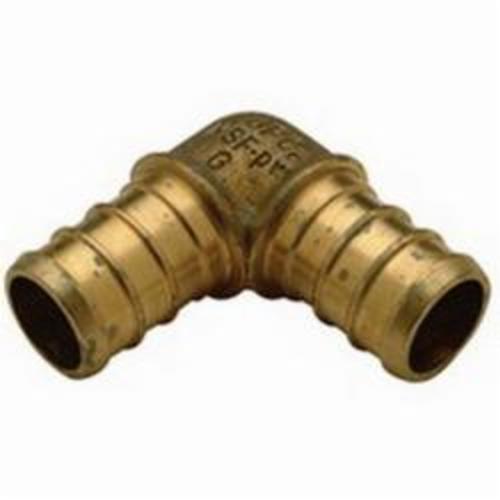

Zurn® ZURN PEX® XL Hose Elbow, Fitting/Connector Type: 90 deg Elbow, 1 in Nominal Size, PEX Barb, 160 psi, Brass, 200 deg F, 1.82 in W x 1.86 in H

• Easy installation
• Barb geometry will vary depending upon barb size
• For use with PEX tubing
• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
• ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing

• Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QQC33GX_Manual.pdf
• Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Manual.pdf
• Instruction/Installation Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Instruction_Installation.pdf
• Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QAFA33FQP_Warranty.pdf
• Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf
• Warranty https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf

Zurn PEX® XL-Low Lead Brass Barb Elbow. The QQE_GX is used to make sharp 90 deg bends. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
