Zurn® PEX QQMC44GX 37473
Send Print

Zurn® PEX QQMC44GX

Zurn® QQMC44GX Adapter, 3/4 in, Barb x MNPT, Brass

  • MPN: QQMC44GX
  • TPN: 37473
  • UPC: 084169016478
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 50/BG
  • Login to see Availability

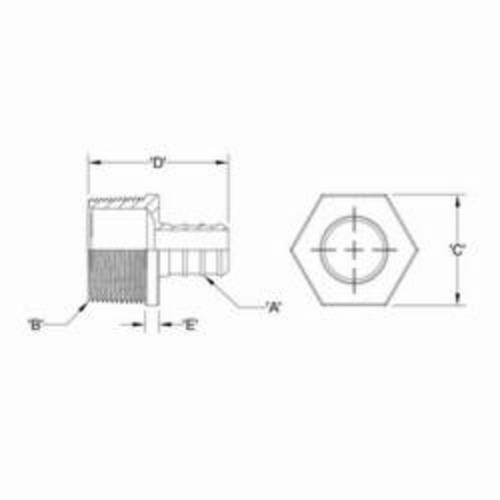

Zurn® Adapter, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Barb x MNPT, 1.06 in A/F Hex, 1.56 in Length, 80 psi, Brass, 200 deg F

Fitting/Connector Type      :      Adapter
Nominal Size      :      3/4 in
End Style      :      Barb x MNPT
Hex Size      :      1.06 in A/F
Length      :      1.56 in
Pressure Rating      :      80 psi
Material      :      Brass
Temperature Rating      :      200 deg F
  • Easy installation
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
  • pdf Data/Spec Sheet-1 https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Industries_QQMC33GX_Data_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QQC33GX_Manual.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Manual.pdf
  • pdf Instruction/Installation Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Instruction_Installation.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_Industries_QQMC33GX_Specification_Sheet.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Industries_QQMC33GX_Specification_Sheet.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QAFA33FQP_Warranty.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf
  • pdf Warranty https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf

Zurn PEX® XL-Low Lead Brass Barb x MPT Adapter. The QQMC_GX adapter is used to transition from female pipe thread to PEX tubing. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5 and ASTM F1807.
