Oatey® 38104 47975
Send Print

Oatey® 38104

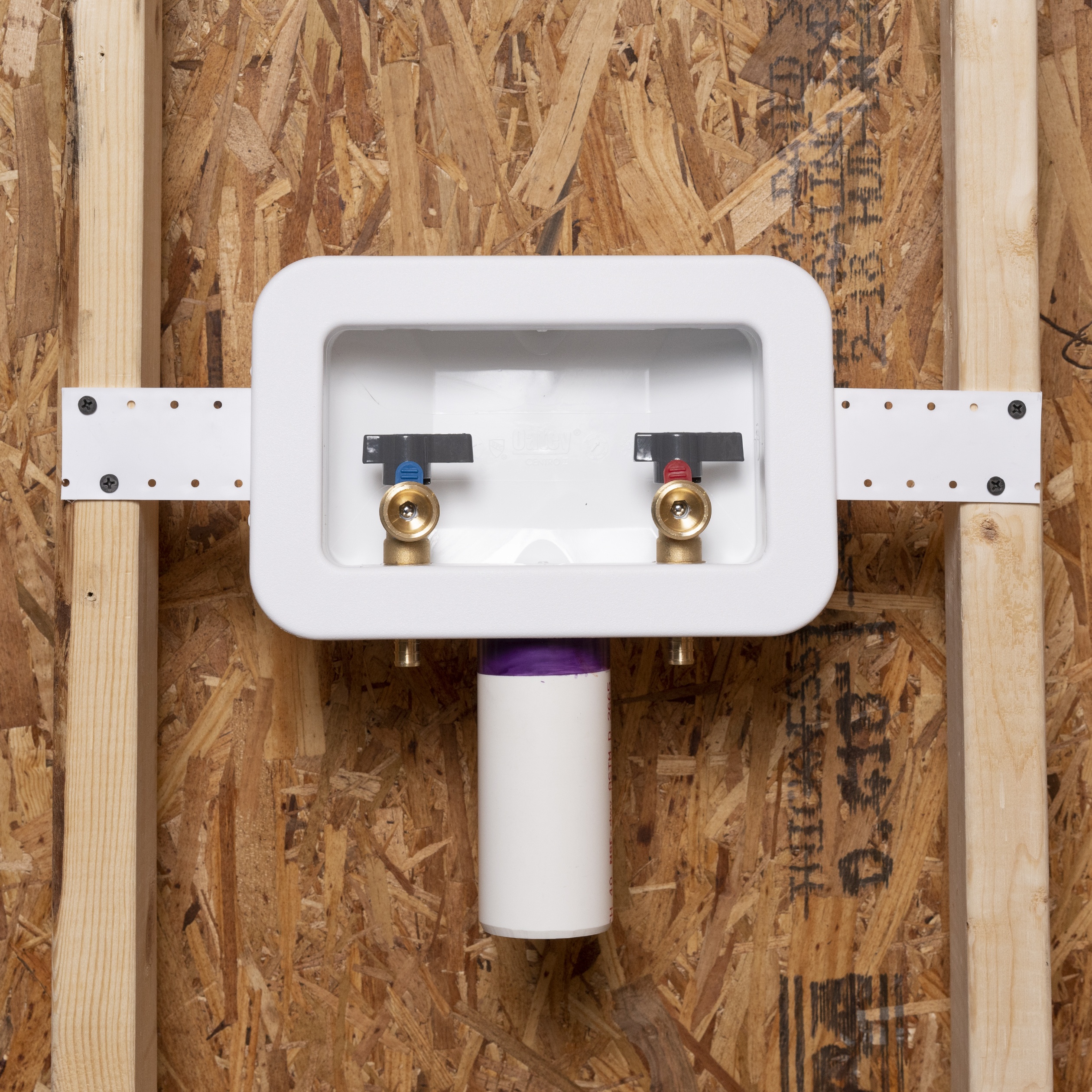

Oatey®38104 Centro II Outlet Box, For Use With Washing Machine, PVC, Import

  • MPN: 38104
  • TPN: 47975
  • UPC: 038753381046
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: BOX
  • Login to see Availability

Oatey® Outlet Box, Series: Centro II, For Use With: Washing Machine, PVC, 8 in W x 3 in D x 4-3/4 in H, Import

Series      :      Centro II
Suitable For Use With      :      Washing Machine
Material      :      PVC
Dimensions      :      8 in W x 3 in D x 4-3/4 in H
Domestic/Import      :      Import
  • 2 in drain opening fits PVC or ABS Schedule 40 DWV pipe
  • Compact design is perfect for tight space installation
  • Knockout drain caps are located on top and bottom of box to accommodate multiple mounting options and are removed effortlessly for easy installation
  • Two 1/4-turn valves come installed and can be mounted on top or bottom of box
  • Mounting holes enable box to be secured directly to stud on either side with two support brackets made of high impact polystyrene
  • Paintable faceplate gives a clean and finished look
  • Connects to PEX supply line with F1960 cold expansion connection
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_38104_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_38104_Specification_Sheet.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_25215_Catalog.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_25215_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_38104_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Harvey_38104_Specification_Sheet.pdf

The Oatey® Centro II Washing Machine Outlet Box takes up less space, fitting almost anywhere for commercial and residential applications. It is made of durable PVC and can be mounted with the valves on the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.
