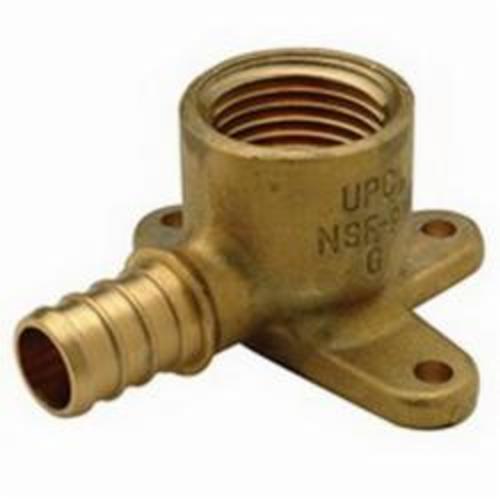

Zurn PEX® XL- Low Lead Drop Ear Elbow. The QQDE_BFGX is used to connect PEX to FPT drop ear elbow. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
Zurn® ZURN PEX® XL Drop-Ear Elbow, 90 deg Drop-Ear Elbow Fitting/Connector, 1/2 in Nominal, Barb x FNPT End Style, 160 psi Pressure, Brass, 73 deg F, 2.05 in W x 1.13 in H Dimensions
| Fitting/Connector Type | : | 90 deg Drop-Ear Elbow |
| Nominal Size | : | 1/2 in |
| End Style | : | Barb x FNPT |
| Pressure Rating | : | 160 psi |
| Material | : | Brass |
| Temperature Rating | : | 73 deg F |
| Dimensions | : | 2.05 in W x 1.13 in H |
- Easy installation
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
