Zurn® PEX QQT775GX 46408
Send Print

Zurn® PEX QQT775GX

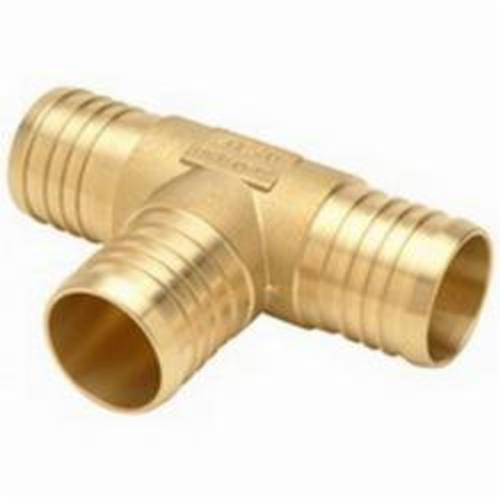

Zurn® ZURN PEX® XL QQT775GX Hose Tee, 1-1/2 x 1-1/2 x 1 in, PEX Barb, Brass

  • MPN: QQT775GX
  • TPN: 46408
  • UPC: 084169014900
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 10/PK
  • Login to see Availability

Zurn® ZURN PEX® XL Hose Tee, Fitting/Connector Type: Tee, 1-1/2 x 1-1/2 x 1 in Nominal Size, PEX Barb, 3.43 in Length, 80 to 160 psi, Brass, 73 to 200 deg F, 2.32 in H

Fitting/Connector Type      :      Tee
Nominal Size      :      1-1/2 x 1-1/2 x 1 in
End Style      :      PEX Barb
Length      :      3.43 in
Pressure Rating      :      80 to 160 psi
Material      :      Brass
Temperature Rating      :      73 to 200 deg F
Dimensions      :      2.32 in H
  • Easy installation
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
  • pdf Data/Spec Sheet-1 https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Industries_QQT333GX_Data_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QQC33GX_Manual.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Manual.pdf
  • pdf Instruction/Installation Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QQC33GX_Instruction_Installation.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_Industries_QQT333GX_Specification_Sheet.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Industries_QQT333GX_Specification_Sheet.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Zurn_QAFA33FQP_Warranty.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf
  • pdf Warranty https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_QAFA33FQP_Warranty.pdf

Zurn PEX® XL-Low Lead Brass Barb Tee. The QQT_GX is used to branch off the main line or change direction. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F, and 80 psi at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
