WATTS® 0881376

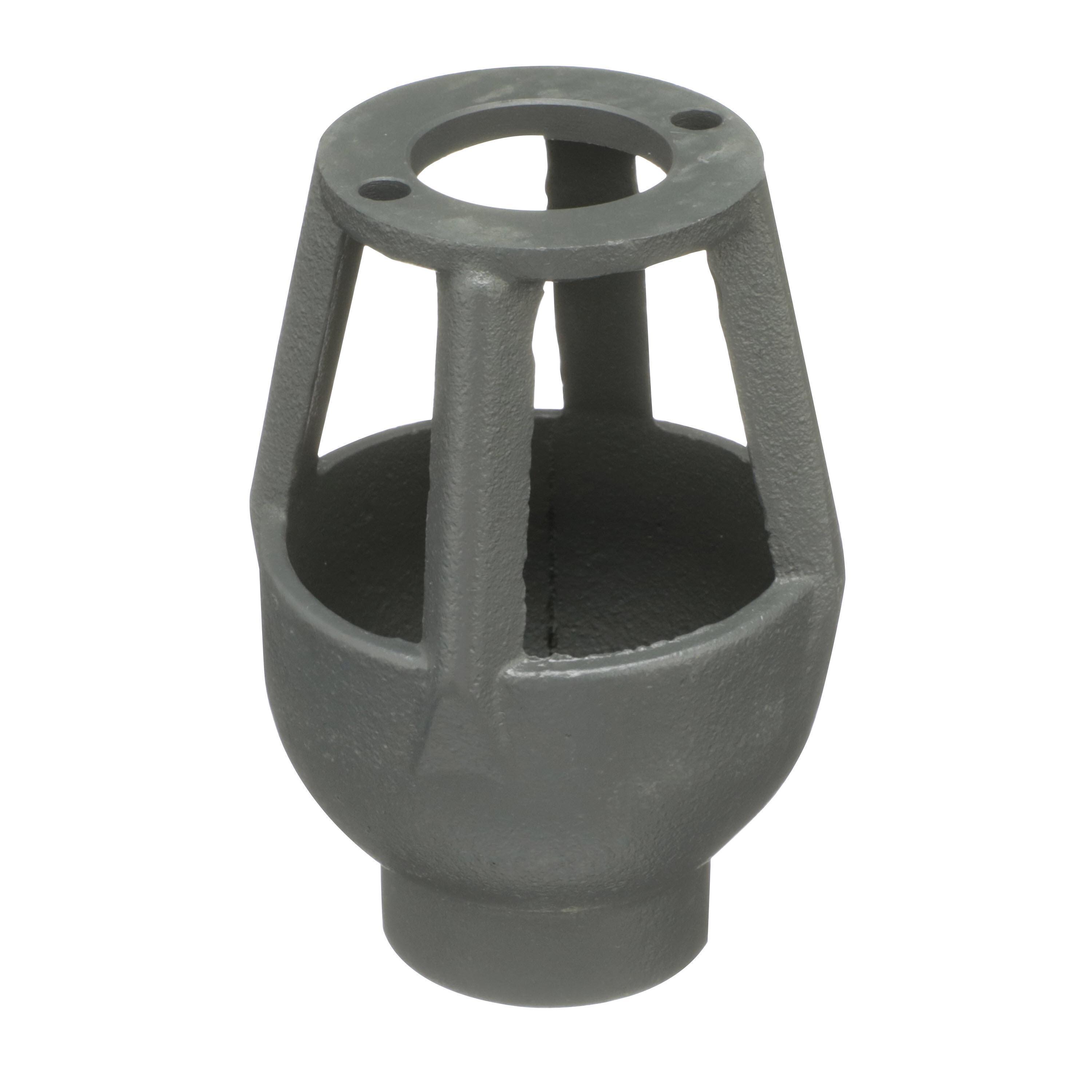

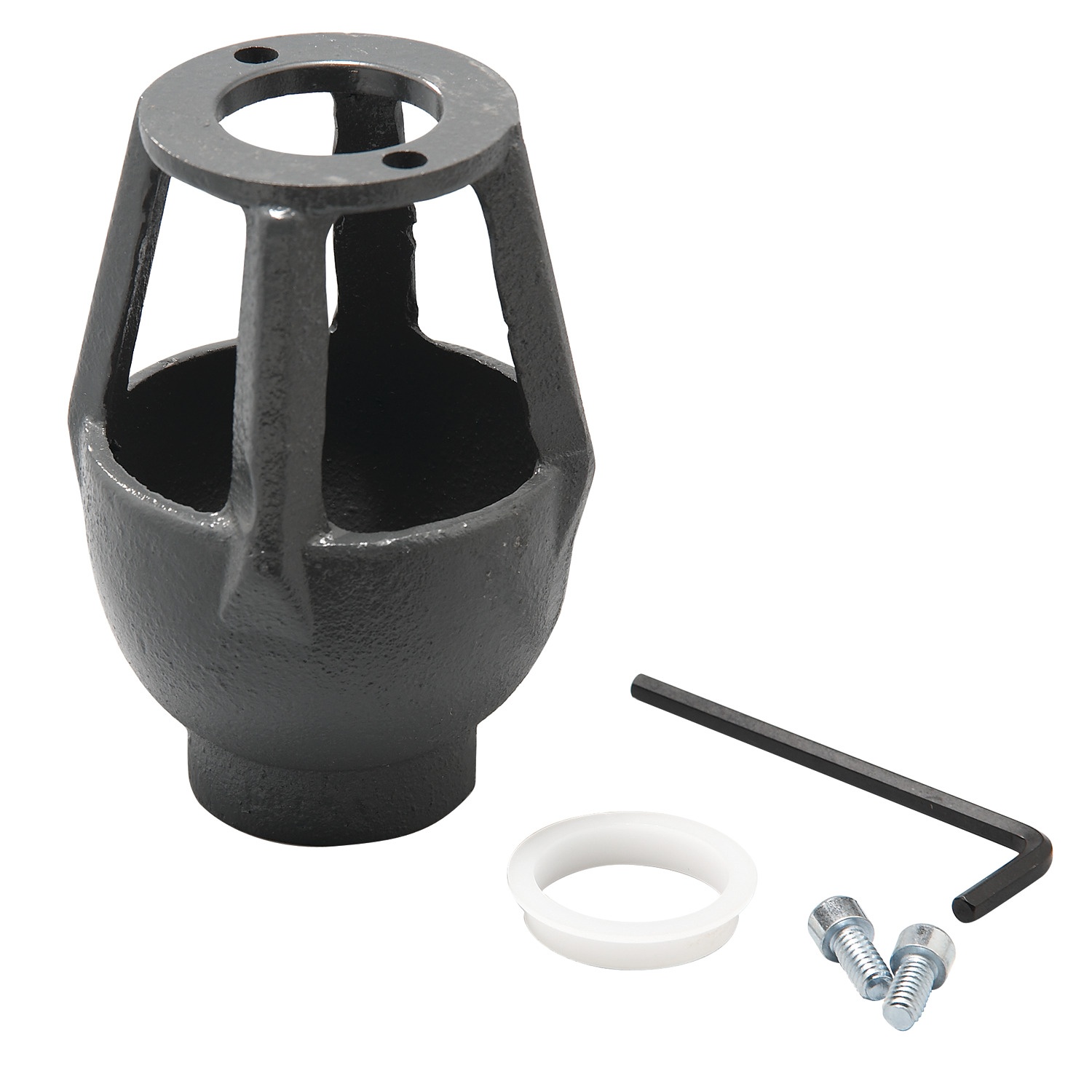

WATTS® 0881376 009 Air Gap, For Use With Model 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly, 1 in FNPT, Cast Iron, Import

  • MPN: 0881376
  • TPN: 34549
  • UPC: 098268104950
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

WATTS®, 0881376, Air Gap, Series: 009, For Use With: Model 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly, Specifications: 1 in FNPT, Cast Iron, 3-1/4 in W x 4-7/8 in H Dimensions, Import

Series      :      009
Suitable For Use With      :      Model 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly
Specifications      :      1 in FNPT
Material      :      Cast Iron
Dimensions      :      3-1/4 in W x 4-7/8 in H
Domestic/Import      :      Import
  • Diverts nuisance discharge
  • Durable coating
  • Metal construction
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0881385_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0888845_Specification_Sheet.pdf

This air gap for reduced pressure zone assembly, 3/4-1 in series 009 and 909, 1-1-1/2 in series 009M2 and 1-1/4 to 2 in series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).
