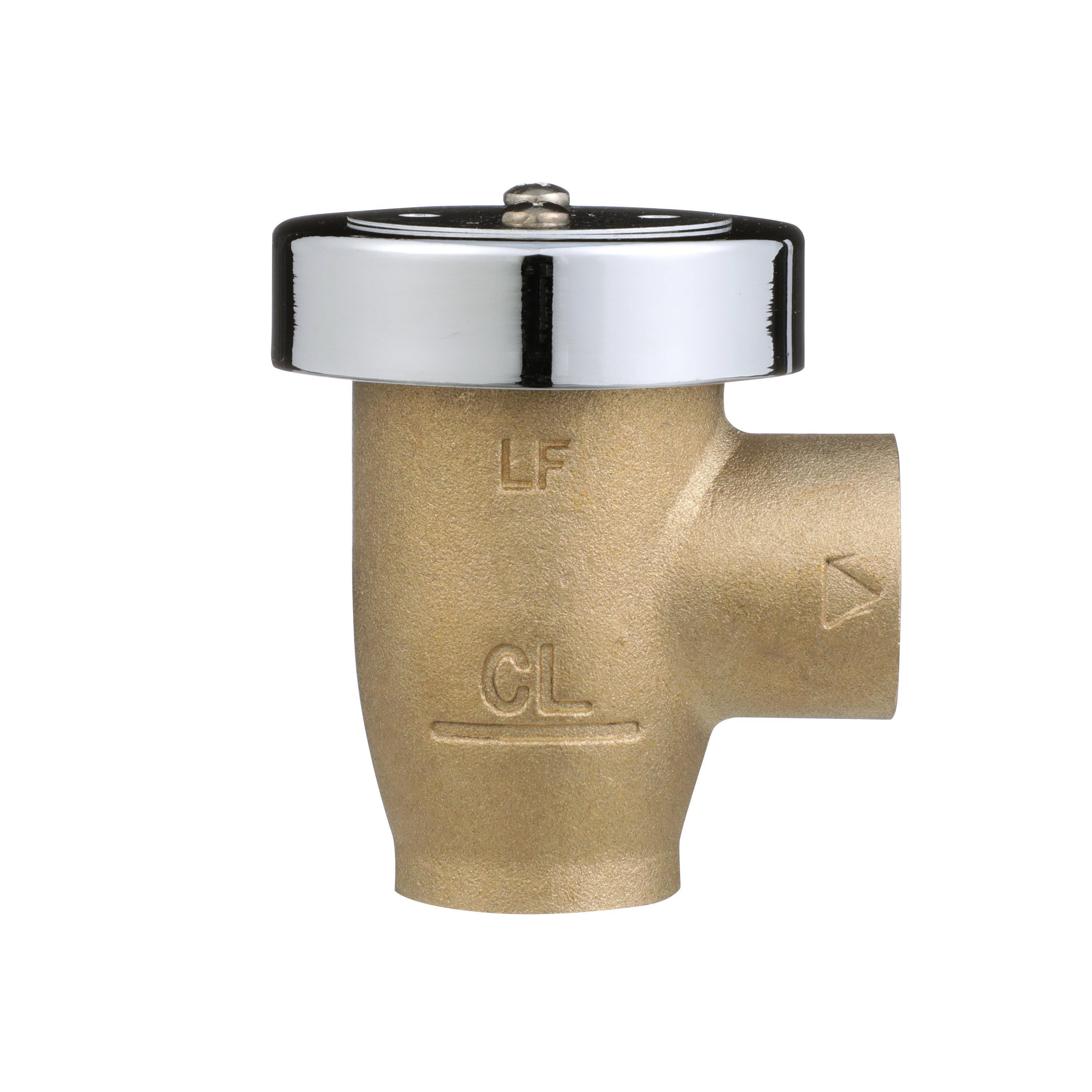

WATTS®, 0792038, Vacuum Breaker, Anti-Siphon, Series: LF288A, 1/2 in Nominal, FNPT End Style, 125 psi Pressure, 180 deg F, Vacuum Breaker Backflow, Media: Hot/Cold Water, Brass Body, 2 in L Dimensions, Import
| Type | : | Anti-Siphon |
| Series | : | LF288A |
| Nominal Size | : | 1/2 in |
| End Style | : | FNPT |
| Pressure Rating | : | 125 psi |
| Temperature Rating | : | 180 deg F |
| Backflow Type | : | Vacuum Breaker |
| Media | : | Hot/Cold Water |
| Body Material | : | Brass |
| Dimensions | : | 2 in L |
| Domestic/Import | : | Import |
- Female NPT inlet and outlet
- Light weight disc assembly prevents spilling under all rates of flow
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Full size orifice for maximum flow
- Lead free construction
Instruction/Installation Manual
Series LF288A Lead Free Hot or Cold Water Anti-Siphon Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of Lead Free brass body construction (LF288A) or chrome finish (LF288AC), chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. Series LF288A has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum Pressure:125 psi (8.6 bar).
