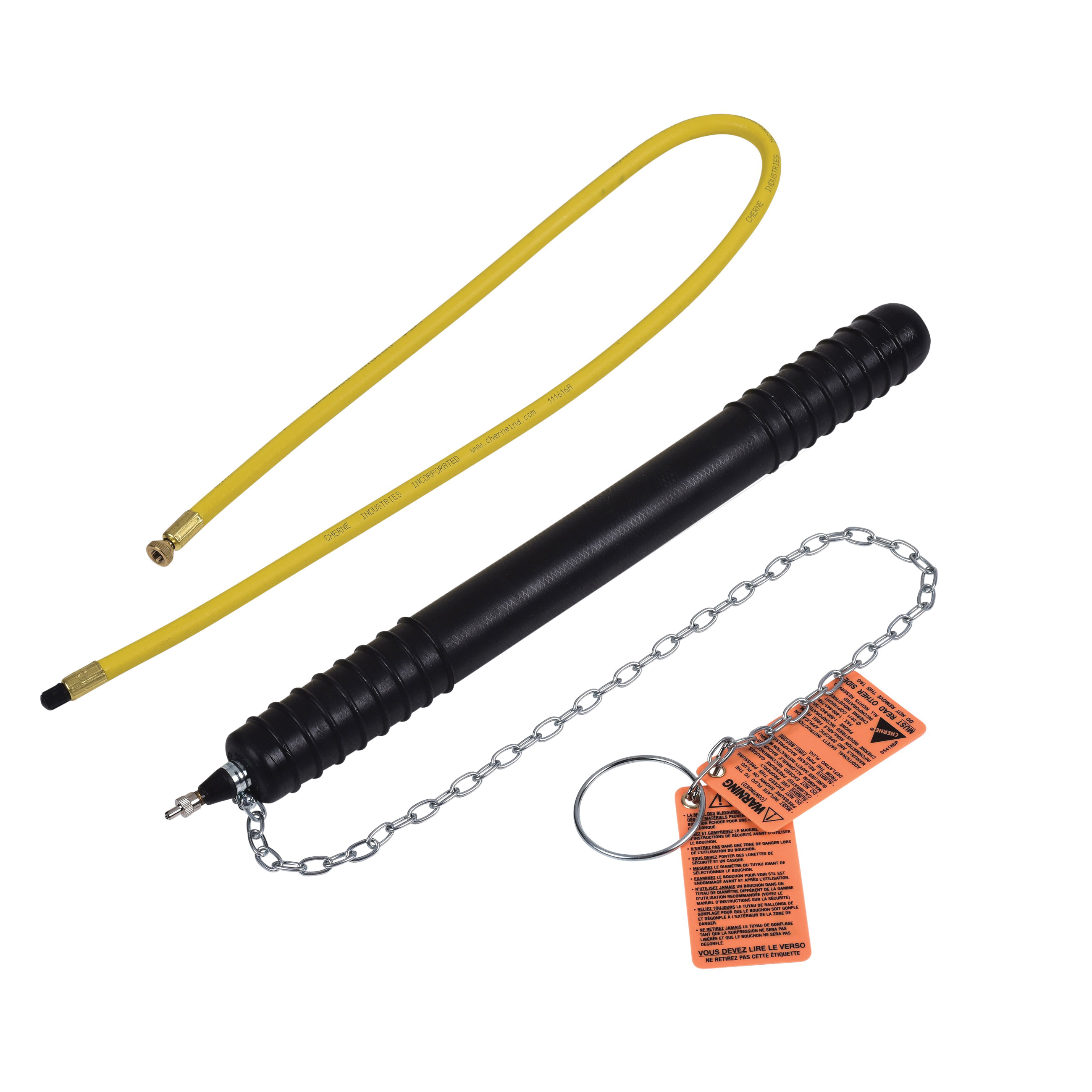

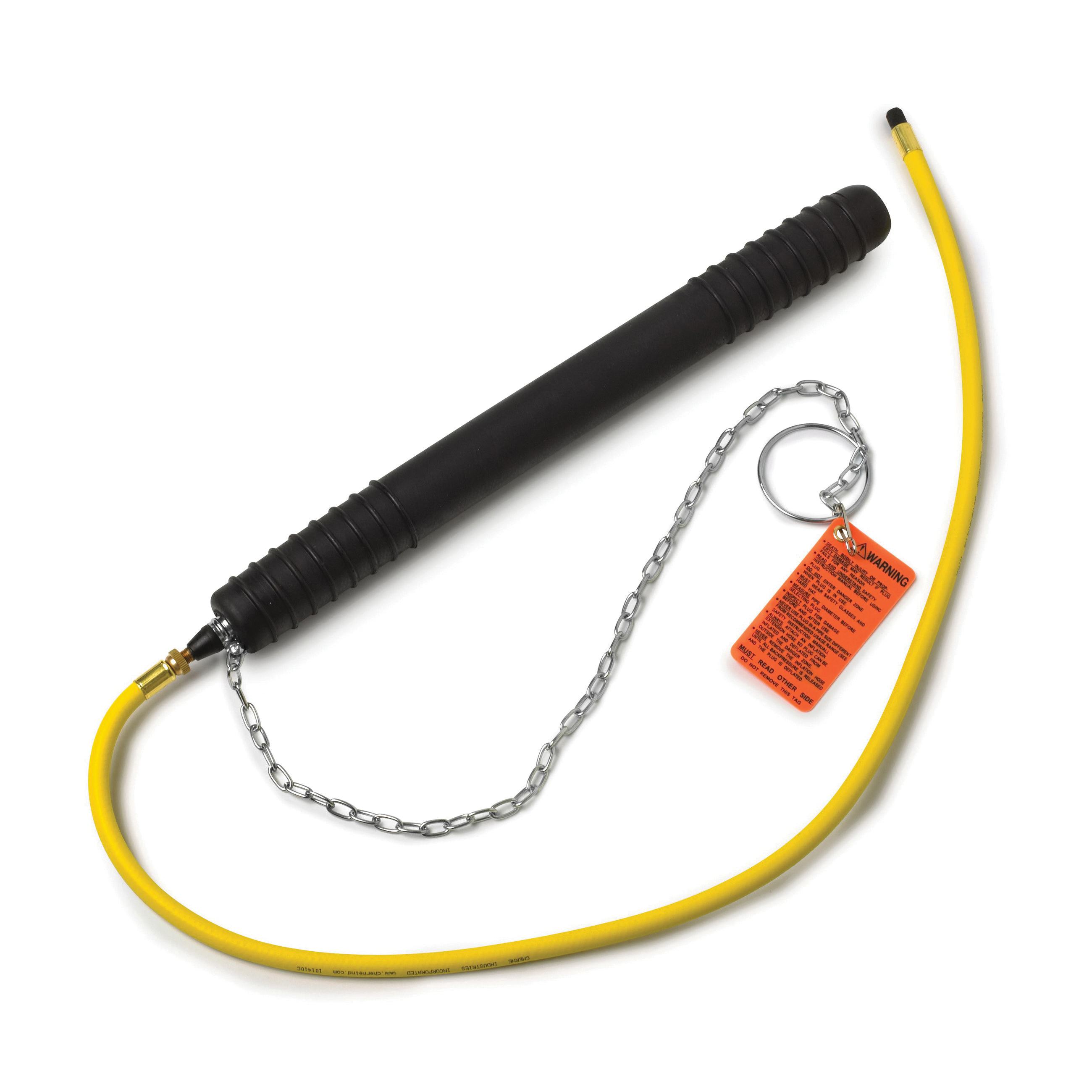

Cherne® Long Test-Ball® Pneumatic Pipe Plug, 2 in Nominal

• Cherne® long Test-Ball® plugs are designed for waste stack testing - sealing the rise and the run to perform the test and can be used to seal the wye to conduct sewer air tests
• Natural rubber construction provides an excellent seal
• Compatible with PVC pipes
• Makes sealing wye fittings easy when performing tests on DWV systems
• Withstands upto 13 psi or 30 ft of head pressure
• Ring and chain assembly help prevent the plug from being drawn into the DWV plumbing system during testing
• Designed for waste stack testing from floor drain to sewer pipe
• Long enough to seal wye vertical riser and sewer run
• Ring and chain assembly prevents plug from sliding down a line
• Molded in sealing ribs at both ends ensure a leak-free seal
• 1-1/2 in Dia deflated
• 18-1/4 in L deflated
• 45 psi inflation pressure
• 1-3/4 to 2-1/4 in usage range
• 30 ft head
• 13 psi maximum back pressure

• Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cherne_277118_Specification_Sheet.pdf
• Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_31318_Catalog.pdf

Cherne®'s Long Test-Ball® plugs are designed for waste stack testing-sealing the rise and the run to perform the test. These long ball plugs can also be used to seal the wye to conduct sewer air tests. Molded-in sealing ribs at each end of the plug ensure a leak-free seal.
