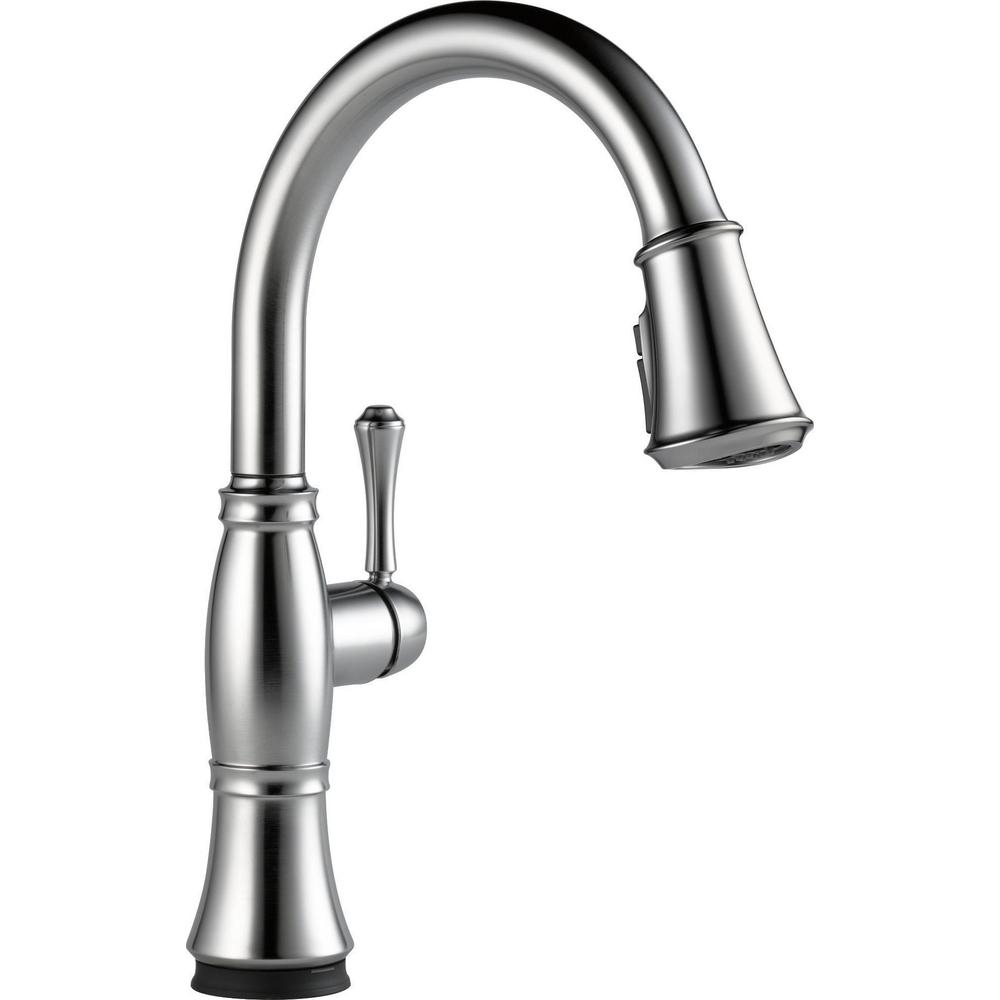

Classical design combines with modern technology in the Cassidy™ Kitchen Collection, featuring MagnaTite® Docking, Diamond™ Seal® and Touch2O® Technology.
DELTA® Kitchen Faucet, Cassidy™ Collection, 1.8 gpm Flow Rate, 8 in Center Distance, Pull-Down Spout, 9-3/8 in Spout Reach, 15-1/2 in Spout Height, 62 in Hose, Lever Handle, 1 Handles, 1/3 Faucet Holes, 1-1/4 in Faucet Hole, 3/8 in Connection, Compression Connection, Spray Pattern: Aerated Stream/Full Body, Function: Traditional, 2 Spray Functions, 2-1/2 in Maximum Deck Thickness, Deck Mounting, Euro-Motion DIAMOND™ Seal Valve, Zinc, Arctic™ Stainless Steel, Domestic, Commercial Commercial/Residential
Collection
|
:
|
Cassidyâ„¢
|
Flow Rate
|
:
|
1.8 gpm
|
Center Distance
|
:
|
8 in
|
Spout Type
|
:
|
Pull-Down
|
Spout Reach
|
:
|
9-3/8 in
|
Spout Height
|
:
|
15-1/2 in
|
Hose Size
|
:
|
62 in
|
Handle Style
|
:
|
Lever
|
Number of Handles
|
:
|
1
|
Number of Faucet Holes
|
:
|
1/3
|
Faucet Hole Size
|
:
|
1-1/4 in
|
Connection Size
|
:
|
3/8 in
|
Connection Type
|
:
|
Compression
|
Spray Pattern
|
:
|
Aerated Stream/Full Body
|
Number of Spray Functions
|
:
|
2
|
Maximum Deck Thickness
|
:
|
2-1/2 in
|
Mounting Type
|
:
|
Deck
|
Valve/Cartridge Type
|
:
|
Euro-Motion DIAMONDâ„¢ Seal Valve
|
Material
|
:
|
Zinc
|
Finish/Color
|
:
|
Arcticâ„¢ Stainless Steel
|
Domestic/Import
|
:
|
Domestic
|
Commercial/Residential
|
:
|
Commercial
|
- MagnaTite® docking keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet, so it stays docked when not in use
- Diamondâ„¢ seal technology features a valve embedded with Diamonds to ensure like-new operation for the life of the faucet
- Touch-Clean® spray holes allow for easy removal of hard water buildup
- 1 or 3-hole installation
- High-arc Pull-down swivels 360 deg for complete sink access
- Touch-Clean® 2-function wand operates in stream or spray mode
- 62 in braided hose ensures smooth operation
- Free-moving hose weight provides maximum reach
- 32 in (minimum) InnoFlex® supply lines with 3/8 in compression fittings
- Hot cold markings on handle to indicate temperature
- ADA compliant lever handle
- Euro-Motion handle only rotates forward to eliminate backsplash interference
- 1.8 gpm at 60 psi
-
