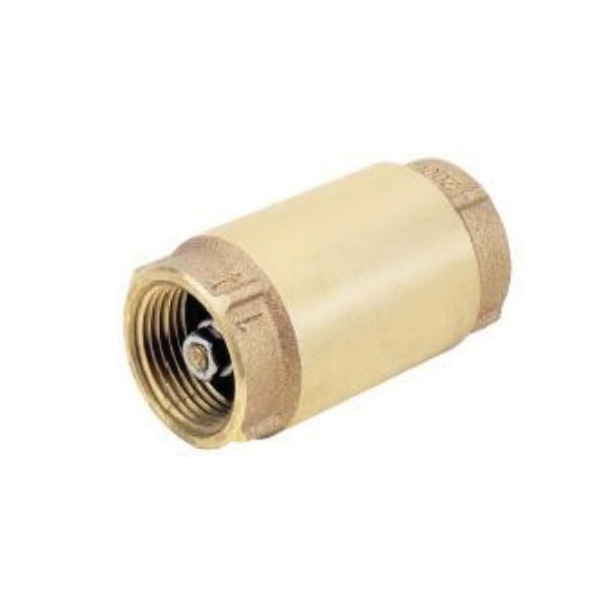

Matco-Norca™ In-Line Check Valve, Series: 525TLF, 1 in Nominal, Thread End Style, 200 psi CWP Pressure, 180 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 3.23 in Inlet to Outlet Length, Bronze Body, Bronze Trim, Buna-N® O-Ring Softgoods, 1.77 in H Dimensions, Import
| Series | : | 525TLF |
| Nominal Size | : | 1 in |
| End Style | : | Thread |
| Pressure Rating | : | 200 psi CWP |
| Temperature Rating | : | 180 deg F |
| Low Lead Compliance | : | Yes |
| Actuator Type | : | Spring-Loaded Latch-Lock Handle |
| Inlet to Outlet Length | : | 3.23 in |
| Body Material | : | Bronze |
| Trim Material | : | Bronze |
| Softgoods Material | : | Buna-N® O-Ring |
| Dimensions | : | 1.77 in H |
| Domestic/Import | : | Import |
- 0.5 psi cracking pressure
- This product complies with 0.25% weighted average lead content on wetted surfaces in accordance with the safe drinking water act (SDWA)/federal public law no. 111-380
Specification Sheet
The 525TLF Inline Check Valve is a reliable solution for controlling the flow in plumbing systems. Crafted from lead-free brass, it meets high-quality standards, ensuring both durability and environmental safety. With a pressure rating of 200 PSI (Non Shock) and a low 0.5 crack pressure, this spring-loaded valve is suitable for various applications. The threaded ends comply with ASME B1.20.1 standards, facilitating easy installation, and it is NSF-61 approved. Available in sizes ranging from 1/2" to 2", this valve provides efficient and safe flow control with a temperature rating of 180°F.
