Series 315-M2 Steam Safety Relief Valves are used in commercial and industrial applications for low-pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, a top-guided stem, and a non-stick PTFE disc-to-metal seating. ASME Section IV at 15psi (103 kPa) set point.

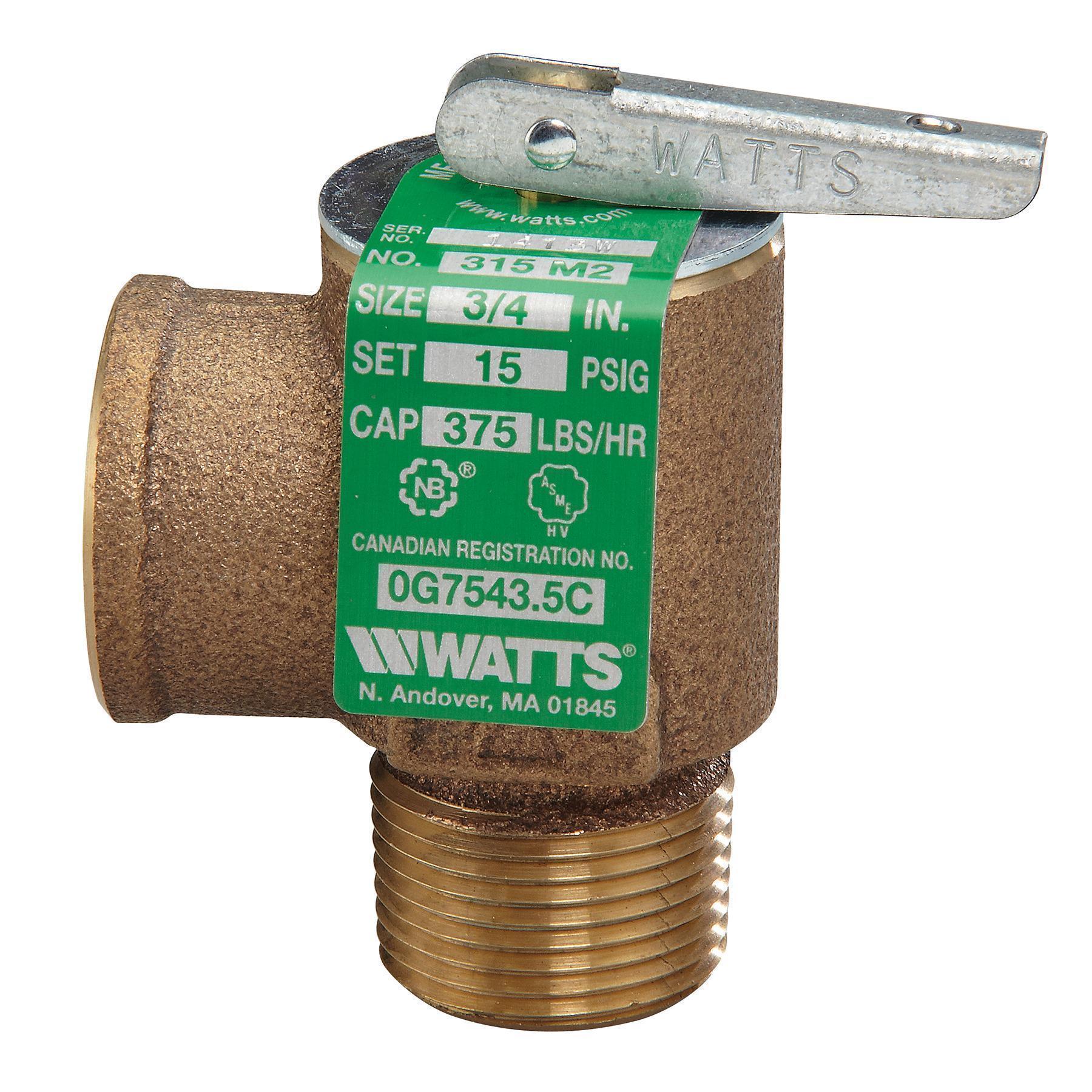

WATTS® Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT, 15 psi, Media: Steam, Bronze Body, Bronze Seat, 2-3/4 in H, Domestic
Nominal Size
|
:
|
3/4 in
|
End Style
|
:
|
MNPT x FNPT
|
Pressure Rating
|
:
|
15 psi
|
Media
|
:
|
Steam
|
Body Material
|
:
|
Bronze
|
Softgoods Material
|
:
|
Bronze Seat
|
Dimensions
|
:
|
2-3/4 in H
|
Domestic/Import
|
:
|
Domestic
|
- High capacity
- Positive shut off
- Non-sticking PTFE® disc
- Seat located above drain
- NPT threaded male inlet x threaded female outlet (drain) connection
- Bronze seating
- Stainless steel spring
- This device is designed for emergency safety relief and shall not be used as an operating control
-
