Zurn® Z6003-WS1-YB-YC 10236
Send Print

Zurn® Z6003-WS1-YB-YC

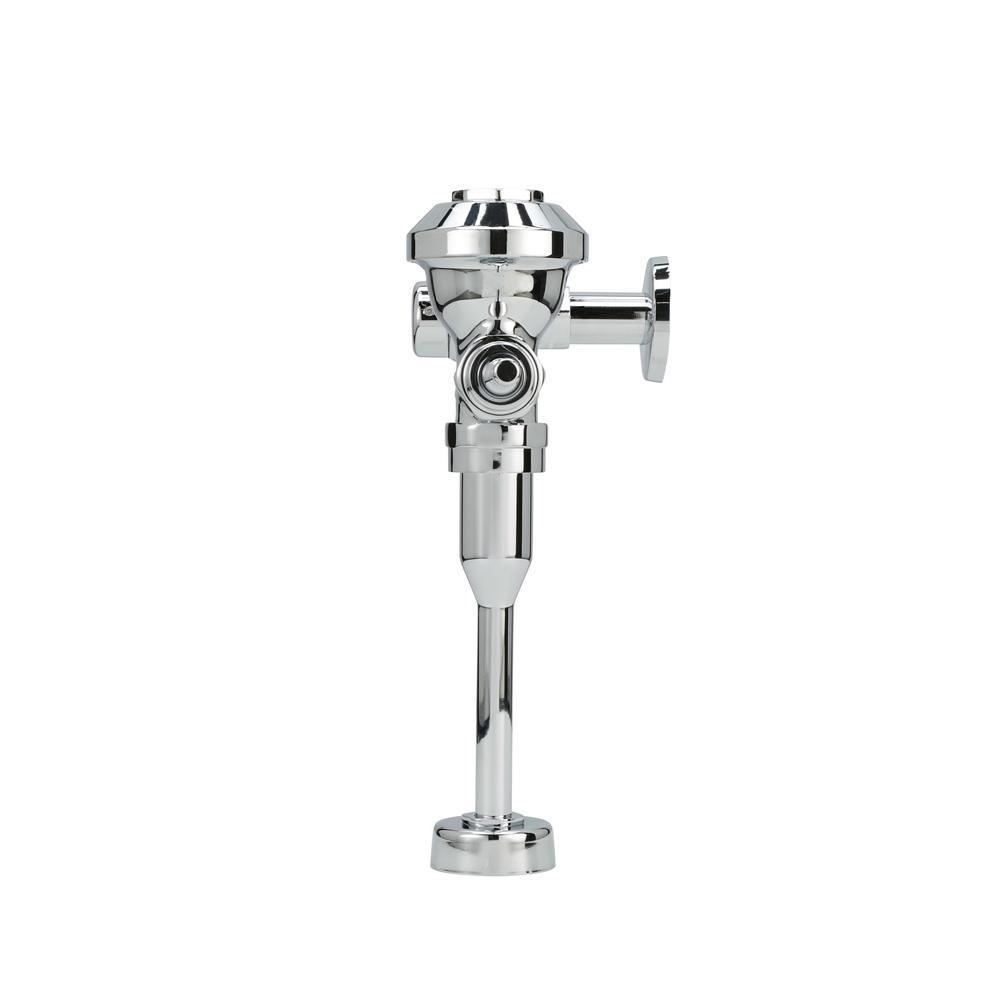

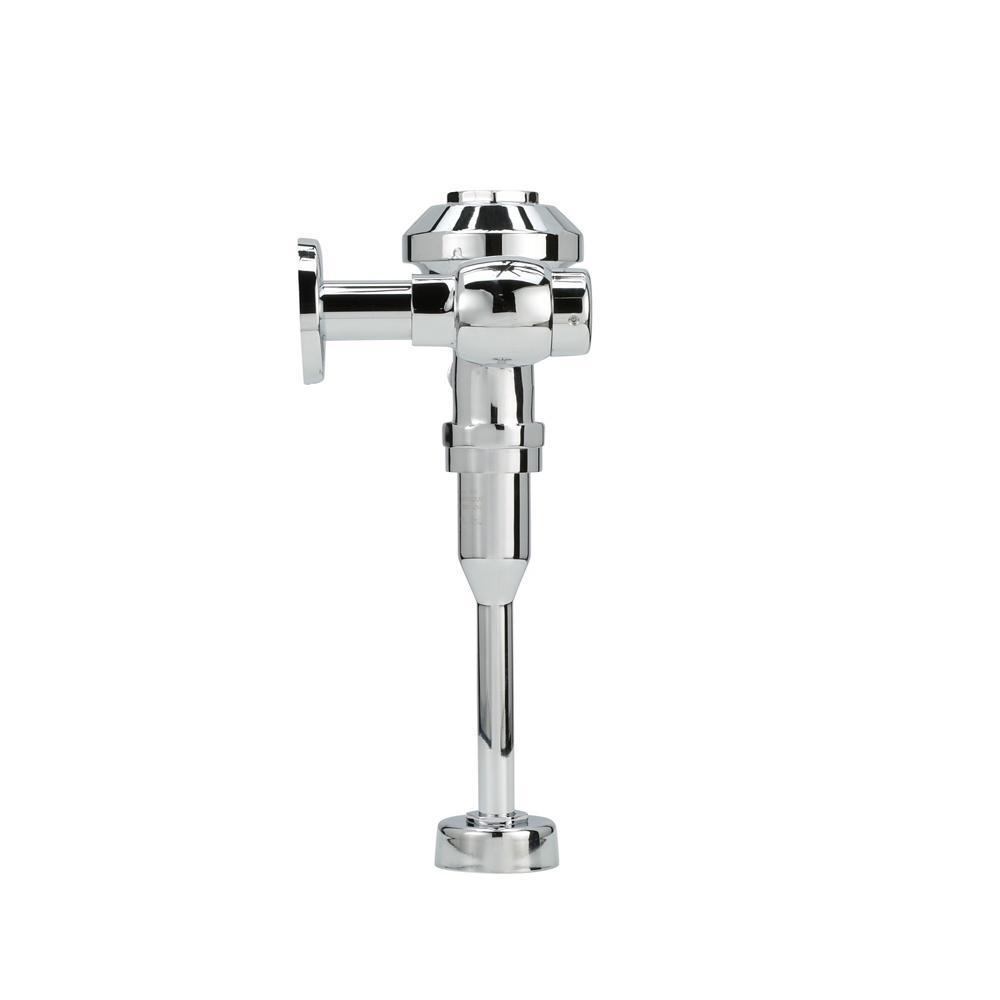

Zurn® Aquaflush® Z6003-WS1-YB-YC Exposed Flush Valve, 1 gpf Flush Rate, 3/4 in Inlet, 10 to 100 psi Pressure, Polished Chrome

  • MPN: Z6003-WS1-YB-YC
  • TPN: 10236
  • UPC: 670240410688
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Zurn® Aquaflush® Exposed Flush Valve, Series: Z6003, 3/4 in Urinal Fixture, 1 gpf Flush, 3/4 in Inlet, Triple Filter Diaphragm Valve Design, Connection Location: Top Spud, 10 to 100 psi Pressure, Non-Hold Open Handle, Polished Chrome

Series      :      Z6003
Fixture Type      :      3/4 in Urinal
Flush Rate      :      1 gpf
Inlet Size      :      3/4 in
Valve Design      :      Triple Filter Diaphragm
Connection Location      :      Top Spud
Pressure Rating      :      10 to 100 psi
Finish/Color      :      Polished Chrome
  • Clog-resistant triple filter diaphragm
  • Chemical resistant gaskets and seals for extended service life with lower maintenance costs
  • Manual ADA compliant handle with no-leak seal technology
  • Internal seals are made of chloramine resistant materials
  • WS1: low consumption flush
  • YB: sweat solder kit
  • YC: cast wall flange
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Z6000-YB-YC_Installation_Manual.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Z6003-EWS-YB-YC_Catalog.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Z6003WS1HLYBYC_Specification_Sheet.pdf

Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with a chloramine resistant, dual seal diaphragm with a clog resistant by-pass. The valve is ADA compliant with a non-hold-open and no leak handle feature, high back pressure vacuum breaker, one-piece hex coupling nut, adjustable tailpiece, spud coupling and flange for top spud connection. Control stop has internal siphon-guard protection. Internal seals are made of chloramine resistant materials.
