Sloan® 3082653 10215
Send Print

Sloan® 3082653

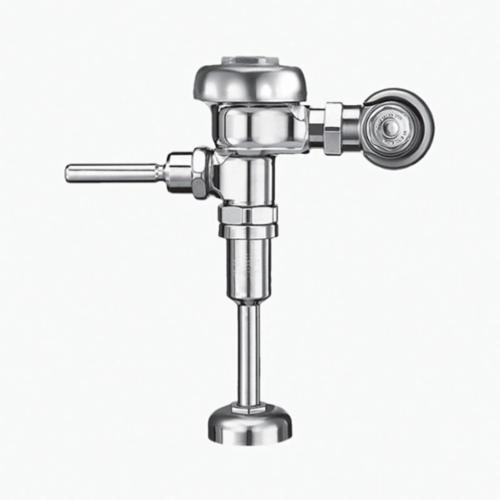

Sloan® 3082653 186 Single-Flush Manual Exposed Flushometer, 1.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

  • MPN: 3082653
  • TPN: 10215
  • UPC: 671254123496
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Sloan®, 3082653, Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 1.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Type      :      Single-Flush
Series      :      186
Fixture Type      :      Urinal
Flush Rate      :      1.5 gpf
Inlet Size      :      3/4 in IPS
Spud Coupling      :      3/4 in
Rough-In Size      :      11-1/2 in
Valve Design      :      Diaphragm
Connection Location      :      Top Spud
Pressure Rating      :      15 to 80 psi
Handle Style      :      Non-Hold Open Oscillating
Material      :      Semi-Red Brass
Finish/Color      :      Polished Chrome
Domestic/Import      :      Domestic
  • Flush volumes start as low as 0.5 gpf/1.9 Lpf
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
  • Low Consumption flush accuracy controlled by Para-Flo™ technology
  • Integrity of the product is maintained with control stop plug
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
