Powers™ 6550030 31685
Send Print

Powers™ 6550030

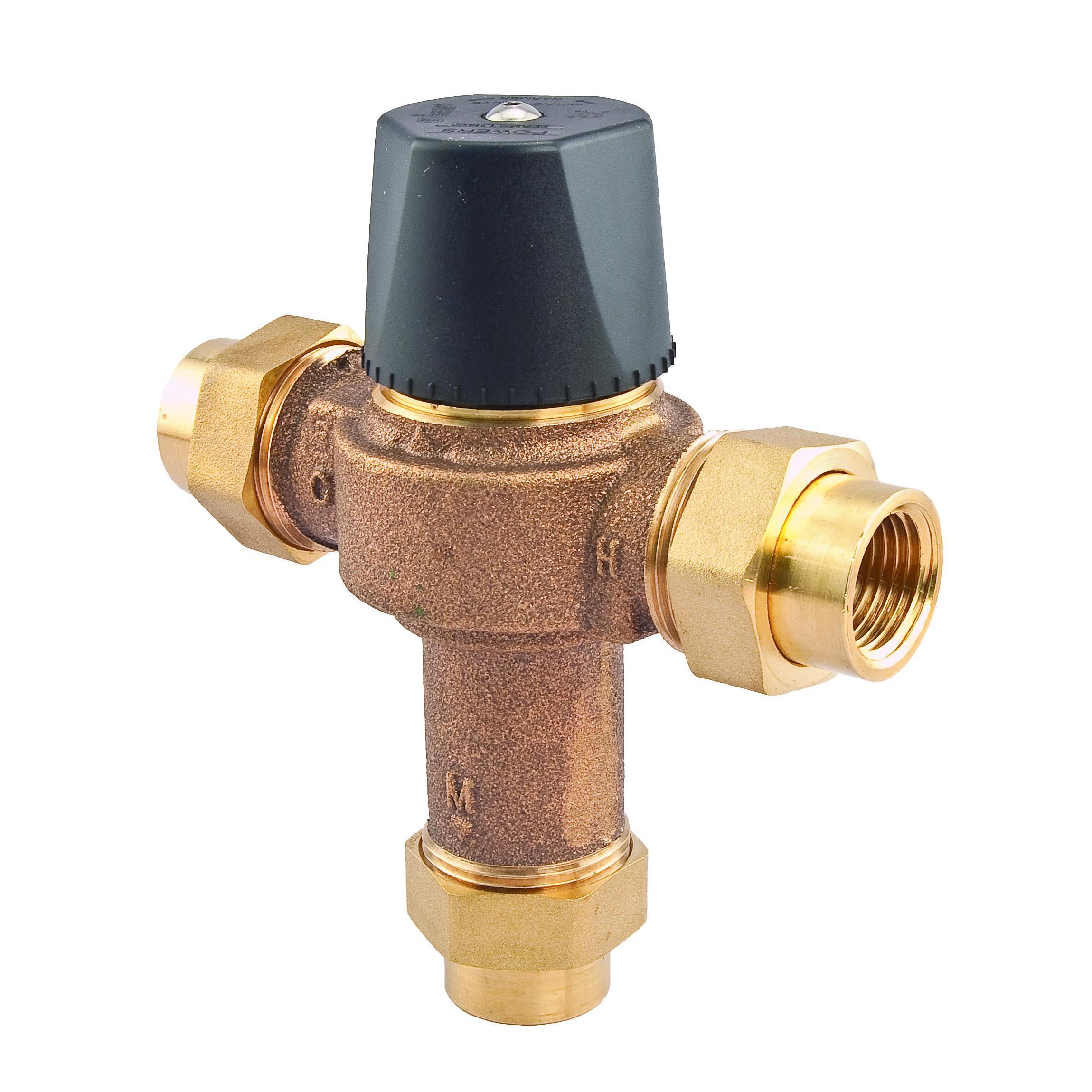

Powers™ 6550030 Lavatory Tempering Valve, 1/2 in Nominal, FNPT End Style, 125 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

  • MPN: 6550030
  • TPN: 31685
  • UPC: 686408614447
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Powers™ Lavatory Tempering Valve, Lead Free, 1/2 in Nominal, FNPT, 125 psi, 4-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, 5-7/16 in W, Domestic

Nominal Size      :      1/2 in
End Style      :      FNPT
Pressure Rating      :      125 psi
Inlet to Outlet Length      :      4-7/8 in
Body Material      :      Cast Copper Silicon Alloy
Dimensions      :      5-7/16 in W
Domestic/Import      :      Domestic
  • Corrosion resistant internal components
  • Integral checks and inlet screens to prevent cross-flow and contamination
  • Temperature adjustment handle has a locking mechanism to prevent tampering
  • Polysulfone plunger for extended life
  • Advanced thermal actuator improves performance at low flow
  • Adjustable temperature selection with lock down
  • Union connections for easy maintenance
  • Solid brass construction for enhanced durability
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Powers_6550033_Installation_Manual.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Powers_6550038_Catalog.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Watts_Water_6550030_Specification_Sheet.pdf

This 1/2 in HydroGuard (R) lead free under the counter thermostatic tempering valve is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. It features a rugged brass body, union NPT female connections, lock-in handle mechanism, paraffin-based actuator, integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature operating range is 80 to 120 degrees F (27 to 49 degrees C) and the maximum operating pressure is 125 PSI (862 kPa).
