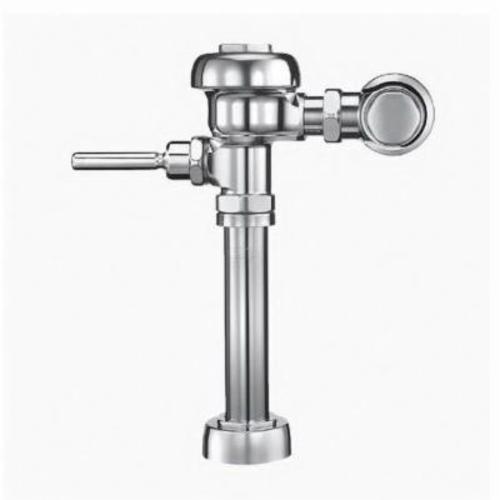

Sloan® Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 10 to 100 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Type
|
:
|
Single-Flush
|
Series
|
:
|
111
|
Fixture Type
|
:
|
Water Closet
|
Flush Rate
|
:
|
1.28 gpf
|
Inlet Size
|
:
|
1 in IPS
|
Spud Coupling
|
:
|
1-1/2 in
|
Rough-In Size
|
:
|
11-1/2 in
|
Valve Design
|
:
|
Diaphragm
|
Connection Location
|
:
|
Top Spud
|
Pressure Rating
|
:
|
10 to 100 psi
|
Handle Style
|
:
|
Oscillating Non-Hold Open
|
Material
|
:
|
Semi-Red Brass
|
Finish/Color
|
:
|
Polished Chrome
|
Domestic/Import
|
:
|
Domestic
|
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CIDâ„¢ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece accommodates different height requirements
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered by-pass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
-
Data/Spec Sheet
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3780018_Specification_Sheet_1.pdf
-
Instruction/Installation Manual
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Sloan_3772407_Manual.pdf
-
Instruction/Installation Manual
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3780018_Manual.pdf
-
Instruction/Installation Sheet
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3780018_Installation_Sheet.pdf
-
Specification Sheet
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Sloan_3780018_Specification_Sheet.pdf
-
Specification Sheet
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sloan_3780018_Specification_Sheet.pdf
