An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.

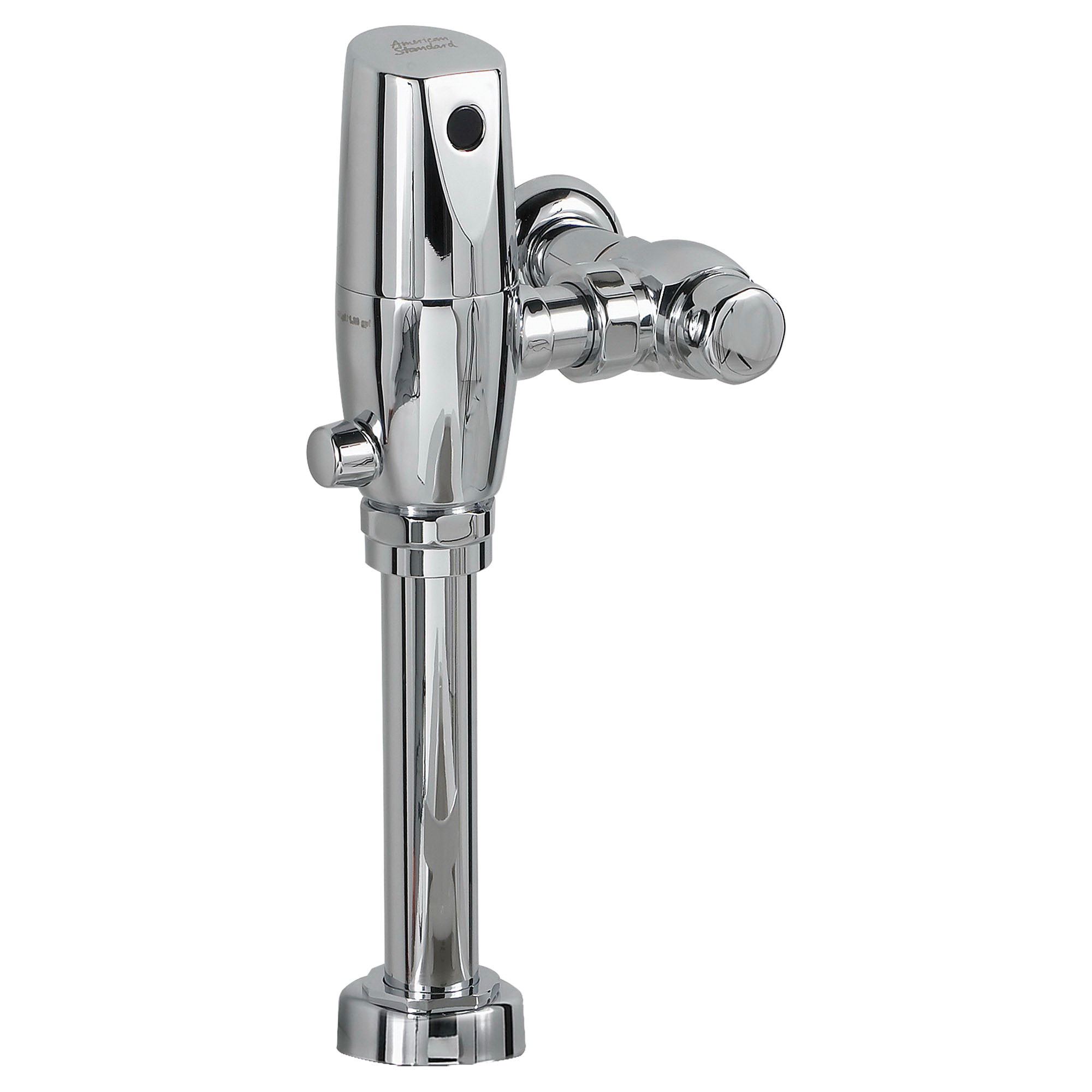

American Standard Toilet Flush Valve, Base Model Exposed, Selectronic® Collection, Toilet Fixture, 1.28/1.1 gpf Flush, 11-1/2 in Rough-In, Piston Operated Valve Design, 20 psi Flowing/80 psi Static Pressure, Semi-Red Brass, Polished Chrome, Import
Type
|
:
|
Base Model Exposed
|
Collection
|
:
|
Selectronic®
|
Fixture Type
|
:
|
Toilet
|
Flush Rate
|
:
|
1.28/1.1 gpf
|
Rough-In Size
|
:
|
11-1/2 in
|
Valve Design
|
:
|
Piston Operated
|
Pressure Rating
|
:
|
20 psi Flowing/80 psi Static
|
Material
|
:
|
Semi-Red Brass
|
Finish/Color
|
:
|
Polished Chrome
|
Domestic/Import
|
:
|
Import
|
- Self-cleaning piston eliminates routine maintenance
- No diaphragms to replace or filter screens to clean
- Integral wiper spring cleans the refill orifice with every flush
- Delivers reliable operation even with poor water quality
- Hygienic, touch-free operation
- Flexible Selectronic® platform with programmable sensor
- Fully mechanical manual override - allows valve to flush during a power failure
- Fail-safe - valve automatically closes on loss of power or water pressure
- CR-P2 lithium battery installed in the valve 4 years battery life
- Can be installed left or right hand
- This high efficiency 1.28 gpf flush valve saves 20% of water usage when matched with the 1.28 gpf Afwall® or Madera HET's
- Electronic flush valve with Selectronic® proximity system for hands-free operation
- Positive seal ensures leak-free performance
- Sanitary flush valve automatically flushes after 24 hr of non-use to maintain trap seal
- State-of-the-Art electronics are immune to outside light
- Watertight design ensures dependable performance
- Range can be adjusted without tools (manually or by remote control)
- Electronic, sensor activated toilet flush valve shall feature self-cleaning piston valve with integral wiper spring in refill orifice to prevent clogging
- Includes a factory-installed CR-P2 lithium battery and fully mechanical manual override that can flush the valve without power
- Sweat solder kit and high back pressure vacuum breaker also included
-
