BrassCraft® G2CR19X C 43007
Send Print

BrassCraft® G2CR19X C

BrassCraft® G2CR19X C G2™ 1/4 Turn Angle Stop, 1/2 x 3/8 in Nominal, Compression, 125 psi, Brass Body, Polished Chrome, Domestic

  • MPN: G2CR19X C
  • TPN: 43007
  • UPC: 026613135069
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 60/PK
  • Login to see Availability

BrassCraft® Angle Stop, 1/4 Turn, Series: G2™, 1/2 x 3/8 in Nominal, Compression End Style, 125 psi Pressure, Media: Water, Brass Body, C36000 Brass Trim, Santoprene Stem Barrel/Rubber O-Ring Softgoods, 40 to 140 deg F, 1.02 x 2.16 in Dimension, Polished Chrome, Domestic

Type      :      1/4 Turn
Series      :      G2™
Nominal Size      :      1/2 x 3/8 in
End Style      :      Compression
Pressure Rating      :      125 psi
Media      :      Water
Body Material      :      Brass
Trim Material      :      C36000 Brass
Softgoods Material      :      Santoprene Stem Barrel/Rubber O-Ring
Temperature Rating      :      40 to 140 deg F

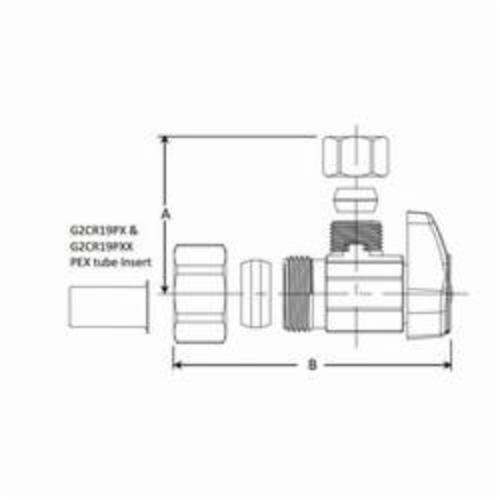

Dimensions      :      1.02 x 2.16 in
Domestic/Import      :      Domestic
  • Positive 1/4 turn shut-off
  • Full flow operation with no waterway obstructions
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F
  • Push connect technology
  • No special installation tools required
  • For use with Copper, PEX and CPVC
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_OR1512AX_C_Manual.pdf

Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.
