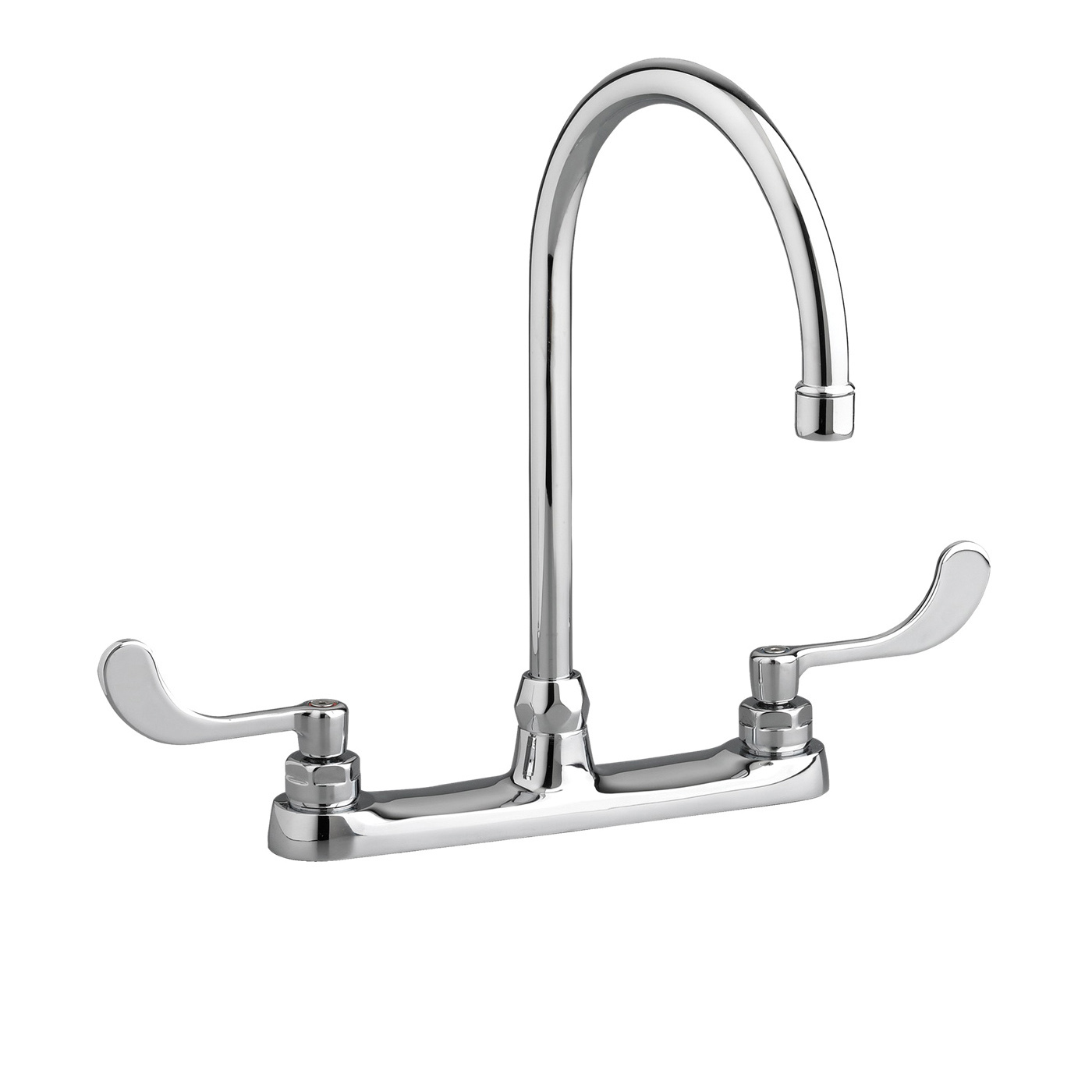

American Standard, 6409170.002, Monterrey® Collection, 1.5 gpm Flow Rate, Gooseneck Spout, 8 in Spout Reach, 8-1/8 in Spout Height, Wrist Blade Handle, 2 Handles, Side Spray(Y/N): No, 3 Faucet Holes, 1-3/8 in Maximum Deck Thickness, Deck Mounting, Ceramic Disc, 13-3/8 in H Dimensions, Brass, Polished Chrome, Import
| Collection | : | Monterrey® |
| Flow Rate | : | 1.5 gpm |
| Spout Type | : | Gooseneck |
| Spout Reach | : | 8 in |
| Spout Height | : | 8-1/8 in |
| Handle Style | : | Wrist Blade |
| Number of Handles | : | 2 |
| Number of Faucet Holes | : | 3 |
| Maximum Deck Thickness | : | 1-3/8 in |
| Mounting Type | : | Deck |
| Valve/Cartridge Type | : | Ceramic Disc |
| Dimensions | : | 13-3/8 in H |
| Material | : | Brass |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Import |
- Ceramic disc valves assure drip free for life performance
- Solid brass construction for durability and long life
- Vandal-resistant lever or wrist blade handles with red blue indexed handles
- Water conserving 1.5 gpm pressure-compensating aerator
- Field convertible rigid
- Top mount faucet
- 8 in height to outlet
- Lead free: faucet contains less than or equal to 0.25% total lead content by weighted average
-
Data/Spec Sheet-1
-
Instruction/Installation Manual
-
Instruction/Installation Manual
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/American_Standard_6409_170_002_Manual.pdf
-
Instruction/Installation Sheet
-
Specification Sheet
-
Specification Sheet
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/American_Standard_6409_170_002_Specification_Sheet.pdf
Field-Convertible Rigid / Swivel Gooseneck Spout: 8" reach, 13-3/8" overall height, 8" height to outlet Ceramic Disc Valves assure drip-free for life performance Solid Brass Construction for durability & long lifeVandal-Resistant Lever or Wrist Blade Handles with Red / Blue indexesWater Conserving 1.5 gpm Pressure-Compensating AeratorLead-Free: Contains less than or equal to 0.25% total lead content by weighted averageSustainabilityCEC ListedCALGreen Compliant5 Year Limited Warranty for Commercial Installations
