American Standard 6047121.002 21518
Send Print

American Standard 6047121.002

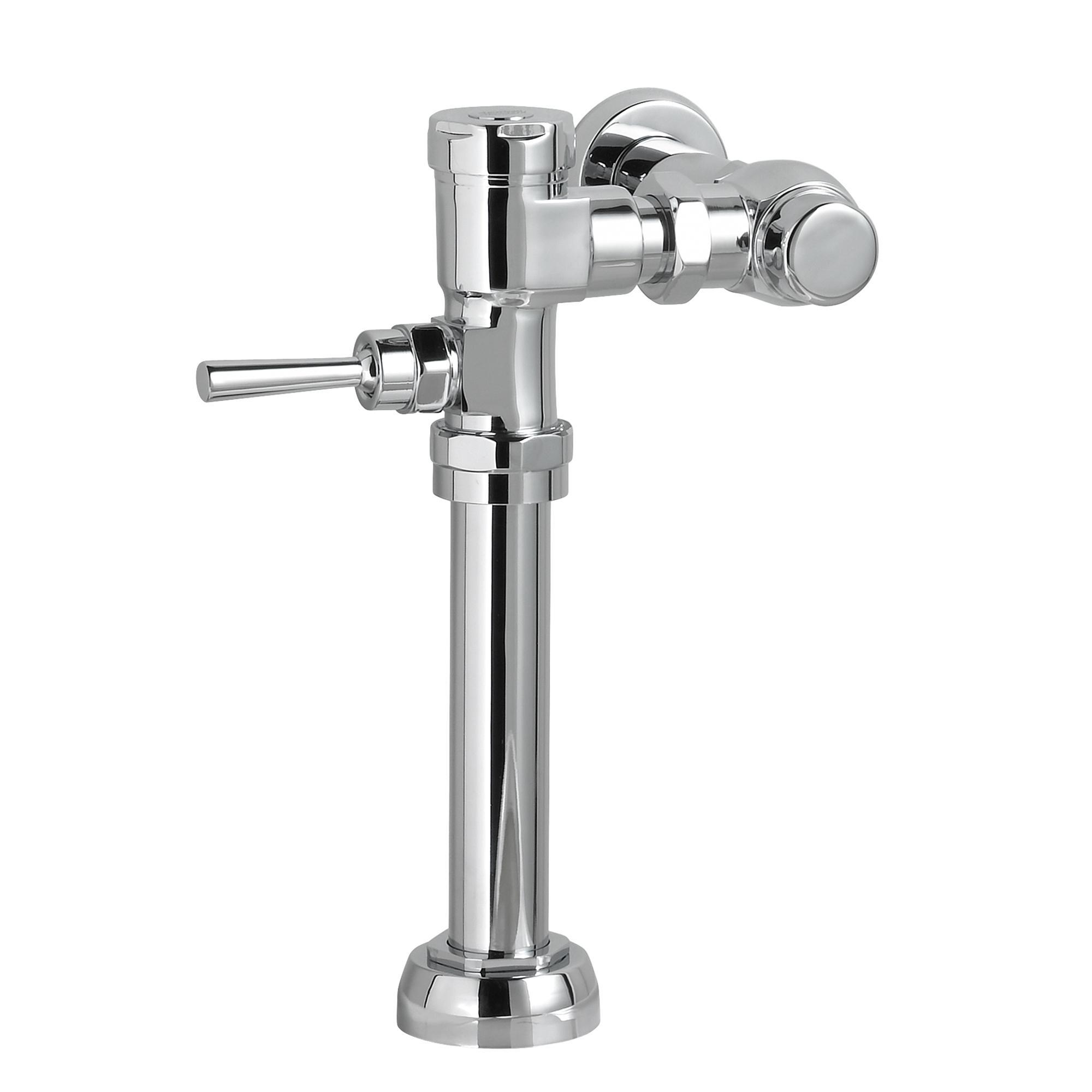

American Standard 6047121.002 Manual Exposed Toilet Flush Valve, Manual Piston Flush Valve, Battery, 1 gpf Flush Rate, 3/4 in Spud, 20 psi Flowing/80 psi Static Pressure, Polished Chrome, Import

  • MPN: 6047121.002
  • TPN: 21518
  • UPC: 012611465376
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

American Standard, 6047121.002, Exposed Toilet Flush Valve, Manual, Manual Piston Flush Valve Collection, Urinal Fixture, Battery Power Source, 1 gpf Flush, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Connection Location: Top Spud, 8 to 48 in Sensor, 20 psi Flowing/80 psi Static Pressure, Gear Actuator Handle, Brass, Polished Chrome, Import

Type      :      Manual
Collection      :      Manual Piston Flush Valve
Fixture Type      :      Urinal
Power Source      :      Battery
Flush Rate      :      1 gpf
Inlet Size      :      1 in
Spud Coupling      :      3/4 in
Rough-In Size      :      11-1/2 in
Valve Design      :      Piston Operated
Connection Location      :      Top Spud
Sensor Range      :      8 to 48 in
Pressure Rating      :      20 psi Flowing/80 psi Static
Handle Style      :      Non-Hold Open
Material      :      Brass
Finish/Color      :      Polished Chrome
Domestic/Import      :      Import
  • Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
  • Piston operation delivers superior flush accuracy and repeatability
  • Piston valve remains closed and does not need to be reset after loss of water pressure
  • Non-hold open handle shuts automatically after every flush
  • Positive seal ensures leak-free performance
  • No external volume adjustment
  • Durable polished chrome cast brass construction is ideal for commercial applications
  • Chloramine-resistant EPDM seal
  • Adjustable tailpiece for rough-in flexibility
  • Top spud placement
  • Manual urinal flush valve shall feature self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging
  • Valve remains closed and does not need to be reset after loss of water pressure
  • Includes cast brass valve body and cover with chrome finish and Vandal-resistant stop cap

An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time-saving maintenance and care.
