Sloan® 3912648

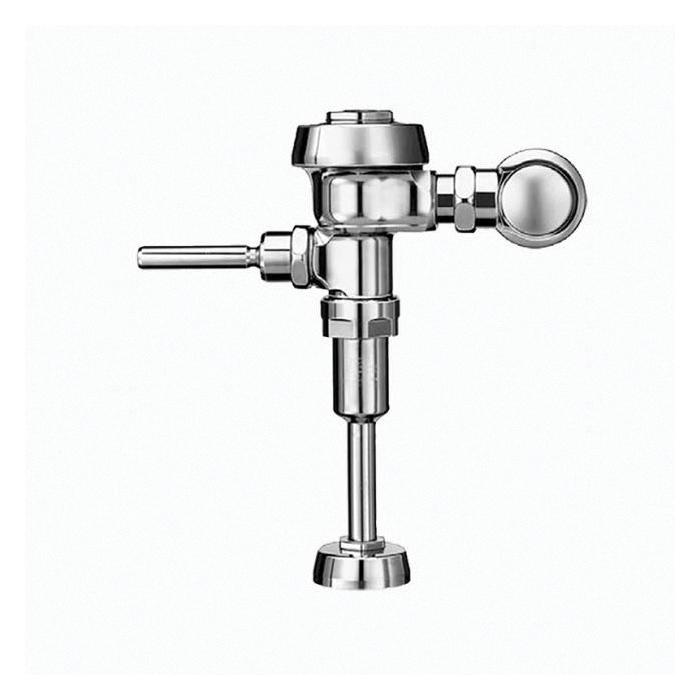

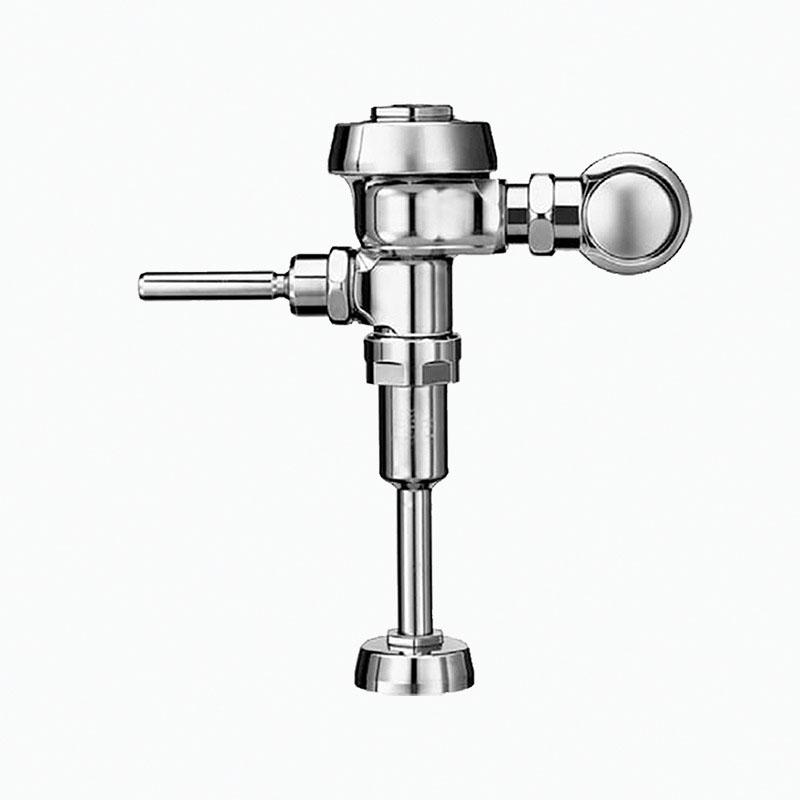

Sloan® 3912648 186 Single-Flush Manual Exposed Flushometer, 0.25 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

  • MPN: 3912648
  • TPN: 60904
  • UPC: 671254346741
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Sloan®, 3912648, Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.25 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Type      :      Single-Flush
Series      :      186
Fixture Type      :      Urinal
Flush Rate      :      0.25 gpf
Inlet Size      :      3/4 in IPS
Spud Coupling      :      3/4 in
Rough-In Size      :      11-1/2 in
Valve Design      :      Diaphragm
Connection Location      :      Top Spud
Pressure Rating      :      15 to 80 psi
Handle Style      :      Non-Hold Open Oscillating
Material      :      Semi-Red Brass
Finish/Color      :      Polished Chrome
Domestic/Import      :      Domestic
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
