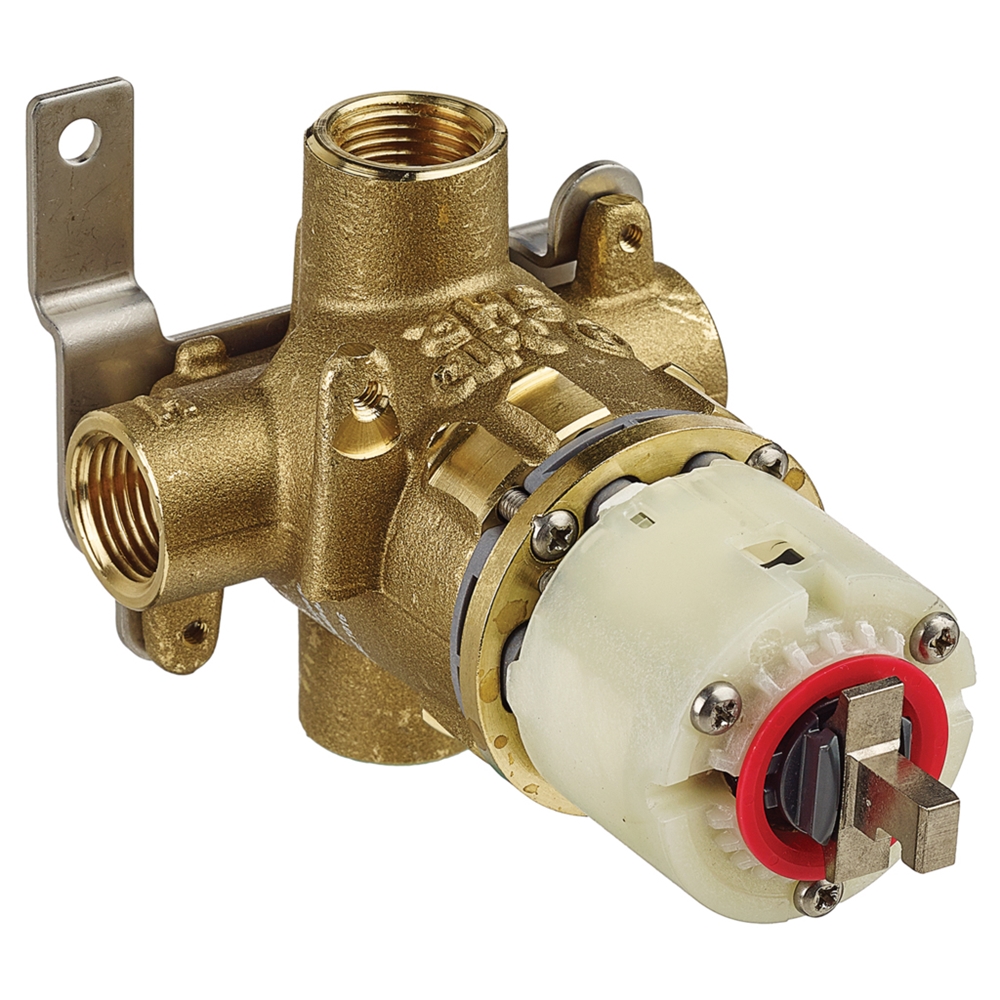

American Standard Pressure Balance Rough-In Valve Body, 1/2 in C x 1/2 in NPT Inlet Connection, 1/2 in C x 1/2 in NPT Outlet, For Use With: Colony® Soft/Green Tea®/Moments®/Portsmouth®/Princeton™/Quentin™/Reliant® 3/Studio™/Town Square® Trim Kit, Wall Mounting, Cast Brass Body, 5-7/8 in L x 4-1/16 in H Dimensions, Import
| Suitable For Use With | : | Colony® Soft/Green Tea®/Moments®/Portsmouth®/Princeton™/Quentin™/Reliant® 3/Studio™/Town Square® Trim Kit |
| Dimensions | : | 5-7/8 in L x 4-1/16 in H |
| Domestic/Import | : | Import |
- Ceramic disc valve cartridge assures a lifetime of drip-free performance and allows easy fine tuning of temperature (125 deg handle rotation from off to hot)
- Pressure balancing valve cartridge - maintains constant output temperature in response to changes in hot and cold supply pressure, diaphragm system engineered to eliminate cross flow, avoids failure due to mineral deposits, ideal for use in hard water
- Diaphragm system engineered to eliminate cross flow, avoids failure due to mineral deposits, ideal for use in hard water
- Back-to-back capability hot and cold can be reversed quickly and easily
- Adjustable hot limit safety stop limits the amount of hot water allowed to mix with the cold to help reduce the risk of accidental scalding

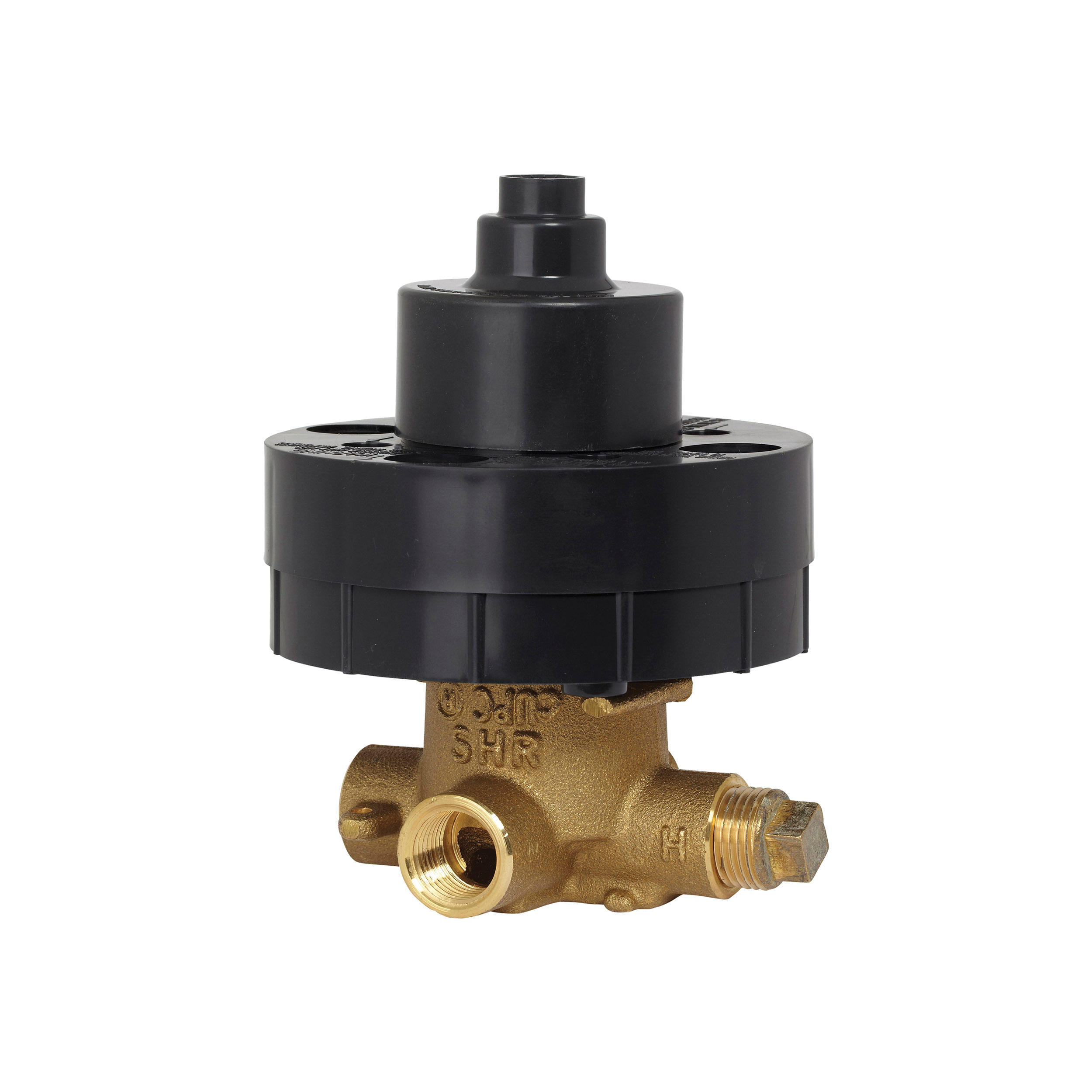

- Exclusive plaster guard is plaster guard is designed to protect valve during installation and serve as a mounting plate for thin-wall installations, two-piece design allows valve to be tested prior to trim installation
- 1-5/8 in to 3-1/4 in W rough-in
- Without trim
- Cast brass valve body is durable quality that will last a lifetime and ideal material for prolonged contact with water
