WATTS® 0063232

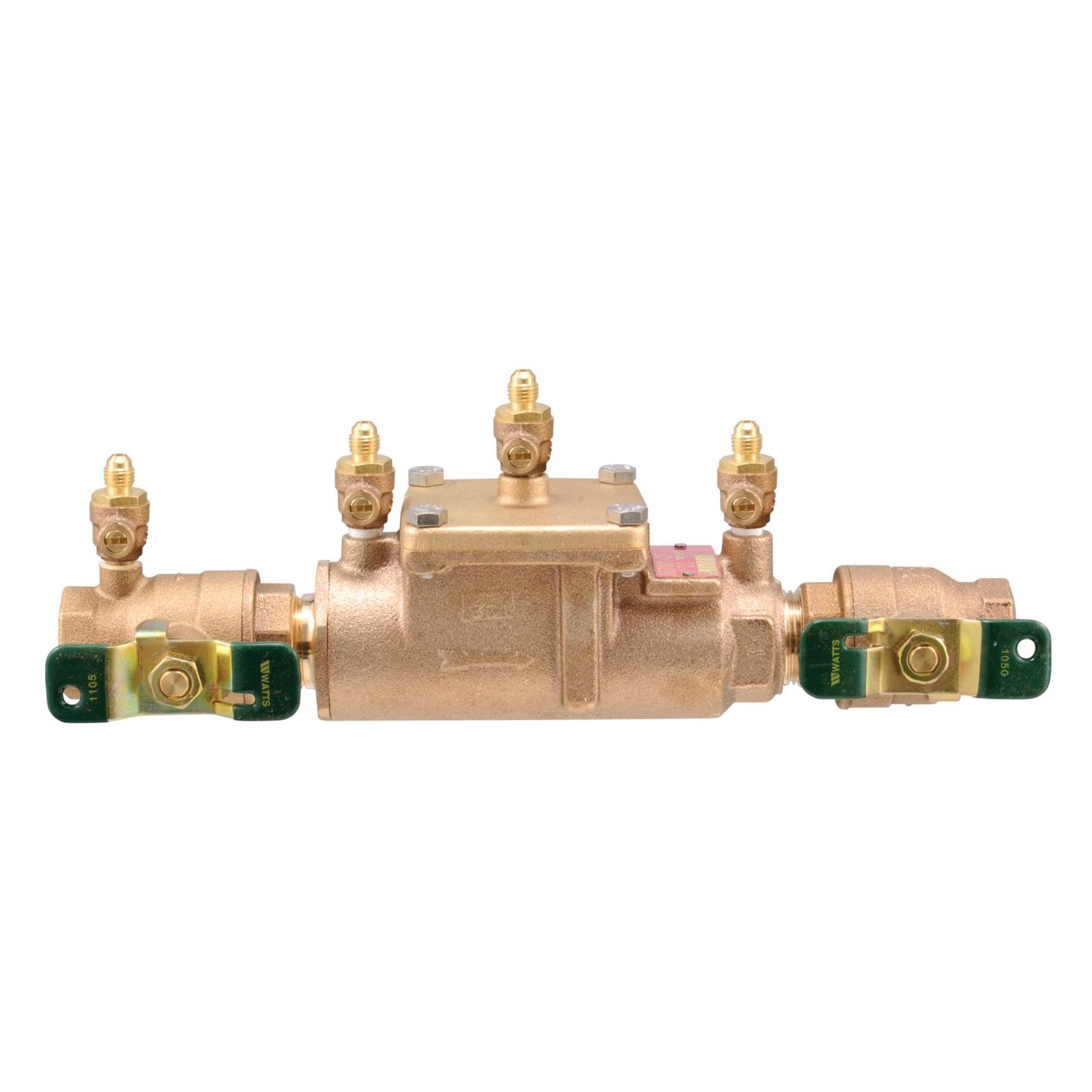

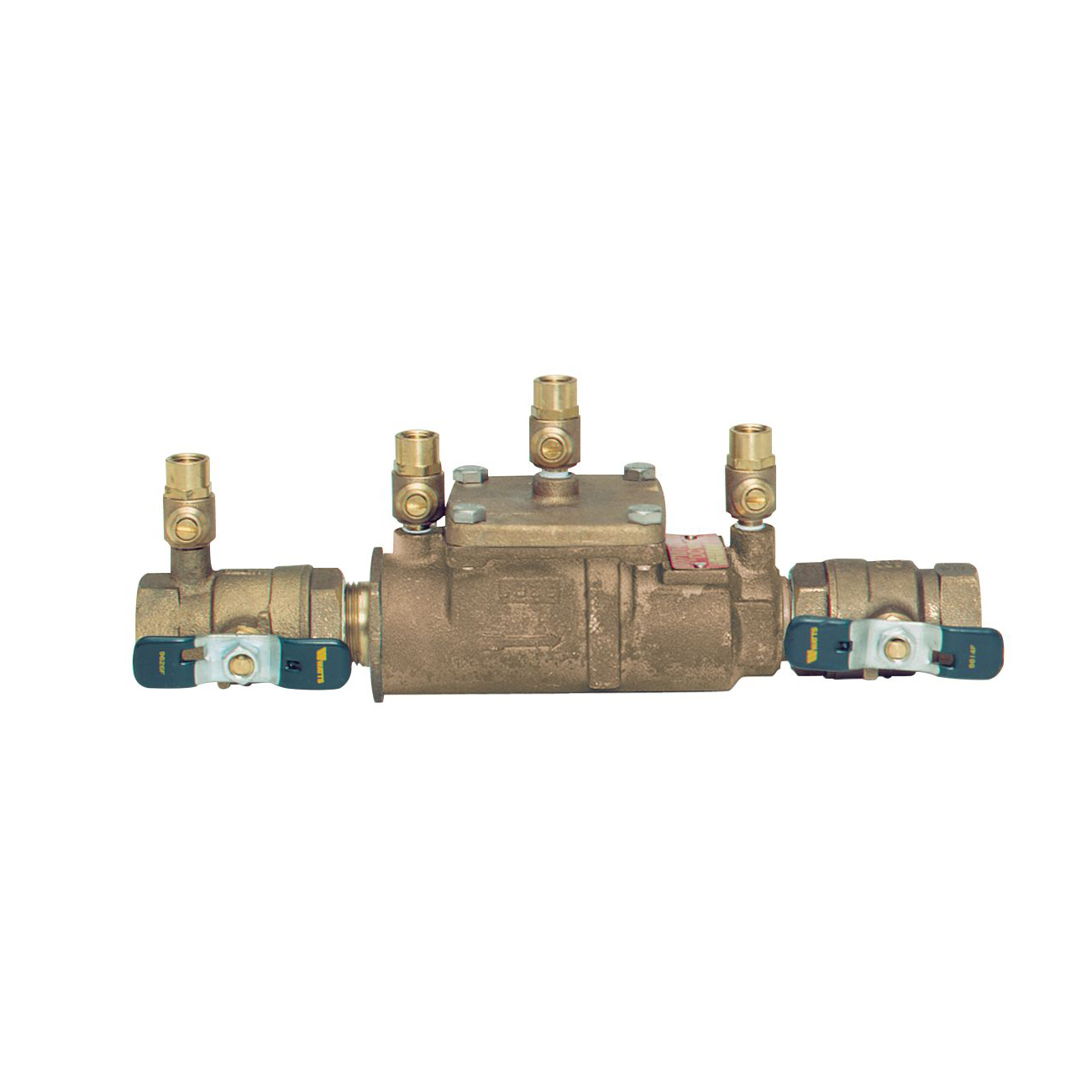

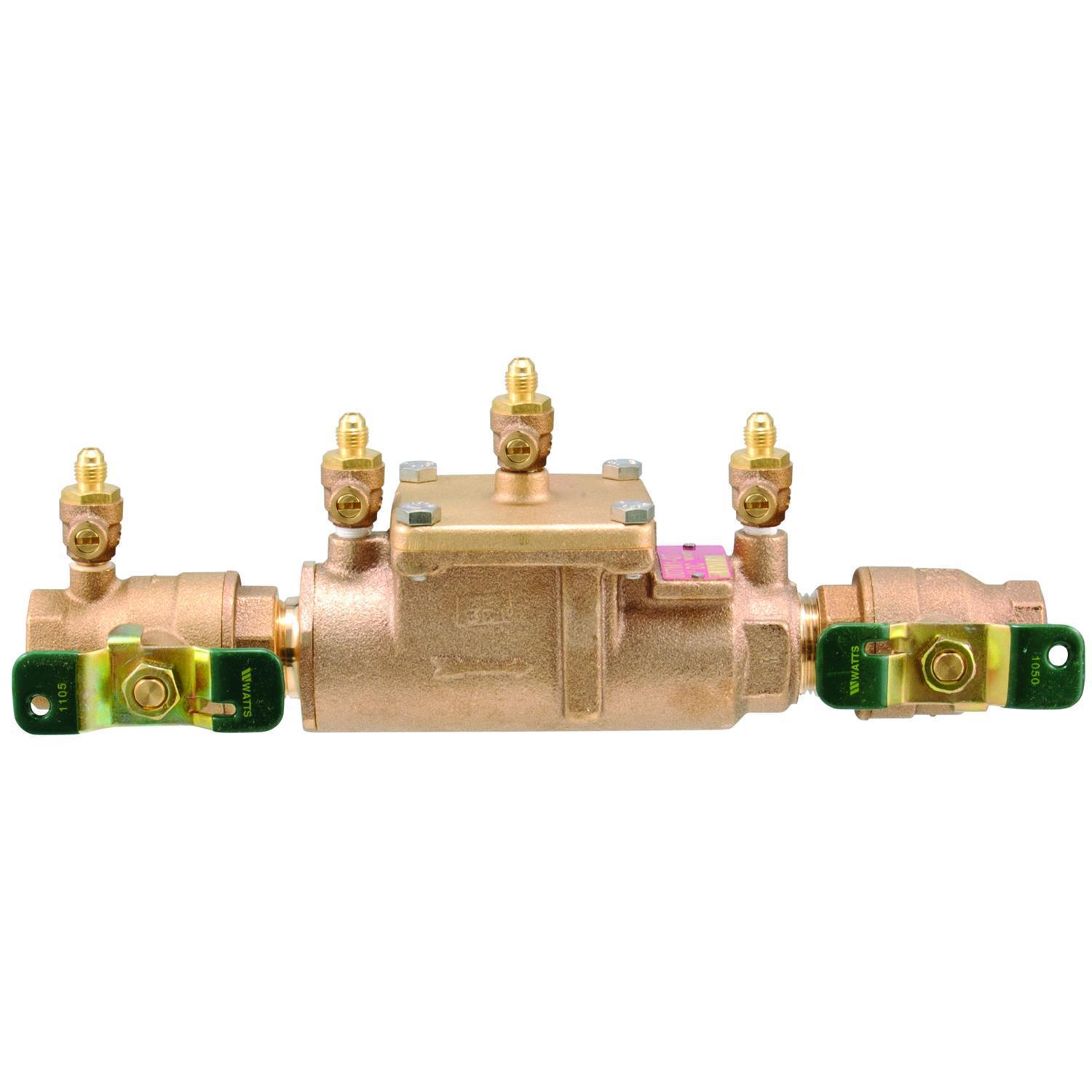

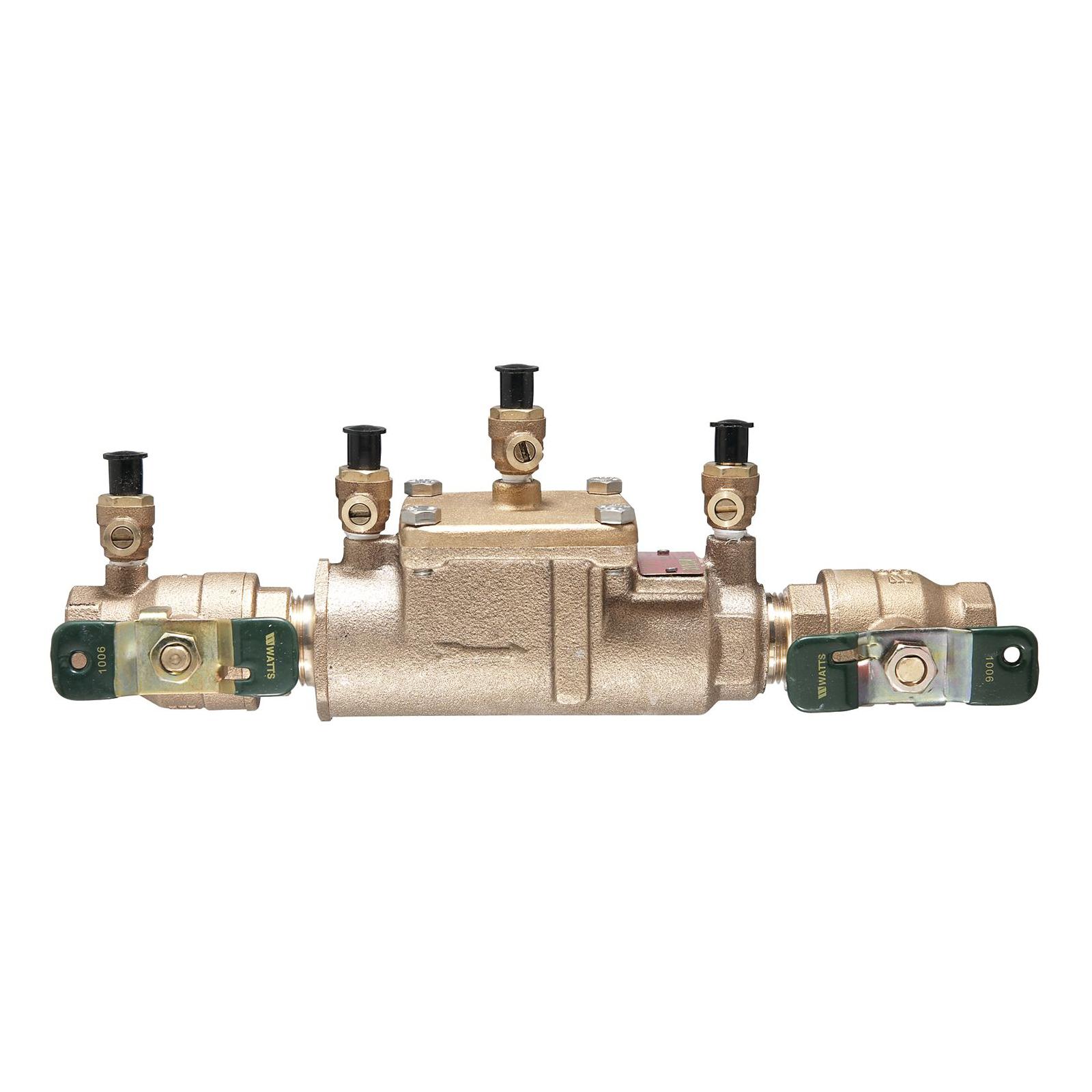

WATTS® 0063232 LF007 Double Check Valve Assembly, 1 in Nominal, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

  • MPN: 0063232
  • TPN: 43530
  • UPC: 098268209747
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 1/CTN
  • Login to see Availability

WATTS®, 0063232, Double Check Valve Assembly, Series: LF007, 1 in Nominal, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Cast Copper Silicon Alloy Body, Fused Epoxy Coated, Domestic

Series      :      LF007
Nominal Size      :      1 in
Pressure Rating      :      175 psi
Temperature Rating      :      33 to 180 deg F
Ball Valve/Gate Valve Type      :      Quarter-Turn Ball Valve
Body Material      :      Cast Copper Silicon Alloy
Finish      :      Fused Epoxy Coated
Domestic/Import      :      Domestic
  • Ease of maintenance only one cover
  • Replaceable seat and discs
  • Modular design
  • Low pressure drop
  • Top mounted resilient seated test cocks
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0122617_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0122617_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0122617_Specification_Sheet.pdf

Series LF007 Lead Free Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a Lead Free cast copper silicon alloy (1/2 to 2 in) or fused epoxy coated cast iron (2-1/2 to 3 in) body construction that is easy to maintain and service. Series LF007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.
